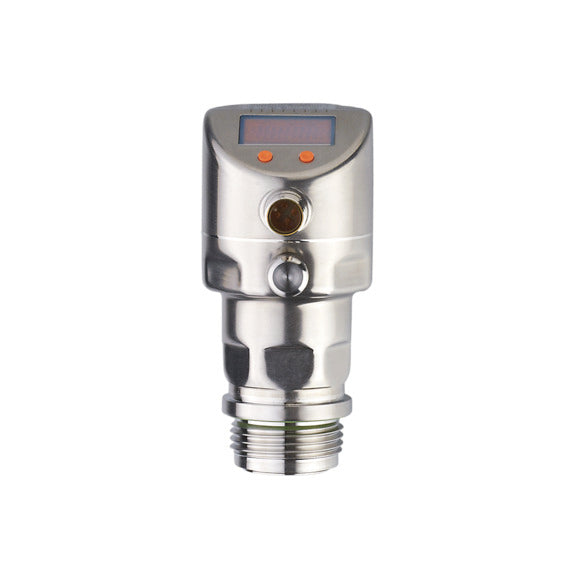

IFM PI2794 Flush Pressure Sensor with Display — hygienic flush G1 Aseptoflex, -1...10 bar, display, 2 outputs, IO-Link. flush hygienic pressure sensor with red/green display, -1...10 bar, G1 Aseptoflex Vario flush connection, ceramic cell, 2 switching outputs plus analog and IO-Link, 316L stainless, no dead space, IP69K.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: PI2794
Also known as: IFM PI2794 pressure sensor / pressure transmitter / pressure switch.
PI2794 Applications
The IFM PI2794 flush pressure sensor is designed for the food and beverage industry, with a hygienic dead-space-free G1 Aseptoflex connection resistant to high-pressure cleaning. Display, analog output and IO-Link support process pressure control.
What is the measuring range of the IFM PI2794 flush pressure sensor?
The PI2794 measures -1...10 bar (-14.5...145 psi / -0.1...1 MPa).
What is the overpressure capability of the PI2794?
The PI2794 has a pressure rating of 50 bar (5 MPa) and a burst pressure of 150 bar (2175 psi / 15 MPa).
What media can the PI2794 handle and what is its accuracy?
The PI2794 handles viscous media and liquids with suspended particles, as well as liquids and gases. Its switch point accuracy is < ± 0.2 % of span and repeatability is < ± 0.1 % of span (both at turn down 1:1).
What are the response times of the IFM PI2794?
The PI2794 has a response time of 45 ms for the 2-wire analogue output and 3 ms for the 3-wire switching output.
What outputs and IO-Link does the PI2794 support?
The PI2794 has 2 digital outputs and 1 analogue output. The analogue current output is 4...20 mA, invertible and scalable; the digital outputs are PNP/NPN and normally open/normally closed (parameterisable). It supports IO-Link revision 1.0 at COM2 (38.4 kBaud) with SIO mode.
What is the operating voltage of the PI2794?
In 2-wire operation the PI2794 runs on 20...32 V DC with 3.6...21 mA consumption; in 3-wire operation it runs on 18...32 V DC with < 45 mA. It has reverse polarity protection.
What are the wetted materials and IP rating of the IFM PI2794?
The PI2794 uses stainless steel (316L/1.4404), FKM, PTFE, PBT, PEI, and PFA, with wetted parts of ceramics (99.9% Al2O3) and stainless steel (316L/1.4435). It is rated to IP 67, IP 68, and IP 69K.
What process connection makes the PI2794 suitable for food and beverage applications?
The PI2794 has a G 1 external thread with Aseptoflex Vario sealing contour and is flush mountable with no dead space, making it suitable for the food and beverage industry. Its medium temperature range is -25...125 °C (145 °C max 1 h), and it has a 4-digit alphanumeric display.
