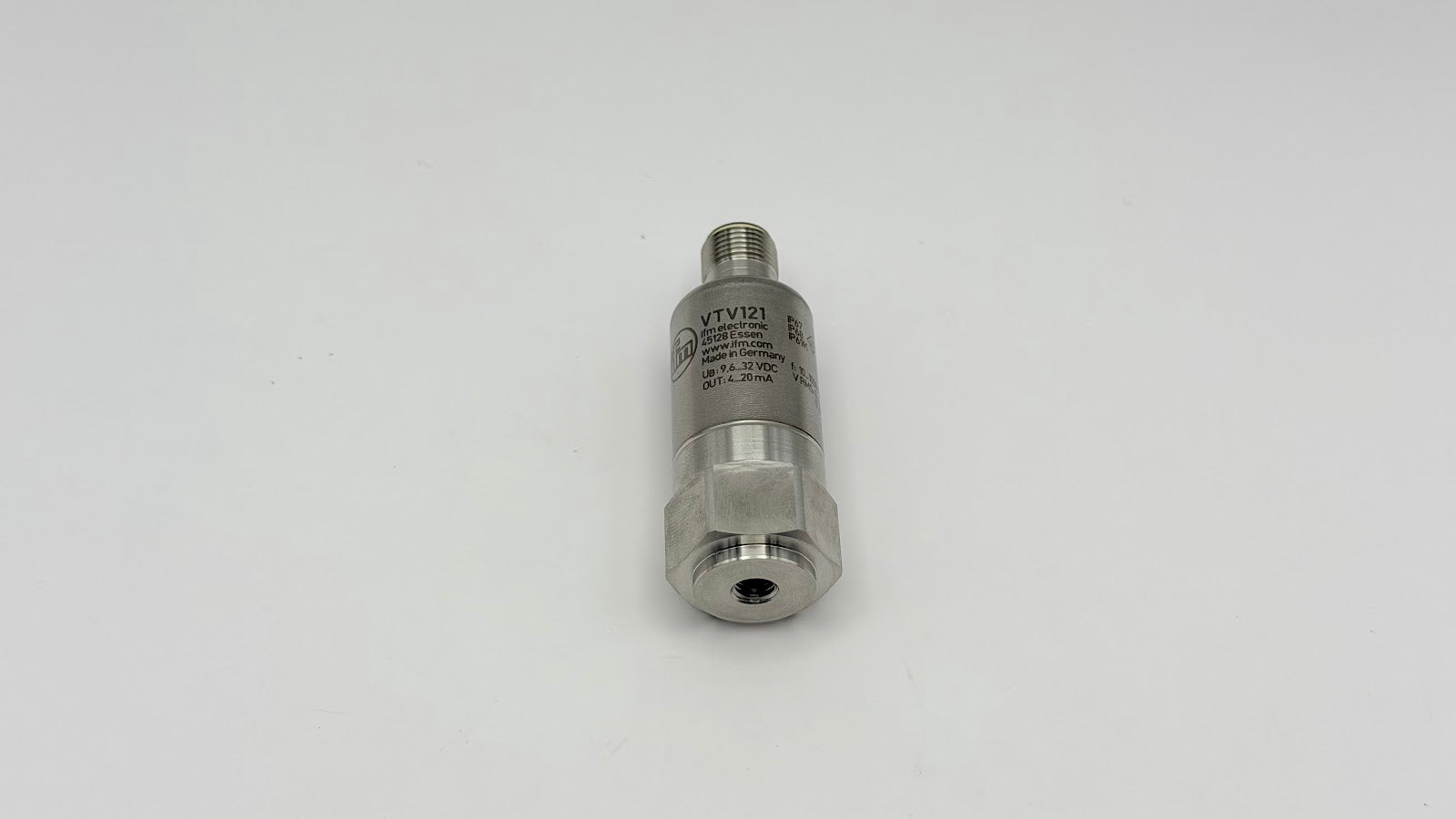

IFM VTV121 - Vibration Transmitter, 0...50 mm/s RMS, 4...20 mA

Q: What does the IFM VTV121 measure?

The IFM VTV121 measures effective vibration velocity (RMS) to ISO 10816 over a range of 0...50 mm/s, for condition monitoring of rotating machinery.

Q: What is the frequency range of the IFM VTV121?

The IFM VTV121 has a frequency range of 10...1000 Hz.

Q: What output signal does the IFM VTV121 provide?

The IFM VTV121 provides a proportional 4...20 mA analogue current output in 2-wire technology.

Q: What operating voltage does the IFM VTV121 need?

The IFM VTV121 operates on a supply voltage of 9.6...32 V DC.

Q: How is the IFM VTV121 mounted?

The IFM VTV121 is mounted with a set screw (1/4"-28 UNF / M8 x 1.25 mm) at a tightening torque of 8 Nm.

Q: What is the housing material and protection rating of the IFM VTV121?

The IFM VTV121 has a stainless steel (316L / 1.4404) housing rated IP 67, IP 68 and IP 69K.

Q: What is the ambient temperature range of the IFM VTV121?

The IFM VTV121 operates over an ambient temperature range of -30...125 °C.

Q: How accurate is the IFM VTV121?

The IFM VTV121 has a measuring error of less than ± 3 % of the final value, using a MEMS sensing element.

SKUVTV121BrandIFM

AED 1,034.00

Sale Sold out

Shipping calculated at checkout.

Only 5 left

Quantity

IFM VTV121 Vibration Transmitter — 2-wire MEMS vibration transmitter to ISO 10816 with stainless steel housing. 0...50 mm/s RMS, ISO 10816, 10...1000 Hz, 4...20 mA, 2-wire, 9.6...32 V DC, IP 69K.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: VTV121

Also known as: IFM VTV121 vibration sensor / vibration transmitter / accelerometer.

VTV121 Applications

The VTV121 is a vibration transmitter to ISO 10816 for continuous condition monitoring of rotating machinery such as pumps, fans and motors. Using a MEMS sensing element, it measures effective vibration velocity (RMS) from 0...50 mm/s over a 10...1000 Hz frequency band and outputs a proportional 4...20 mA signal in 2-wire technology. Its rugged 316L stainless steel housing, IP 69K protection and wide -30...125 °C temperature range make it suitable for harsh industrial environments and permanent installation.

VTV121 Specifications

Brand	IFM	Product Type	Vibration transmitter to ISO 10816.
IFM Type Code	VTV121-01	Measuring range	0...50 mm/s (RMS)
Standard	ISO 10816	Frequency range	10...1000 Hz
Measured variable	vibration velocity (RMS)	Measuring principle	MEMS
Output signal	4...20 mA (analogue current)	Electrical design	2-wire
Operating voltage	9.6...32 V DC	Measuring error	< ± 3 % of final value
Process connection	set screw 1/4"-28 UNF / M8 x 1.25 mm, tightening torque 8 Nm	Connection	M12 connector, A-coded
Housing material	stainless steel (316L / 1.4404)	Protection rating	IP 67 / IP 68 / IP 69K
Ambient temperature	-30...125 °C
