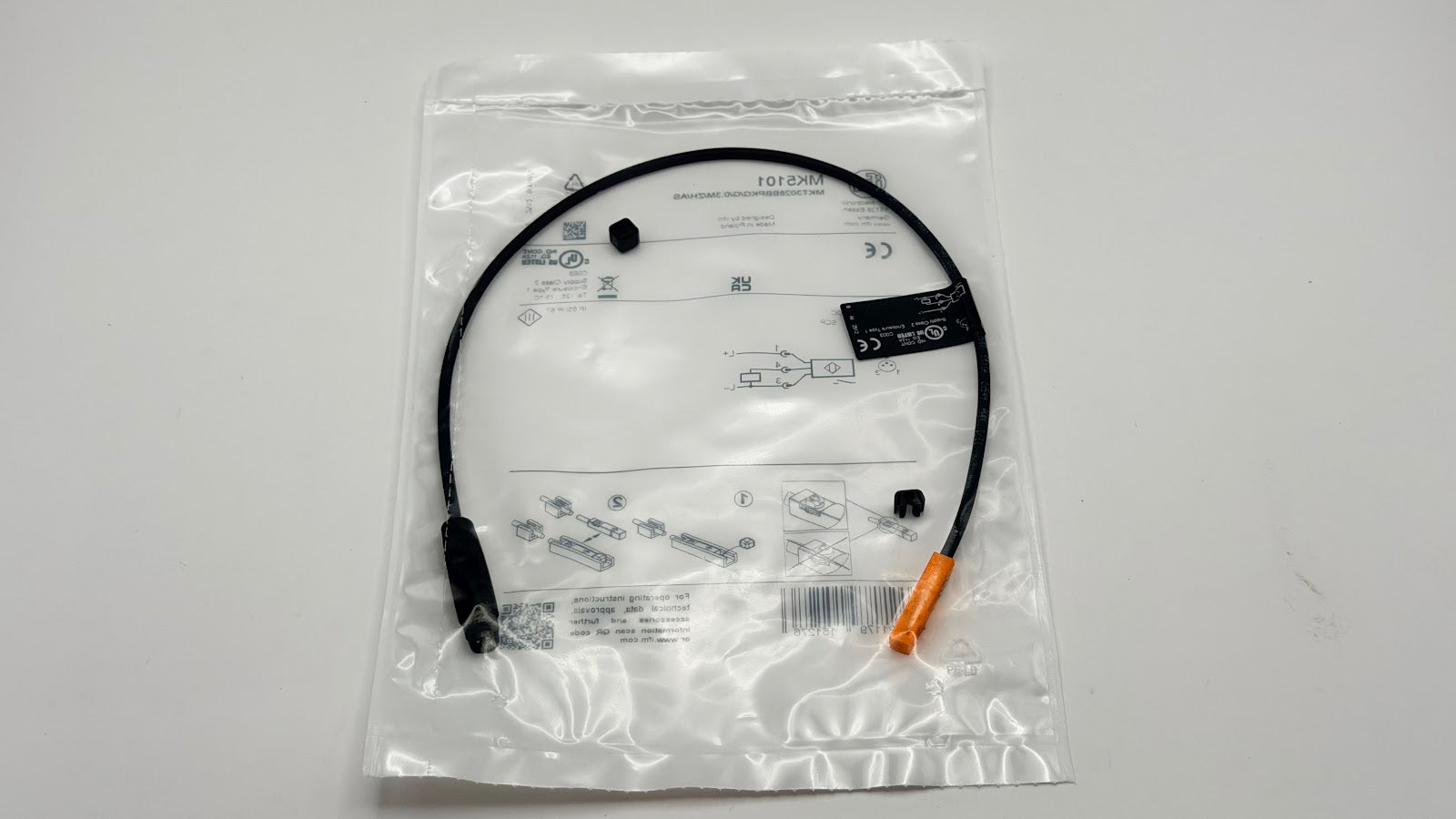

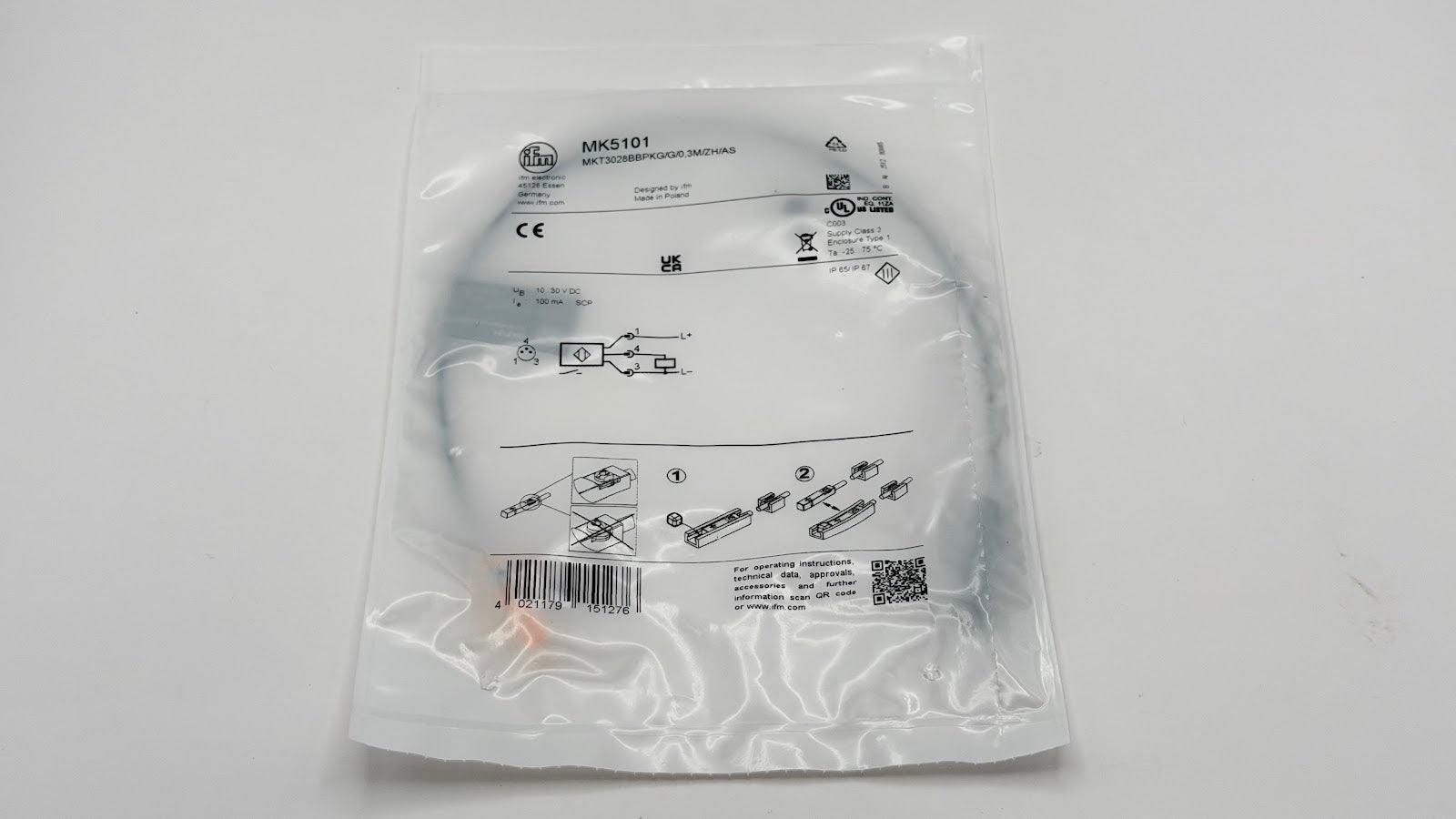

IFM MK5101 - T-Slot Cylinder Sensor, T-Slot, PNP NO

IFM MK5101 - T-Slot Cylinder Sensor, T-Slot, PNP NO

SKUMK5101BrandIFM
AED 137.00
AED 137.00
Sale Sold out
Shipping calculated at checkout.

Only 5 left

IFM MK5101 T-Slot Cylinder Sensor — magnetic T-slot cylinder sensor, drop-in fixture, PNP NO, 0.3 m cable + M8. magnetic T-slot cylinder position sensor, drop-from-top self-locking fixture, PNP normally open, very high 10 kHz switching frequency, 0.3 m cable with M8 connector, IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: MK5101

Also known as: IFM MK5101 cylinder sensor / t-slot sensor / magnetic cylinder sensor / piston sensor.

MK5101 Applications

The IFM MK5101 T-slot cylinder sensor detects piston position on pneumatic cylinders, dropping into the slot from the top with a self-locking fixture for quick mounting. Its high switching frequency suits fast pick-and-place actuators.

MK5101 Specifications

Brand IFM Product Type T-slot cylinder sensor
Product type code MKT3028BBPKG/G/0,3M/ZH/AS Cylinder type T-slot
Output PNP normally open Switching frequency 10000 Hz
Operating voltage 10...30 V DC Protection IP 65; IP 67
Connection 0.3 m cable + M8 Weight 12.1 g

MK5101 Datasheet & Manual

Download Datasheet & ManualIFM MK5101 · PDF · Official IFM document

MK5101 – Frequently Asked Questions (FAQ)

How does the IFM MK5101 T-slot cylinder sensor detect the piston?

It is a magnetic sensor for T-slot cylinders with a response sensitivity of 2.8 mT.

What output does the MK5101 provide?

It has a PNP normally open output with a permanent current rating of 100 mA and a maximum voltage drop of 2.5 V.

What is the switching frequency of the MK5101?

The switching frequency is 10000 Hz (DC).

How repeatable is the MK5101?

Repeatability is < 0.2 mm and hysteresis is < 1.5 mm.

What is the operating voltage and current consumption of the MK5101?

The operating voltage is 10...30 V DC and current consumption is < 10 mA.

What is the housing material, IP rating and temperature range of the MK5101?

The housing is PA with a stainless steel fastening clamp, rated IP 65 and IP 67, with an ambient temperature range of -25...85 degrees C.

How is the MK5101 connected?

It has a 0.3 m PUR cable to a 1 x M8 A-coded connector with 3 contacts and snap-fit locking, plus a yellow LED for switching status.

What travel speed and protections does the MK5101 offer?

It is rated for travel speeds > 10 m/s and includes short-circuit and overload protection.
