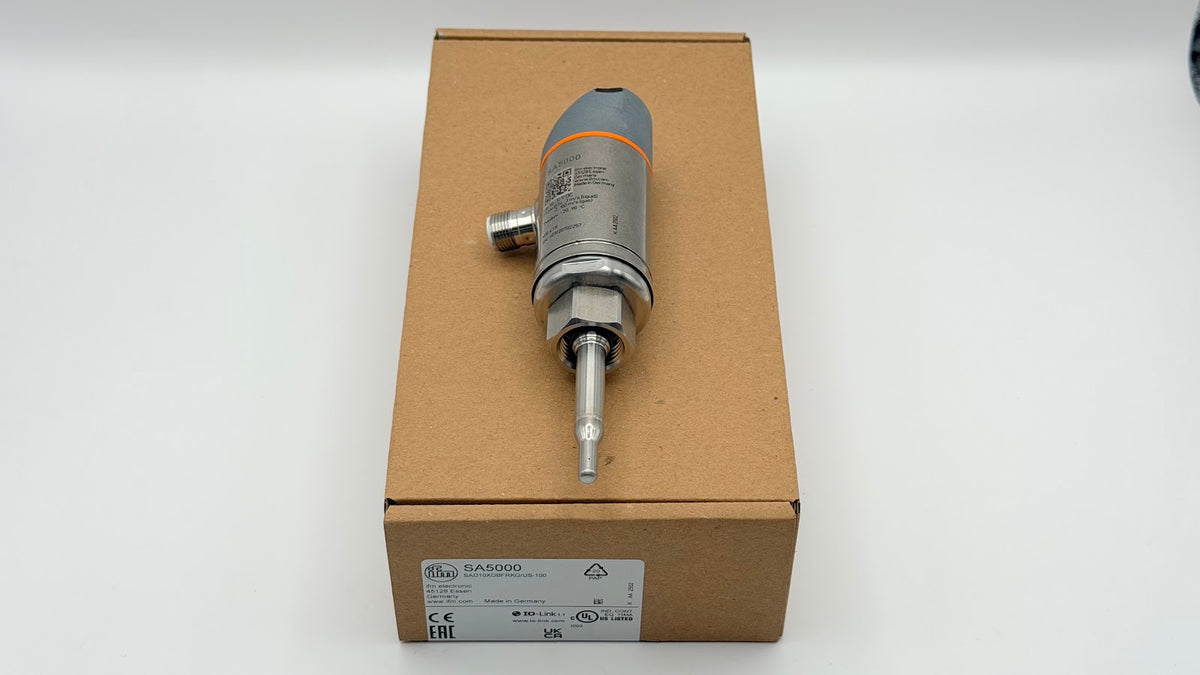

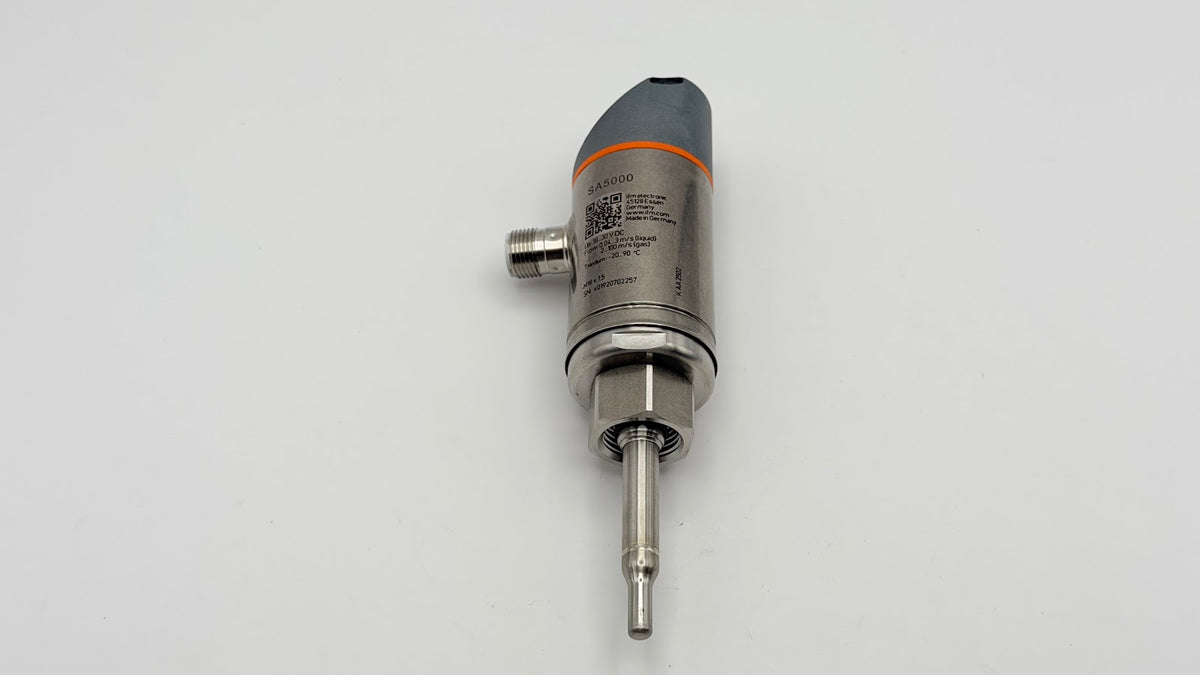

IFM SA5000 - Flow Sensor, Flow + Temperature, IO-Link

SKUSA5000Brandifm

AED 1,293.00

Sale Sold out

Shipping calculated at checkout.

Only 2 left

Quantity

IFM SA5000 Flow Sensor — simultaneous flow and temperature measurement with red/green display, 2 outputs, analog and IO-Link, 100 bar rated. calorimetric flow and temperature measurement for water, oils and air, M18 x 1.5 internal thread, 100 bar rated, red/green display, 2 switching outputs plus analog 4...20 mA and IO-Link, gold-plated contacts, IP65/IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: SA5000

Also known as: IFM SA5000 flow switch / flow meter / flow monitor.

SA5000 Applications

The IFM SA5000 flow sensor measures flow velocity and medium temperature simultaneously in water, glycol, oil and air systems. With its red/green display, analog output and IO-Link, it suits cooling-circuit monitoring, pump and lubrication protection and machine coolant lines. The rotatable process connection and 100 bar rating make installation and alignment straightforward in demanding industrial plant.

SA5000 Specifications

Brand	IFM	Product Type	Flow sensor with display
Product type code	SAD10XDBFRKG/US-100	Measuring principle	Calorimetric
Media	Water; glycol; air; oils	Medium temperature	-20...90 °C
Pressure rating	100 bar (10 MPa)	Process connection	M18 x 1.5 internal thread
Operating voltage	18...30 V DC	Outputs	2 x switching (PNP/NPN); analog; IO-Link
Analog output	4...20 mA (scalable)	Display	Red/green 4-digit alphanumeric
Protection	IP 65; IP 67	Weight	257 g
Electrical connection	M12 connector, A-coded, 4 contacts (gold-plated)

SA5000 Datasheet & Manual

Download Datasheet & ManualIFM SA5000 · PDF · Official IFM document

SA5000 – Frequently Asked Questions (FAQ)

What is the measuring range of the IFM SA5000 flow sensor?

The IFM SA5000 measures liquid flow from 0.04...6 m/s (relative) or 0.04...3 m/s (absolute), and gas flow from 2...200 m/s (relative) or 2...100 m/s (absolute).

What measuring principle does the IFM SA5000 use?

The IFM SA5000 uses the calorimetric measuring principle and also monitors medium temperature over -20...90 degrees C with 0.2 degrees C resolution.

What is the response time and repeatability of the IFM SA5000?

The IFM SA5000 has a response time of 0.5 s in water (0.8 s glycol, 1.8 s oil, 7 s air) and a repeatability of 0.05 m/s in water.

What outputs does the IFM SA5000 offer?

The IFM SA5000 provides 2 digital outputs (switching signal, 250 mA DC) and 1 analogue output (4...20 mA, scalable, max load 350 Ohm), plus frequency signal and IO-Link.

Does the IFM SA5000 support IO-Link?

Yes, the IFM SA5000 supports IO-Link revision 1.1 with COM2 (38.4 kBaud) transmission.

What is the operating voltage and current consumption of the IFM SA5000?

The IFM SA5000 operates on 18...30 V DC and draws less than 100 mA.

What is the IP rating and temperature range of the IFM SA5000?

The IFM SA5000 is rated IP 65 / IP 67, with an ambient range of -40...80 degrees C and a medium temperature range of -20...90 degrees C.

What process and electrical connections does the IFM SA5000 use?

The IFM SA5000 has an M18 x 1.5 internal thread process connection and an M12 A-coded 4-contact gold-plated connector.
