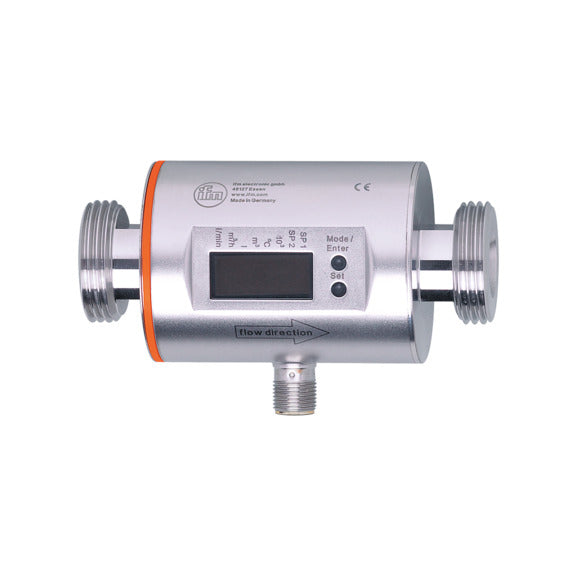

IFM SM8000 - Magnetic-Inductive Flow Meter, 0.2...100 l/min, G1 DN25

SKUSM8000BrandIFM

AED 3,020.67

~~AED 3,356.30~~ AED 3,020.67

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM SM8000 Magnetic-Inductive Flow Meter — mag-inductive flow meter 0.2...100 l/min, G1 DN25, flow+temp+totaliser, IO-Link. Magnetic-inductive flow meter, 0.2...100 l/min (0.01...6 m³/h), G1 DN25 flat seal, 2 x PNP/NPN + 4-20 mA + pulse + IO-Link, 4-digit display, IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: SM8000

Also known as: IFM SM8000 flow sensor / flow switch / flow meter / flow monitor.

SM8000 Applications

The IFM SM8000 is a magnetic-inductive flow meter used for precise measurement of flow, consumption and medium temperature of conductive liquids. It is suited for water and hydrous-media dosing, consumption monitoring, cooling-circuit and CIP flow measurement in industrial plants. With no moving parts it offers high accuracy, repeatability and dynamics across 0.2...100 l/min, provides switching, analogue and pulse outputs plus an integrated totaliser, and is set up conveniently via buttons or IO-Link with a clearly visible 4-digit LED display.

SM8000 Specifications

Brand	IFM	Product Type	Magnetic-inductive flow meter
IFM Type Code	SMR11GGXFRKG/US-100	Measuring Principle	Magnetic-inductive
Measuring Range	0.2...100 l/min (0.01...6 m³/h)	Media	Conductive liquids (≥ 20 µS/cm)
Process Connection	G1 external thread, DN25 flat seal	Outputs	2 x digital PNP/NPN + 4...20 mA / 0...10 V + pulse + IO-Link
Measured Values	Flow, consumption (totaliser), medium temperature	Accuracy	± (0.8% MV + 0.5% MEW)
Display	4-digit alphanumeric, LED units	Operating Voltage	18...30 V DC
Medium Temperature	-10...70 °C	Pressure Rating	16 bar
Protection Rating	IP 67	Ambient Temperature	-10...60 °C
Wetted Materials	Stainless steel 316L, PEEK, FKM	Electrical Connection	M12 connector, A-coded, 4 gold-plated contacts
Weight	577 g

SM8000 Datasheet & Manual

Download Datasheet & ManualIFM SM8000 · PDF · Official IFM document

SM8000 – Frequently Asked Questions (FAQ)

What is the flow measuring range of the IFM SM8000?

The SM8000 measures from 0.2 to 100 l/min, equivalent to 0.01 to 6 m3/h.

What measuring principle does the SM8000 use and which media are suitable?

It is a magnetic-inductive flow meter for conductive liquids, water and hydrous media with a conductivity of at least 20 uS/cm and viscosity below 70 mm2/s at 40 C.

How accurate is the SM8000 and how fast does it respond?

Accuracy is +/- (0.8 % of measured value + 0.5 % of measuring range end value), repeatability is +/- 0.2 % of the measuring range end value, and the response time is 0.15 seconds.

What outputs does the IFM SM8000 offer?

It provides two digital outputs (PNP/NPN configurable, 200 mA permanent current, max 2 V voltage drop) and one analogue output (4 to 20 mA into max 500 Ohm, or 0 to 10 V into min 2000 Ohm).

Does the SM8000 support IO-Link?

Yes, it supports IO-Link revision 1.1 with COM2 transmission at 38.4 kBaud.

What is the operating voltage and current draw of the SM8000?

It operates on 18 to 30 V DC (SELV/PELV) and consumes 95 mA at 24 V.

What housing material, IP rating and temperatures apply to the SM8000?

The housing is stainless steel (316L/1.4404), PBT-GF20, PC, FKM and TPE, rated IP 67, with a medium temperature of -10 to 70 C and ambient temperature of -10 to 60 C.

What are the process and electrical connections of the SM8000?

The process connection is a G 1 external thread (DN25, flat seal) and the electrical connection is 1 x M12 A-coded 4-pin gold-plated connector.
