2 Inch Flange AODD Pumps BA50SS-S991-C - Stainless Steel Body Santoprene Diaphragm -BSK

SKUBA50SS-S991-CBrandBSK

AED 11,050.00

Sale Sold out

Shipping calculated at checkout.

Quantity

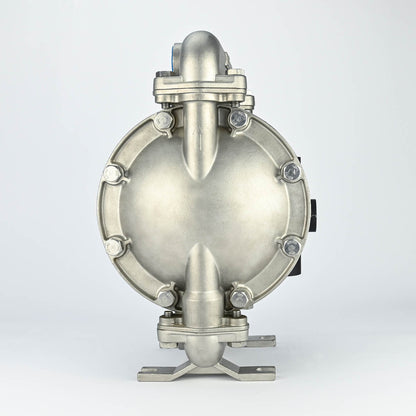

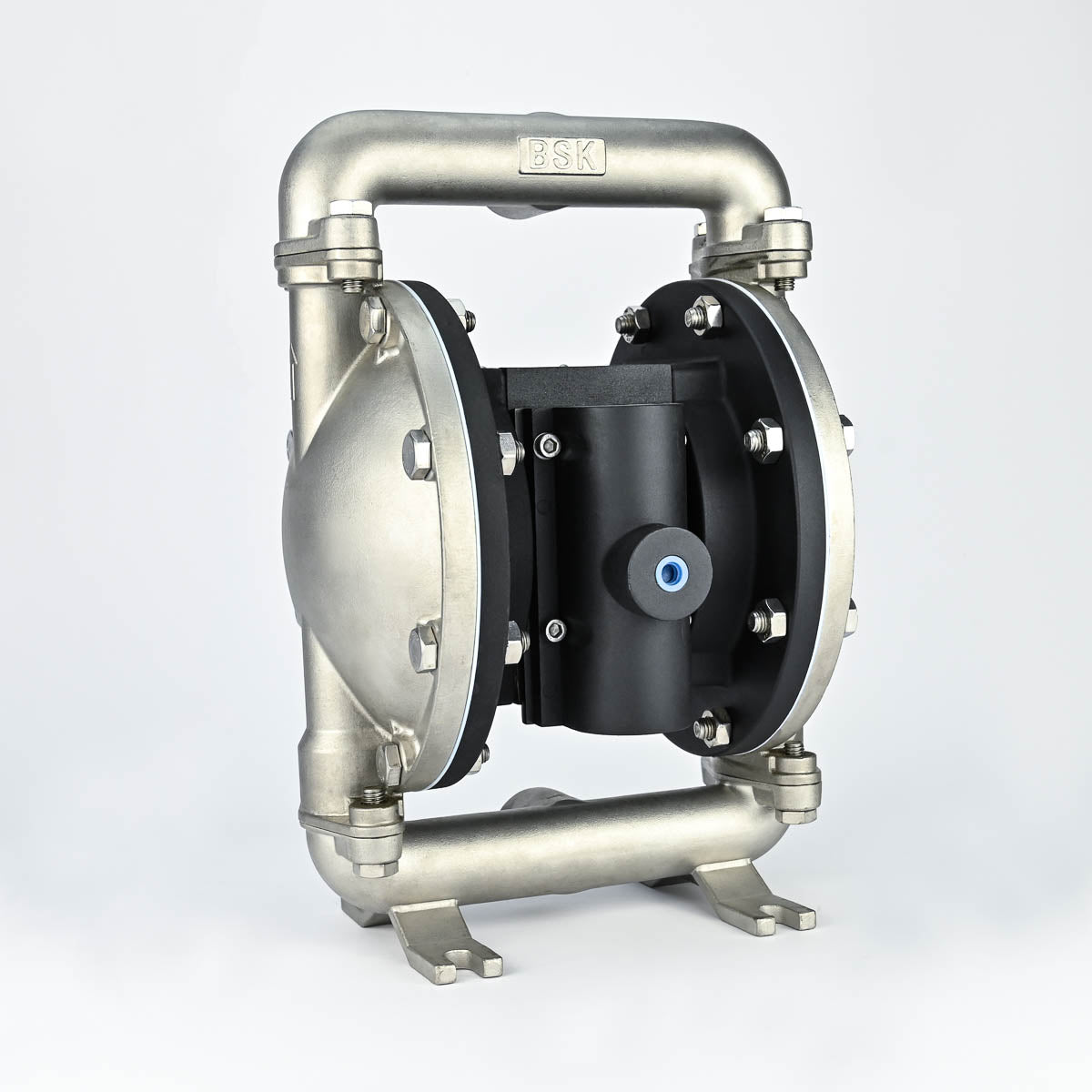

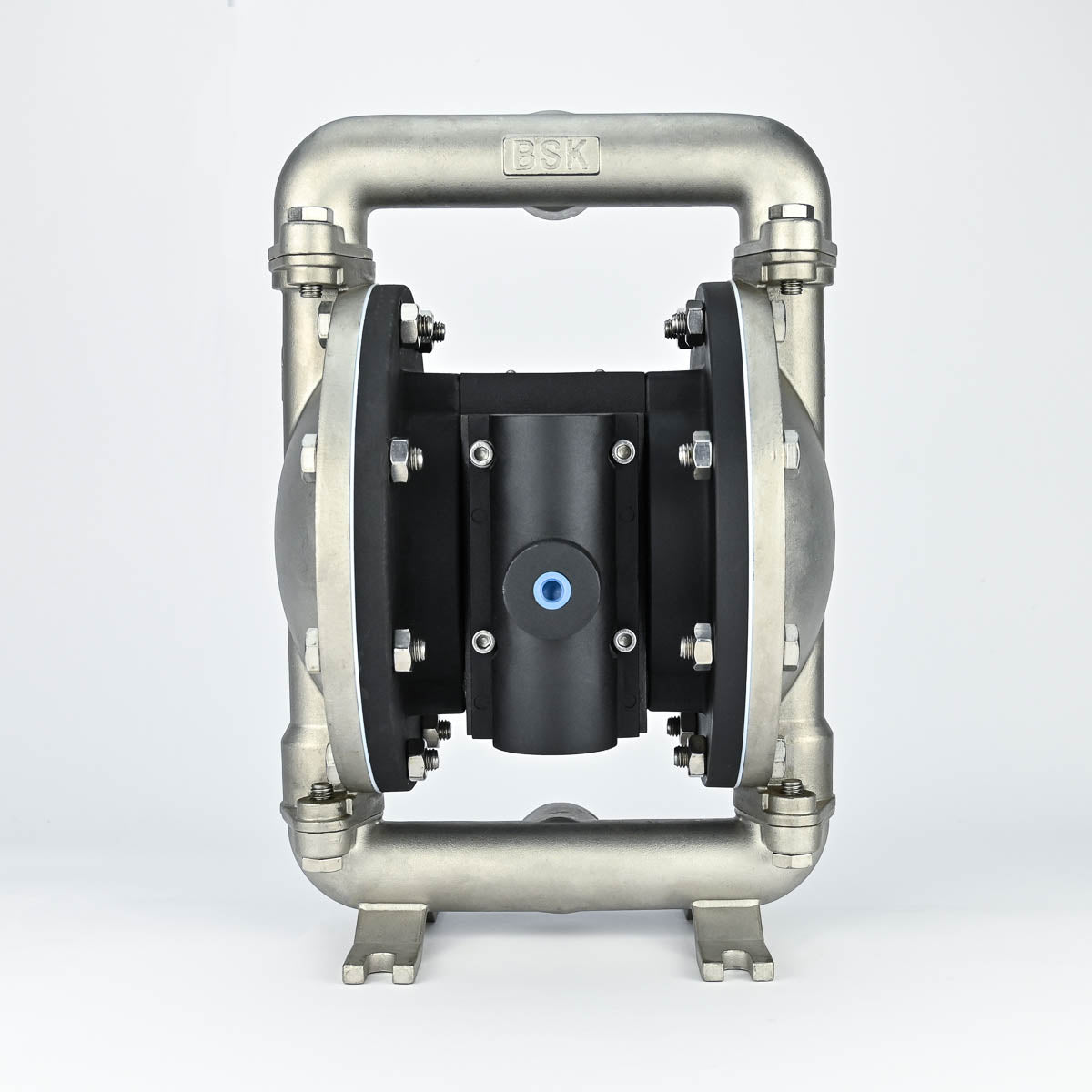

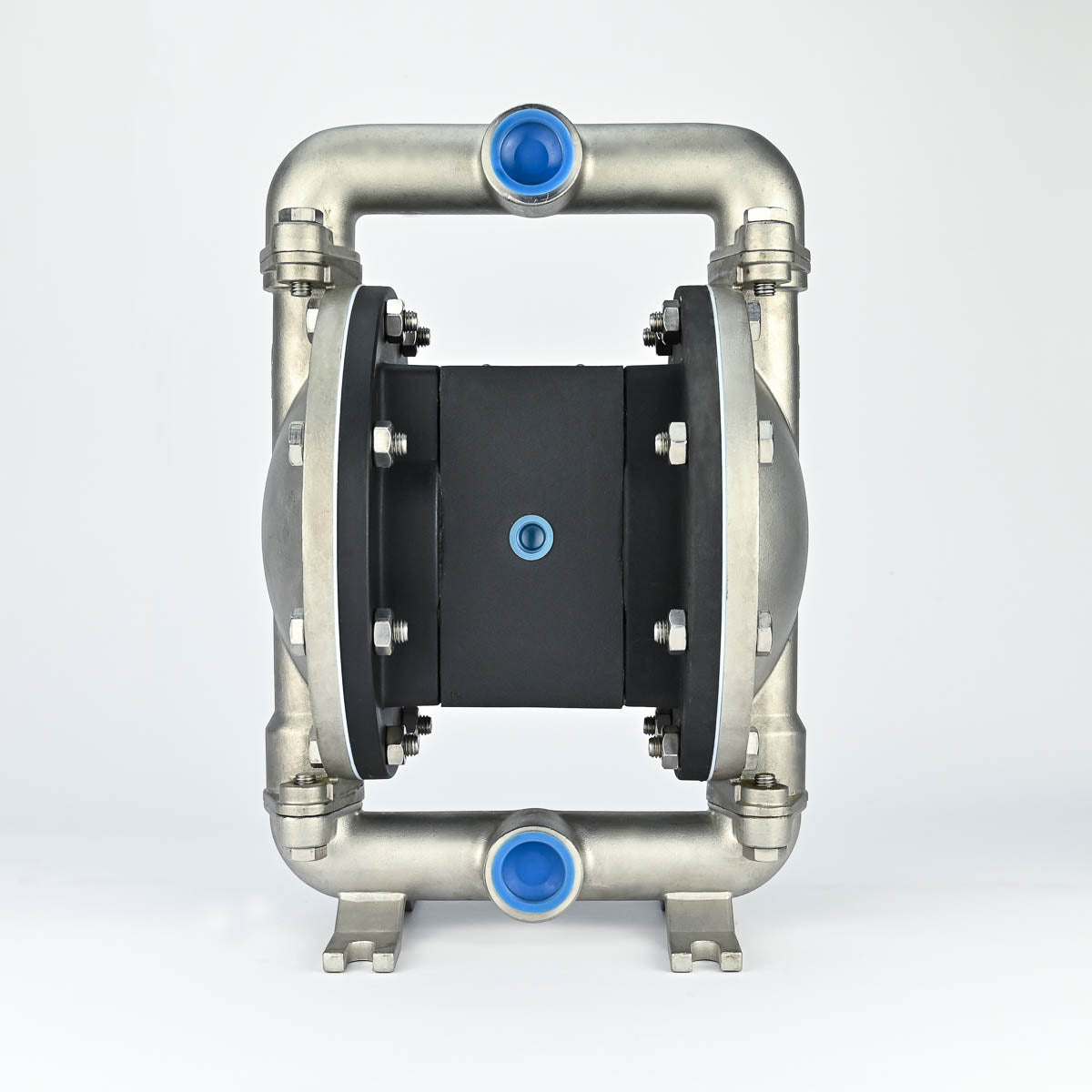

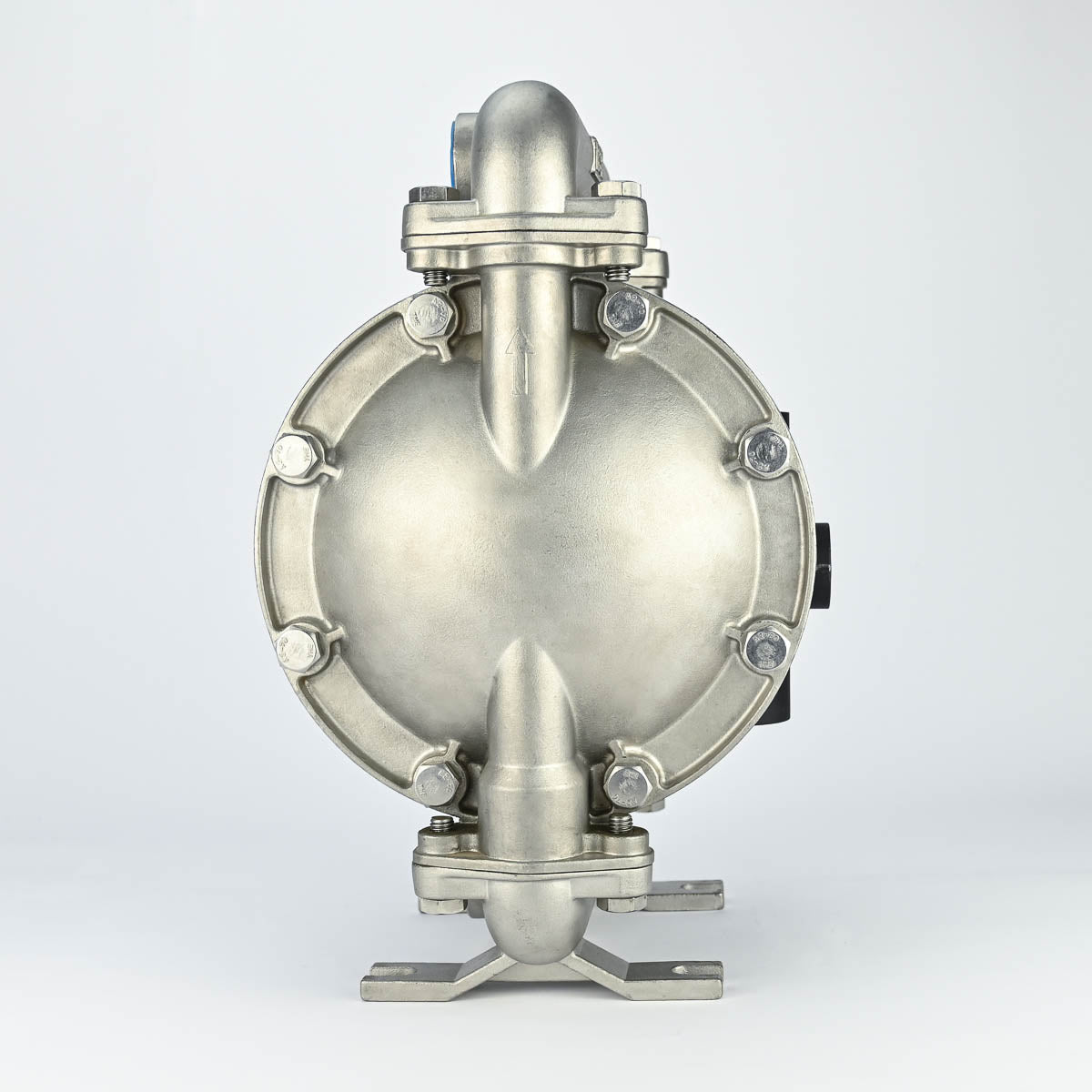

The BA50SS-S991-C is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable stainless steel body and a chemically resistant Santoprene diaphragm. Designed for large volume sanitary applications, this pump is engineered to reliably transfer food products and sanitary fluids in demanding food processing and pharmaceutical environments. With a maximum flow rate of 667 L/Min and a maximum suction lift of 6.2 m, it provides efficient and safe operation for a wide range of applications

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Wetted Material: Stainless Steel 316
Seat Material: Stainless Steel
Ball Material: Santoprene
Diaphragm Material: Santoprene
O-ring Materials: NBR
Discharge Port: Flanged
Fluid Outlet: 2"
Fluid Inlet: 2"
Max Flow: 667 L/Min

Max Suction Lift-Dry: 7.6 m
Max Air Pressure: 8.3 bar
Weight: 35.8kg
Noise: <78dB
Temperature Range: -40Â°C to 107.2Â°C
Dimensions/Size: 380Ã—520Ã—365mm
Color/Finish: Stainless Steel 316
Applications/Industry: Large-Volume Sanitary & Food Processing

Product Features

Stainless Steel 316 Body Material: Provides excellent resistance to corrosion, chemicals, and contamination, ensuring longevity and reliability in large-volume sanitary processing environments.
Santoprene Diaphragm Material: Offers superior compatibility and lasting performance with fluids like food products, sanitary fluids, beverages, dairy products, and pharmaceutical solutions.
667 L/Min Max Flow: Enables efficient and rapid large-volume sanitary fluid transfer, food processing, and pharmaceutical applications requiring high-capacity operations.
Self-Priming & Can Run Dry: Reduces downtime and prevents damage, simplifying operation in large-scale sanitary processing systems where continuous operation is essential.
Large Volume Stainless Steel Sanitary Design: Provides food-grade construction with stainless steel seats and Santoprene components, delivering safe and hygienic performance for large-volume food and pharmaceutical applications.
Seal-Less, Leak-Proof Design: Eliminates the risk of costly leaks and protects products from contamination in sanitary environments.
Air-Operated (Intrinsically Safe): Can be used in hazardous environments where electrical sparks are a concern, making it ideal for explosive atmospheres in food processing facilities.
Large Volume Sanitary 2" Flanged Port Design: Optimized for large-volume sanitary applications with 2" flanged connections for secure integration into food processing and pharmaceutical systems requiring high flow capacity.
Wide Temperature Range (-40Â°C to 107.2Â°C): Ensures reliable operation across diverse processing conditions typical in food and pharmaceutical applications.
Large Volume Sanitary Configuration: Specifically engineered for large-volume sanitary applications with materials selected for FDA compliance and hygienic fluid handling in food processing and pharmaceutical environments.

Applications & Industries

Food & Beverage: FDA-compliant for moving food products, beverages, dairy products, concentrates, oils, and syrups requiring stainless steel sanitary construction with large flow capacity and flanged connections for major food processing operations requiring high-throughput and permanent installation.
Pharmaceutical: Precise transfer in large-volume pharmaceutical manufacturing, sterile fluid handling, and drug material processing requiring FDA-compliant stainless steel construction with flanged connections for pharmaceutical facilities requiring high-capacity operations.
Dairy Processing: Transferring milk, cream, dairy products, and food-grade fluids requiring FDA-compliant stainless steel construction with large flow rates and flanged connections for major dairy processing facilities requiring high-volume operations.
Beverage Manufacturing: Handling beverages, concentrates, syrups, and liquid food products requiring sanitary stainless steel construction with large-volume capacity and flanged connections for major beverage manufacturing facilities requiring permanent installation.
Biotechnology: Handling sterile processing fluids, pharmaceutical solutions, and specialty chemicals requiring food-grade construction with stainless steel sanitary design and large flow capacity for major biotechnology production facilities.
Note: The BA50SS-S991-C's large volume stainless steel construction with food-grade materials and 2" flanged connections delivering 667 L/Min provides FDA-compliant performance for large-volume food and pharmaceutical applications. The stainless steel body offers excellent resistance to corrosion and contamination while the flanged connections ensure secure integration into permanent sanitary piping systems. This model is specifically designed for large-volume sanitary applications where FDA compliance, hygienic construction, secure installation, and contamination prevention are essential for major food processing, pharmaceutical, and biotechnology facilities requiring high-capacity operations while maintaining the highest sanitary standards.

Why Choose This Pump?

The BA50SS-S991-C from BSK Fluid Technology combines robust construction with proven AODD pump technology to deliver unmatched performance and durability for your specific fluid handling challenges. Its focus on maximum-duty corrosion resistance with all-Stainless Steel wetted parts design makes it a cost-effective and reliable choice for ensuring operational efficiency and safety.

Key Product Highlights:

Stainless Steel 316L Body Construction: Premium stainless steel design providing exceptional corrosion resistance and hygiene standards for maximum-duty industrial applications
All-Stainless Steel Wetted Parts: Superior material selection offering excellent compatibility with food-grade, pharmaceutical, and aggressive chemical applications with maximum durability
Proven AODD Technology: Self-priming, seal-less operation that can run dry without damage while maintaining 4.5m self-priming lift capability
Maximum-Duty 2" Port Design: Large bore installation with 2"-11-1/2NPTF connections while delivering reliable 600 L/Min flow capacity with 70M maximum head
Wide Operating Range: Functions reliably across -20Â°C to 150Â°F temperature range up to 8.3 bar maximum air pressure with exceptional corrosion resistance
Intrinsically Safe Operation: Air-powered design eliminates electrical spark risks in hazardous environments while handling particles up to 7mm diameter with sanitary standards

The BA50SS-S991-C is specifically engineered for maximum-volume applications requiring the highest standards of hygiene and corrosion resistance, making it the ideal solution for large-scale food processing, pharmaceutical manufacturing, and high-capacity chemical handling where sanitary design and maximum throughput are paramount.
