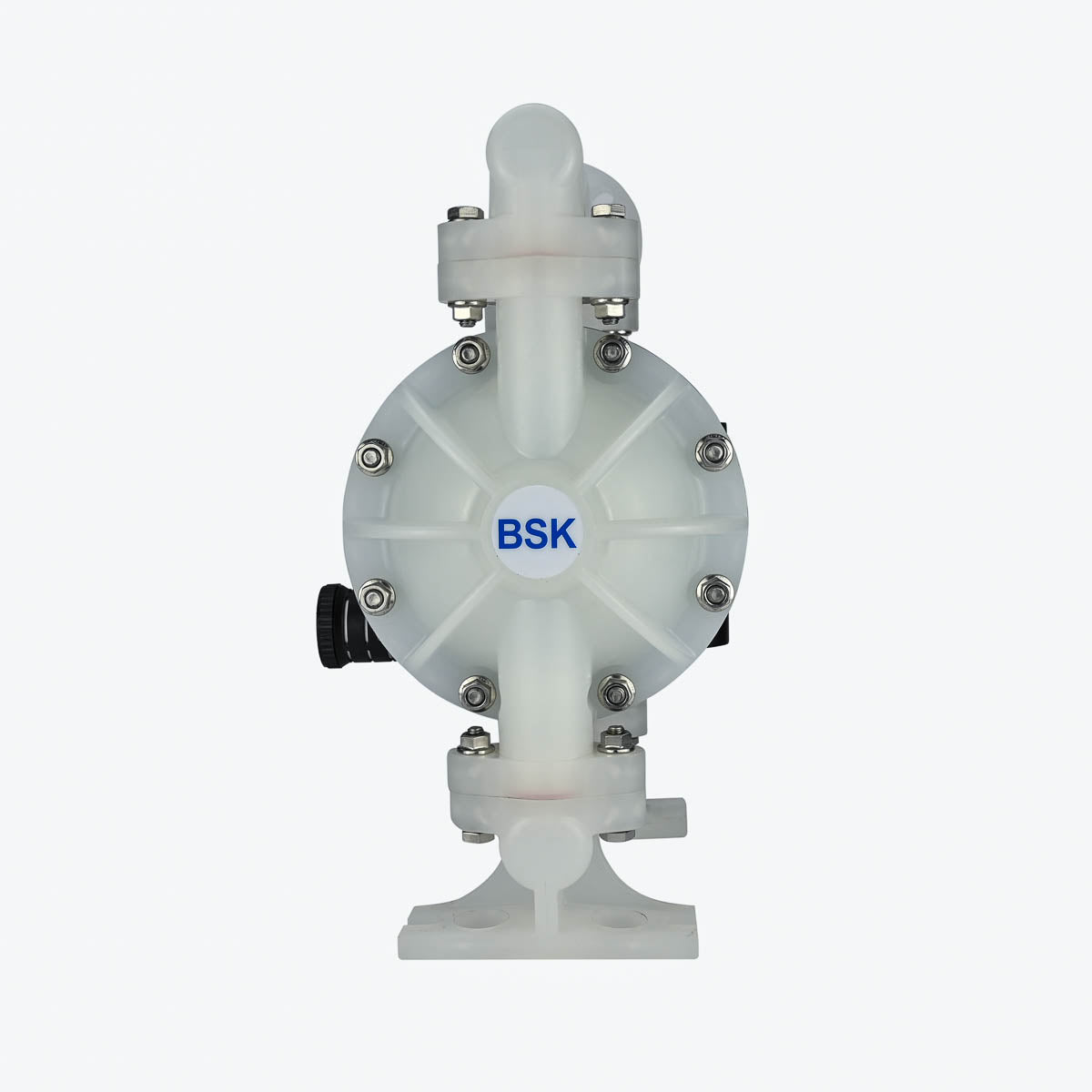

1.5 Inch Side flange AODD Pumps BA40PP-P991-C - Polypropylene Body Santoprene Diaphragm -BSK

Name: 1.5 Inch Side flange AODD Pumps BA40PP-P991-C - Polypropylene Body Santoprene Diaphragm -BSK
Brand: BSK
SKU: BA40PP-P991-C
Price: 5800.00 AED
Availability: InStock

SKUBA40PP-P991-CBrandBSK

AED 5,800.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The BA40PP-P991-C is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable polypropylene body and a chemically resistant Santoprene diaphragm. Designed for general chemical applications with medium flow requirements, this pump is engineered to reliably transfer chemicals and corrosive fluids in demanding chemical processing environments. With a maximum flow rate of 378.50 L/Min and a maximum suction lift of 6.7 m, it provides efficient and safe operation for a wide range of applications

View full details

Wetted Material: Polypropylene
Seat Material: UPE
Ball Material: Santoprene
Diaphragm Material: Santoprene
O-ring Materials: NBR
Discharge Port: Tri-Clamp
Fluid Outlet: 1.5"
Fluid Inlet: 1.5"
Max Flow: 380 L/Min
Max Suction Lift-Dry: 7.6 m
Max Air Pressure: 8.3 bar
Weight: 11.5kg
Noise: <76dB
Temperature Range: -40°C to 107.2°C
Dimensions/Size: 318×432×295mm
Color/Finish: Natural Polypropylene
Applications/Industry: High-Volume Chemical Processing
Polypropylene Body Material: Provides excellent chemical resistance and lightweight durability, ensuring exceptional compatibility with acids and corrosive chemicals in high-volume sanitary processing environments.
UPE Seat Design: Provides enhanced chemical compatibility compared to standard seats, offering superior resistance to chemical degradation for extended service life in high-volume sanitary chemical applications.
Santoprene Diaphragm Material: Offers superior compatibility and lasting performance with fluids like acids, chemicals, and sanitary process fluids in high-volume clean processing operations.
380 L/Min Max Flow: Enables highly efficient and rapid high-volume sanitary chemical transfer, large-scale clean processing, and industrial-scale hygienic chemical handling operations.

Self-Priming & Can Run Dry: Reduces downtime and prevents damage, critical for continuous high-volume sanitary chemical processing systems and large-scale clean applications.
Tri-Clamp Sanitary Connections: Provides quick-disconnect sanitary connections for easy cleaning, maintenance, and compliance with high-volume chemical processing sanitary standards.
Seal-Less, Leak-Proof Design: Eliminates the risk of product contamination and maintains sanitary conditions in high-volume chemical processing operations.
Air-Operated (Intrinsically Safe): Safe for high-volume sanitary processing environments where electrical equipment may pose contamination risks in large-scale chemical applications.
Chemical Grade High-Volume Sanitary Configuration: Specifically designed for large-scale sanitary chemical applications with materials selected for enhanced chemical compatibility and cleanliness.
Large Sanitary 1.5" Port Design: Optimized for high-volume sanitary chemical flow capacity while maintaining easy cleaning and sanitary compliance.
High-Volume Sanitary Chemical Processing: Large-scale transfer of acids, specialty chemicals, and process fluids with enhanced chemical compatibility in clean processing facilities requiring high-flow sanitary connections.
Large-Scale Clean Water Treatment: High-capacity handling of chemical additives, treatment solutions, and process chemicals in water treatment facilities requiring sanitary compliance and chemical resistance with high throughput.
Industrial Pharmaceutical Chemical Processing: High-volume transfer of pharmaceutical chemicals, cleaning solutions, and process fluids requiring both chemical compatibility and sanitary compliance in large-scale operations.
Large-Scale Clean Manufacturing: For high-volume sanitary chemical transfer, acid handling, and clean processing applications requiring enhanced chemical resistance and high-flow sanitary connections.
Industrial Biotechnology Processing: High-capacity handling of process chemicals, cleaning solutions, and specialty fluids in biotechnology applications requiring sanitary design, chemical compatibility, and high throughput.
Note: The BA40PP-P991-C's polypropylene construction with UPE seat material and 1.5" tri-clamp sanitary connections provides excellent chemical resistance for high-volume sanitary applications requiring easy cleaning and chemical compatibility. The combination of lightweight polypropylene body with UPE seats and large tri-clamp design offers enhanced compatibility with acids and chemicals while maintaining sanitary compliance, making it ideal for large-scale clean processing operations where chemical resistance, high-volume capacity, sanitary design, and easy cleaning are critical requirements.
High-Volume Polypropylene Construction: Excellent chemical resistance and corrosion protection providing superior compatibility for large-scale sanitary chemical processing environments
UPE Seat Technology: Enhanced chemical resistance compared to standard seats, offering superior compatibility with acids and chemicals in high-volume sanitary applications
High-Flow Tri-Clamp Sanitary Design: Large 1.5" quick-disconnect sanitary connections ensuring easy cleaning, maintenance, and compliance with high-volume chemical processing standards
Chemical Grade High-Volume Sanitary Configuration: Specifically designed for large-scale clean chemical applications with materials selected for chemical compatibility and sanitary compliance
Proven High-Volume Sanitary AODD Technology: Self-priming, seal-less operation preventing product contamination in high-volume sanitary chemical applications
Reliable High-Volume Sanitary Flow Capacity: Delivers consistent 380 L/Min flow through 1.5" tri-clamp ports for efficient large-scale clean chemical operations
Wide Operating Range: Functions reliably across -40°C to 107.2°C temperature range for diverse high-volume sanitary chemical processing conditions
Safe High-Volume Sanitary Operation: Air-powered design eliminates electrical contamination risks in large-scale clean processing facilities
