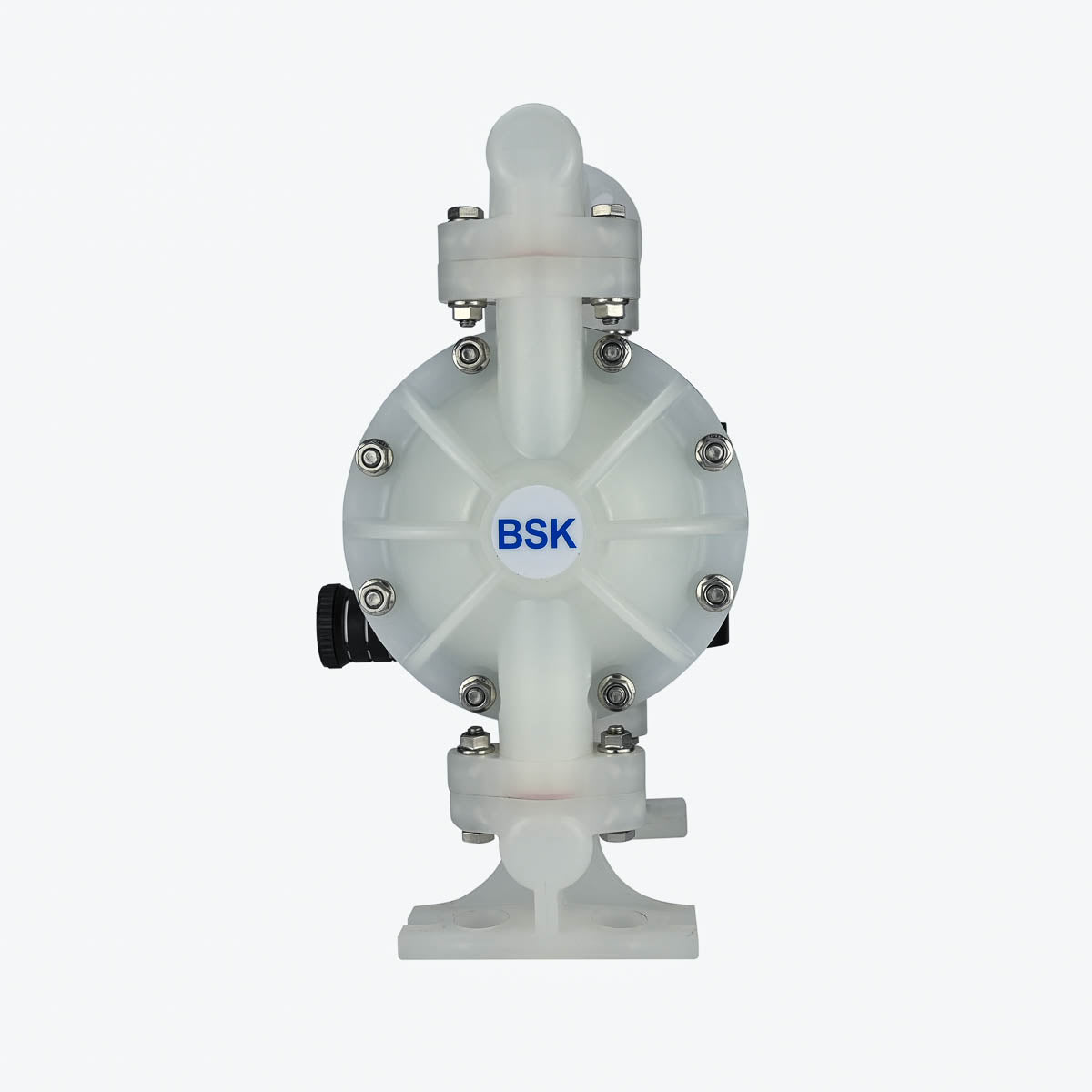

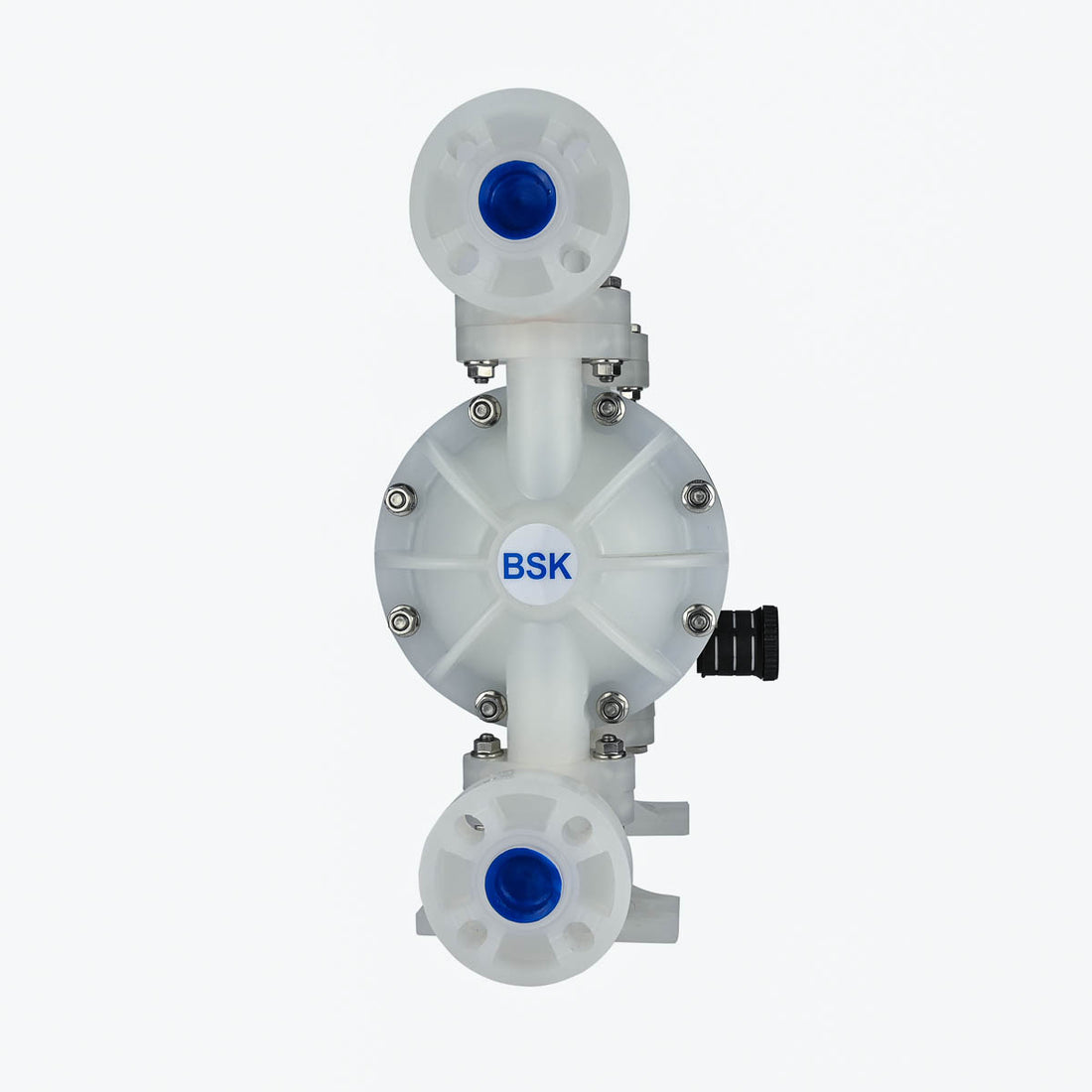

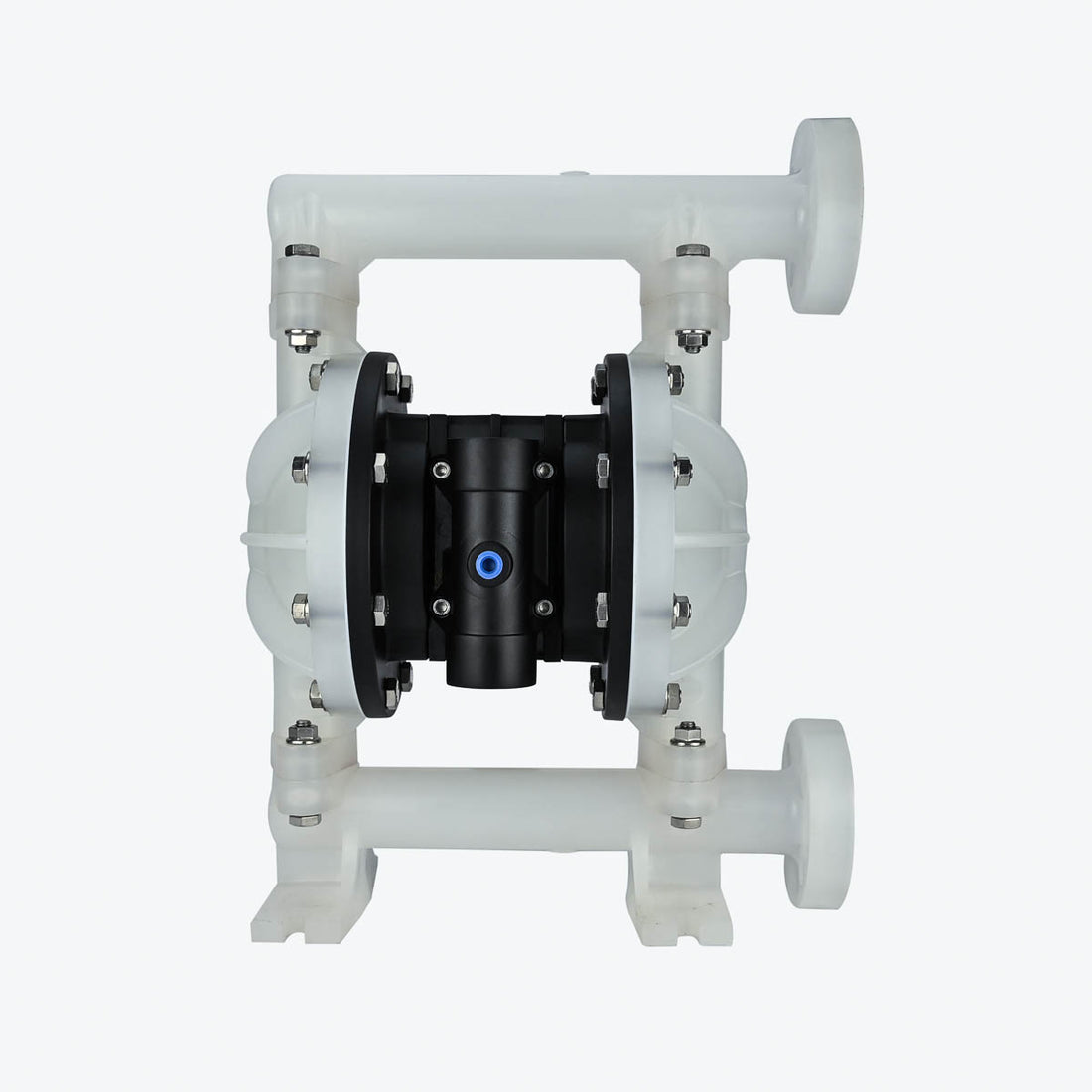

1 Inch Side flange AODD Pumps BA25PP-P991-C - Polypropylene Body Santoprene Diaphragm -BSK

SKUBA25PP-P991-CBrandBSK

AED 3,190.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The BA25PP-P991-C is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable polypropylene body and a chemically resistant Santoprene diaphragm. Designed for corrosive chemical handling and general chemical applications, this pump is engineered to reliably transfer corrosive chemicals and various fluids in demanding chemical processing environments. With a maximum flow rate of 192 L/Min and a maximum suction lift of 6.7 m, it provides efficient and safe operation for a wide range of applications

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Wetted Material: Polypropylene
Seat Material: UPE
Ball Material: Santoprene
Diaphragm Material: Santoprene
O-ring Materials: NBR
Discharge Port: Tri-Clamp
Fluid Outlet: 1"
Fluid Inlet: 1"
Max Flow: 192 L/Min

Max Suction Lift-Dry: 6.7 m
Max Air Pressure: 8.3 bar
Weight: 7.8kg
Noise: <75dB
Temperature Range: -40Â°C to 107.2Â°C
Dimensions/Size: 249Ã—360Ã—245mm
Color/Finish: Natural Polypropylene
Applications/Industry: Chemical Processing

Product Features

Polypropylene Body Material: Provides excellent chemical resistance and lightweight durability, ensuring exceptional compatibility with acids and corrosive chemicals in sanitary processing environments.
UPE Seat Design: Provides enhanced chemical compatibility compared to standard seats, offering superior resistance to chemical degradation for extended service life in sanitary chemical applications.
Santoprene Diaphragm Material: Offers superior compatibility and lasting performance with fluids like acids, chemicals, and sanitary process fluids in clean processing operations.
192 L/Min Max Flow: Enables efficient and rapid sanitary chemical transfer, clean processing, and hygienic chemical handling operations with chemical compatibility.
Self-Priming & Can Run Dry: Reduces downtime and prevents damage, critical for continuous sanitary chemical processing systems and clean applications.
Tri-Clamp Sanitary Connections: Provides quick-disconnect sanitary connections for easy cleaning, maintenance, and compliance with chemical processing sanitary standards.
Seal-Less, Leak-Proof Design: Eliminates the risk of product contamination and maintains sanitary conditions in chemical processing operations.
Air-Operated (Intrinsically Safe): Safe for sanitary processing environments where electrical equipment may pose contamination risks in chemical applications.
Chemical Grade Sanitary Configuration: Specifically designed for sanitary chemical applications with materials selected for enhanced chemical compatibility and cleanliness.
Wide Temperature Range (-40Â°C to 107.2Â°C): Ensures reliable operation across diverse sanitary chemical processing conditions and environmental variations.

Applications & Industries

Sanitary Chemical Processing: Transferring acids, specialty chemicals, and process fluids with enhanced chemical compatibility in clean processing facilities requiring sanitary connections.
Clean Water Treatment: Handling chemical additives, treatment solutions, and process chemicals in water treatment facilities requiring sanitary compliance and chemical resistance.
Pharmaceutical Chemical Processing: Transferring pharmaceutical chemicals, cleaning solutions, and process fluids requiring both chemical compatibility and sanitary compliance.
Clean Manufacturing: For sanitary chemical transfer, acid handling, and clean processing applications requiring enhanced chemical resistance and sanitary connections.
Biotechnology Processing: Handling process chemicals, cleaning solutions, and specialty fluids in biotechnology applications requiring sanitary design and chemical compatibility.
Note: The BA25PP-P991-C's polypropylene construction with UPE seat material and tri-clamp sanitary connections provides excellent chemical resistance for sanitary applications requiring easy cleaning and chemical compatibility. The combination of lightweight polypropylene body with UPE seats and tri-clamp design offers enhanced compatibility with acids and chemicals while maintaining sanitary compliance, making it ideal for clean processing operations where chemical resistance, sanitary design, and easy cleaning are critical requirements.

Why Choose This Pump?

The BA25PP-P991-C from BSK Fluid Technology combines lightweight polypropylene construction with proven AODD pump technology to deliver exceptional chemical resistance and sanitary compliance for clean chemical processing challenges. Its focus on enhanced chemical compatibility with UPE seat design and tri-clamp connections makes it the ideal choice for sanitary applications requiring chemical resistance and easy cleaning.

Key Product Highlights:

Lightweight Polypropylene Construction: Excellent chemical resistance and corrosion protection providing superior compatibility for sanitary chemical processing environments
UPE Seat Technology: Enhanced chemical resistance compared to standard seats, offering superior compatibility with acids and chemicals in sanitary applications
Tri-Clamp Sanitary Design: Quick-disconnect sanitary connections ensuring easy cleaning, maintenance, and compliance with chemical processing standards
Chemical Grade Sanitary Configuration: Specifically designed for clean chemical applications with materials selected for chemical compatibility and sanitary compliance
Proven Sanitary AODD Technology: Self-priming, seal-less operation preventing product contamination in sanitary chemical applications
Reliable Sanitary Flow Capacity: Delivers consistent 192 L/Min flow through 1" tri-clamp ports for efficient clean chemical operations
Wide Operating Range: Functions reliably across -40Â°C to 107.2Â°C temperature range for diverse sanitary chemical processing conditions
Safe Sanitary Operation: Air-powered design eliminates electrical contamination risks in clean processing facilities

The BA25PP-P991-C bridges the gap between standard chemical handling and demanding sanitary processing applications, offering enhanced chemical resistance while maintaining sanitary compliance for chemical transfer, clean processing, and pharmaceutical applications where reliable performance, chemical compatibility, sanitary design, and easy cleaning are essential.
