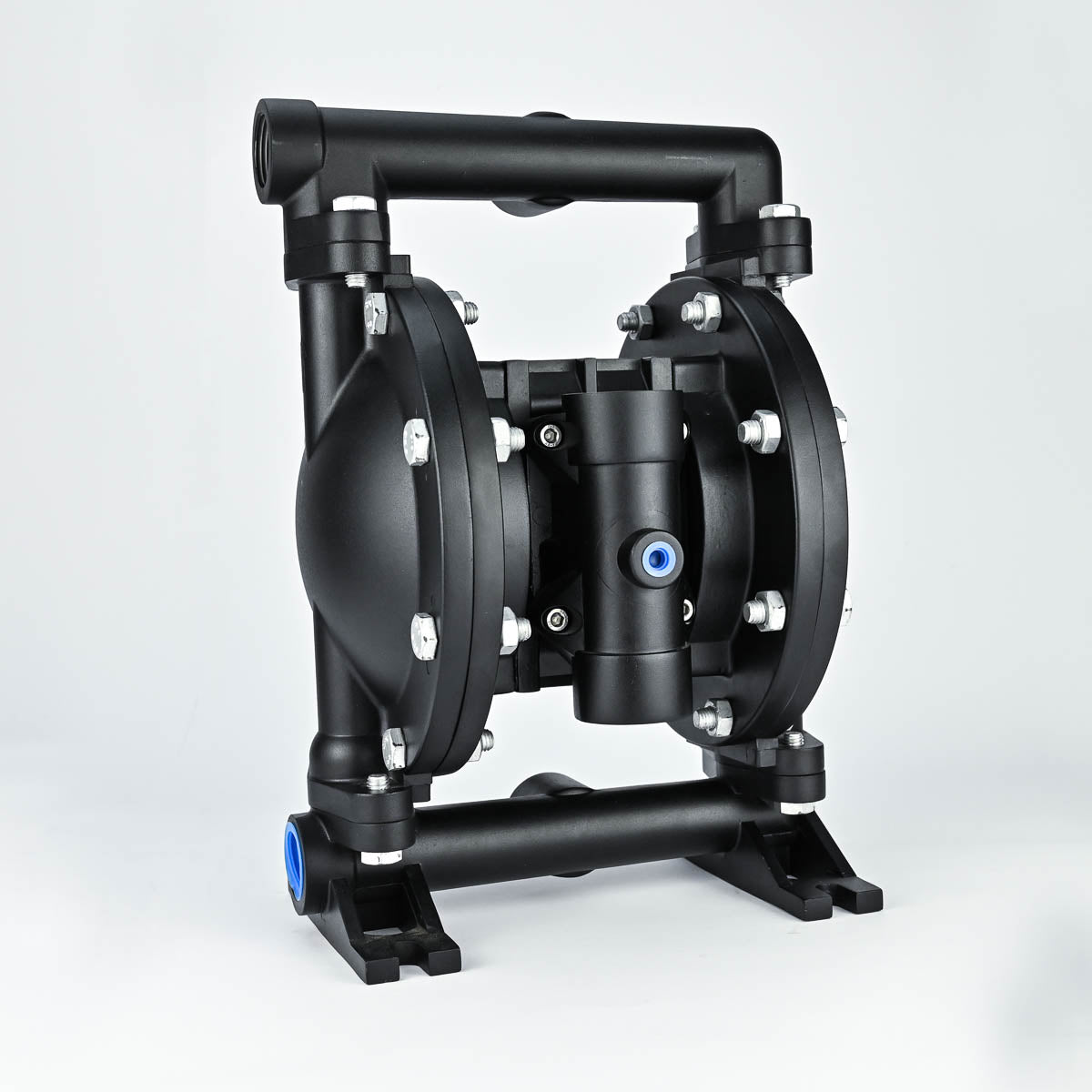

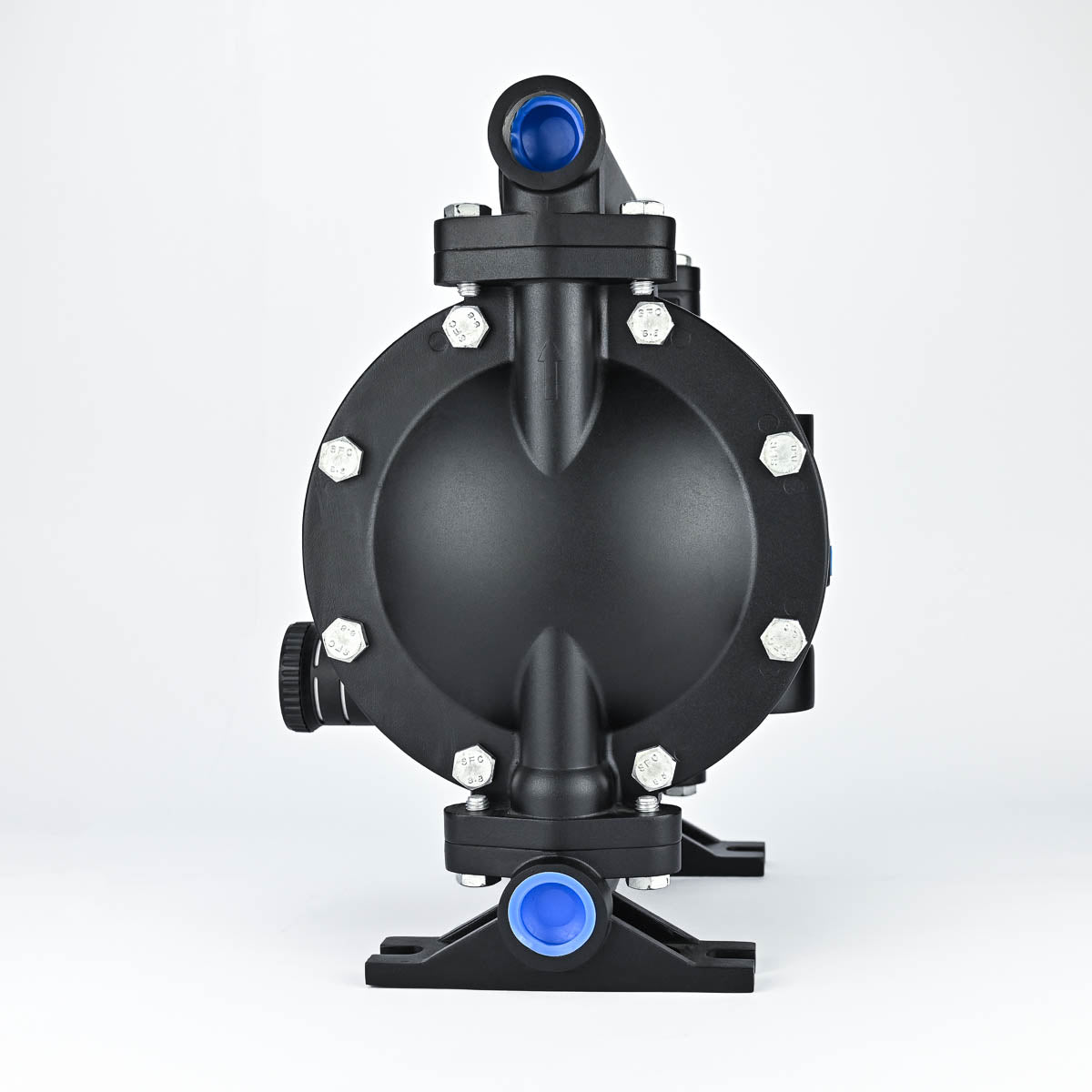

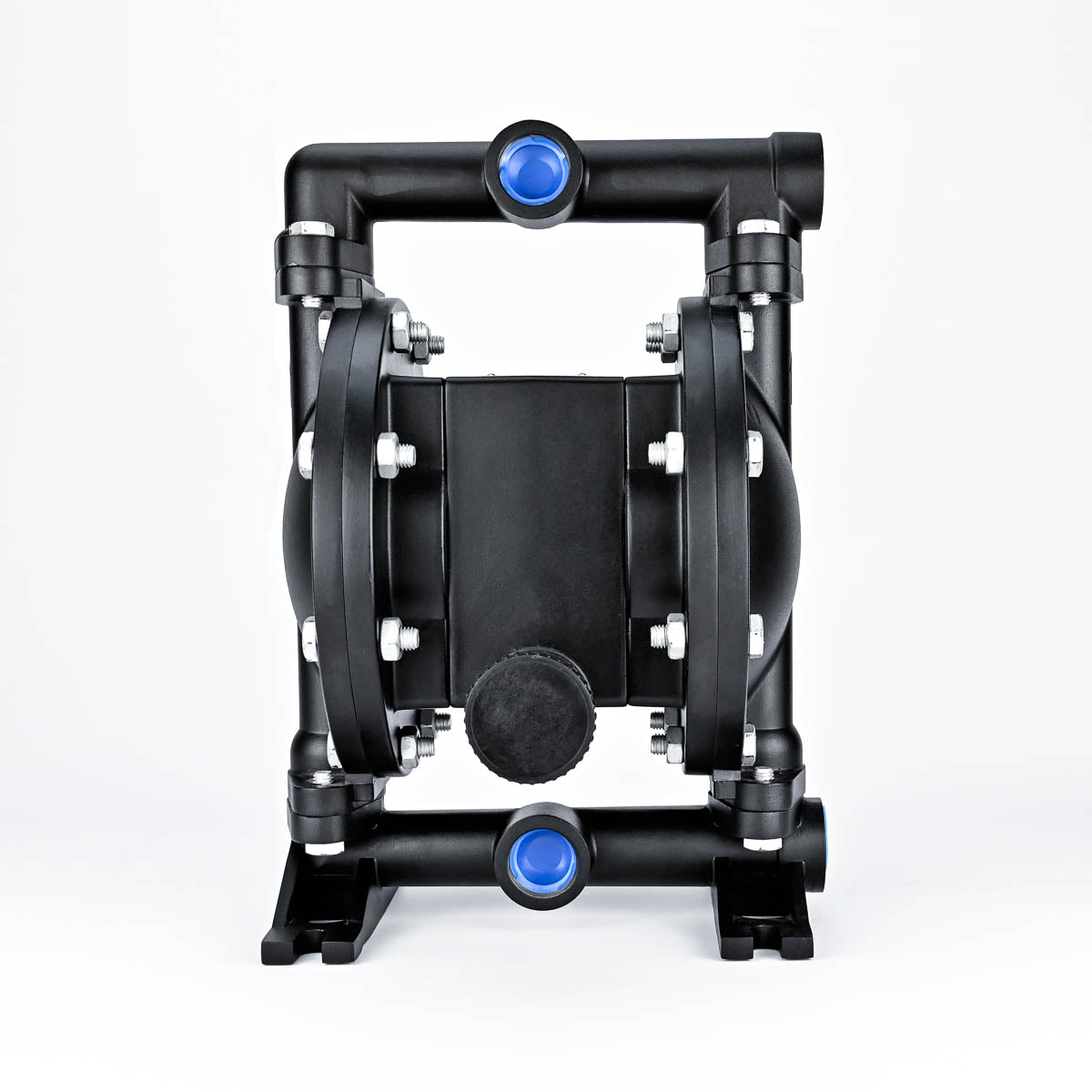

1.5 Inch AODD Pumps BA40AL-PTT3-A - Aluminium Body PTFE Diaphragm -BSK

SKUBA40AL-PTT3-ABrandBSK

AED 4,050.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The BA40AL-PTT3-A is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable aluminum body and a chemically resistant PTFE diaphragm. Designed for chemical processing with moderate volume requirements, this pump is engineered to reliably transfer chemicals and corrosive fluids in demanding chemical processing and industrial environments. With a maximum flow rate of 378.50 L/Min and a maximum suction lift of 6.7 m, it provides efficient and safe operation for a wide range of applications

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Wetted Material: Aluminium
Seat Material: PTFE
Ball Material: PTFE
Diaphragm Material: PTFE
O-ring Materials: NBR
Discharge Port: BSP
Fluid Outlet: 1.5"
Fluid Inlet: 1.5"
Max Flow: 380 L/Min

Max Suction Lift-Dry: 7.6 m
Max Air Pressure: 8.3 bar
Weight: 15.2kg
Noise: <76dB
Temperature Range: -40Â°C to 149Â°C
Dimensions/Size: 318Ã—432Ã—295mm
Color/Finish: Anodized Aluminium
Applications/Industry: Chemical Processing

Product Features

Aluminum Body Material: Provides excellent resistance to corrosion and lightweight durability, ensuring longevity and reliability in high-volume aggressive chemical environments.
All-PTFE Wetted Parts Design: Provides maximum chemical compatibility and temperature resistance for the most demanding high-volume chemical applications.
PTFE Diaphragm Material: Offers superior chemical compatibility and temperature resistance for handling large quantities of aggressive chemicals, acids, and high-temperature process fluids.
380 L/Min Max Flow: Enables efficient and rapid high-volume chemical processing, aggressive fluid transfer, and large-scale chemical handling operations.
Self-Priming & Can Run Dry: Reduces downtime and prevents damage, critical for continuous high-volume aggressive chemical processing operations.
Seal-Less, Leak-Proof Design: Eliminates the risk of costly leaks and protects the environment from large volumes of aggressive chemicals.
Air-Operated (Intrinsically Safe): Critical for high-volume hazardous chemical environments where electrical sparks could cause dangerous reactions in large-scale operations.
High Temperature Range (-40Â°C to 149Â°C): Handles high-temperature chemical processes and extreme operating conditions in large-scale applications.
Maximum Chemical Resistance: PTFE construction provides unmatched compatibility with high volumes of aggressive acids, solvents, and corrosive chemicals.
Heavy-Duty High-Volume Construction: Enhanced durability for continuous large-scale aggressive chemical processing operations.

Applications & Industries

Large-Scale Aggressive Chemical Processing: High-volume handling of strong acids, caustic solutions, aggressive solvents, and corrosive chemical processing fluids requiring maximum chemical resistance.
High-Volume High-Temperature Applications: Large-scale processing of heated chemicals, high-temperature process fluids, and applications requiring operation up to 149Â°C with high throughput.
Industrial Pharmaceutical Manufacturing: High-capacity transfer of active pharmaceutical ingredients, cleaning solvents, and process chemicals requiring highest purity and chemical compatibility.
Large-Scale Semiconductor Manufacturing: High-volume handling of ultra-pure chemicals, aggressive etchants, and specialty processing fluids in large clean room facilities.
Bulk Specialty Chemical Production: High-capacity processing of aggressive intermediates, specialty solvents, and high-value chemicals requiring zero contamination risk in large-scale operations.
Note: The BA40AL-PTT3-A's all-PTFE wetted parts construction with 380 L/Min capacity provides maximum chemical compatibility and temperature resistance for the most demanding large-scale applications. This model is specifically designed for high-volume aggressive chemical processing where standard materials would fail, offering unmatched performance in corrosive environments while maintaining the reliability of proven high-capacity AODD technology.

Why Choose This Pump?

The BA40AL-PTT3-A from BSK Fluid Technology represents the pinnacle of high-volume chemical compatibility and temperature resistance, combining all-PTFE construction with proven high-capacity AODD technology to deliver unmatched performance in the most demanding large-scale chemical processing applications.

Key Product Highlights:

All-PTFE High-Volume Construction: Maximum chemical compatibility with large volumes of aggressive acids, caustic solutions, and corrosive chemicals
High-Temperature High-Volume Performance: Operates reliably across -40Â°C to 149Â°C for large-scale high-temperature chemical processes
Maximum Chemical Resistance: Unmatched compatibility with high volumes of aggressive chemicals where other materials fail
Large-Scale Pharmaceutical Grade Performance: Suitable for high-volume high-purity applications requiring zero contamination risk
Proven High-Capacity AODD Technology: Self-priming, seal-less operation ideal for large-scale aggressive chemical handling
Reliable High-Volume Flow Capacity: Consistent 380 L/Min flow for demanding large-scale chemical processing operations
Extended Temperature Range: Superior performance in high-volume high-temperature applications up to 149Â°C
Intrinsically Safe Large-Scale Design: Critical safety feature for high-volume aggressive chemical environments

The BA40AL-PTT3-A is the ultimate choice for large-scale aggressive chemical processing, industrial pharmaceutical manufacturing, and bulk specialty chemical production where maximum chemical compatibility, high-volume capacity, temperature resistance, and zero contamination risk are essential for operational success and safety in demanding high-throughput chemical environments.
