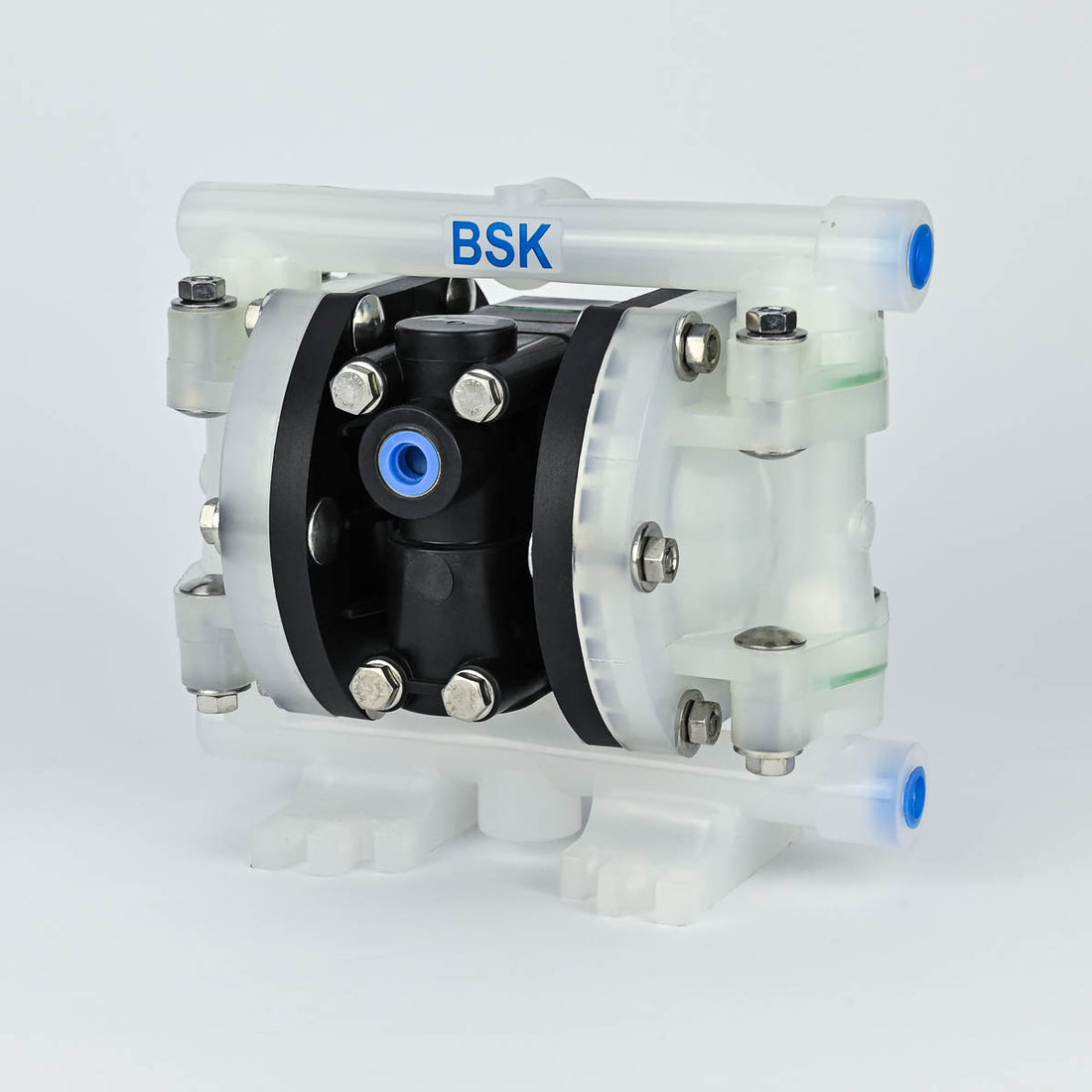

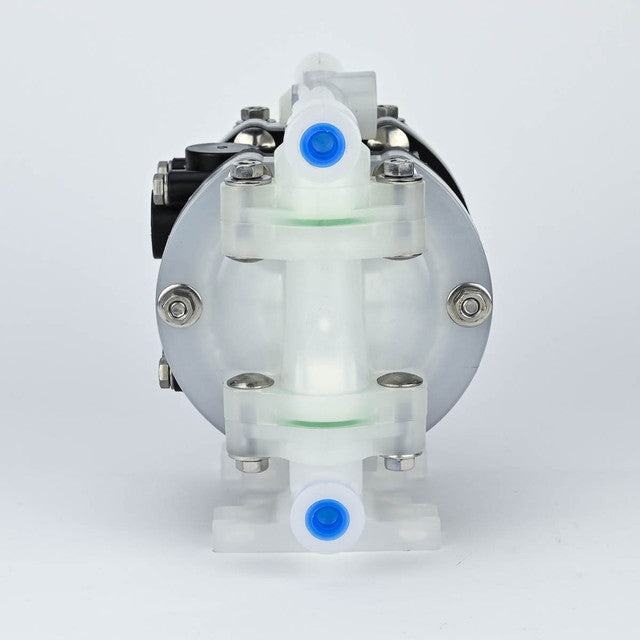

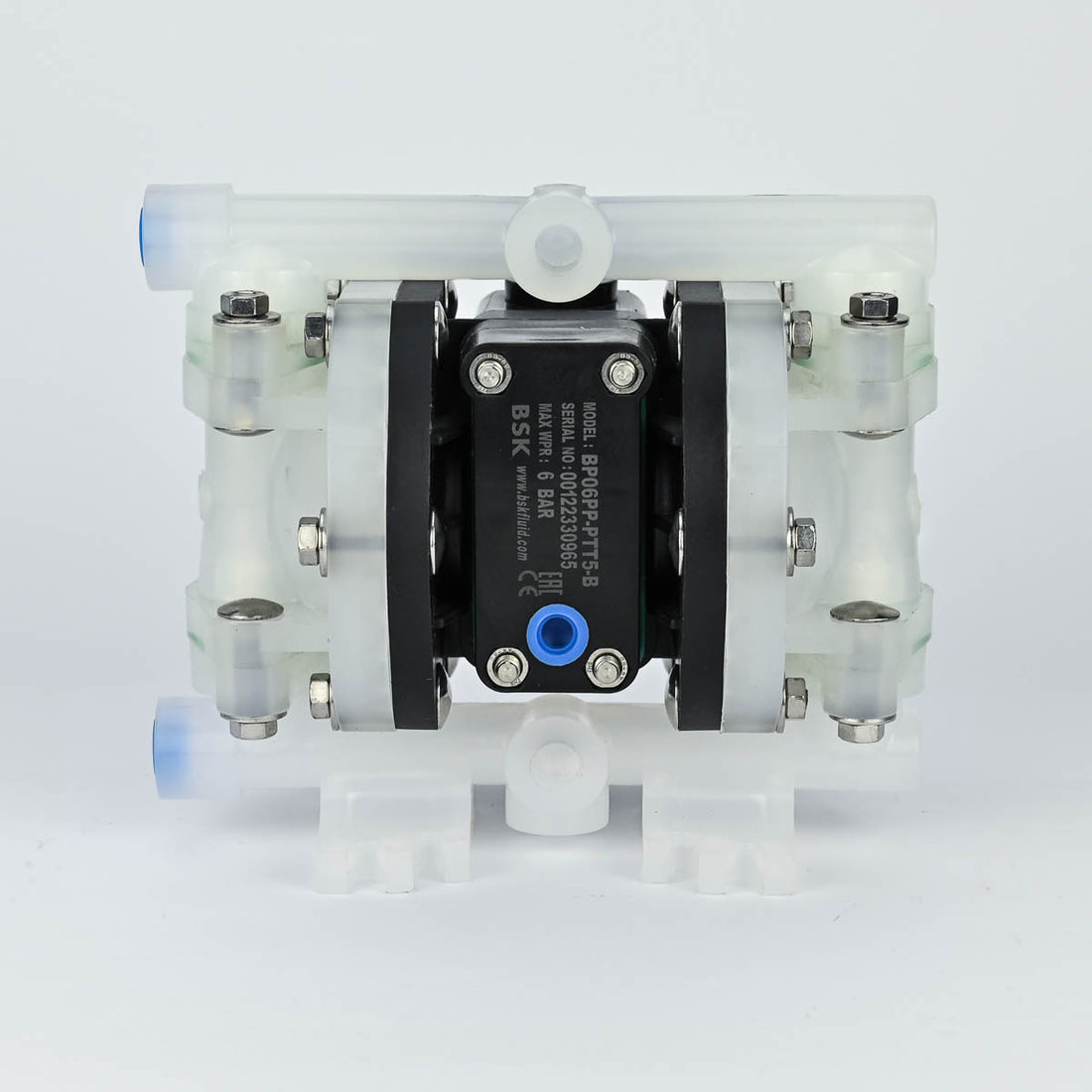

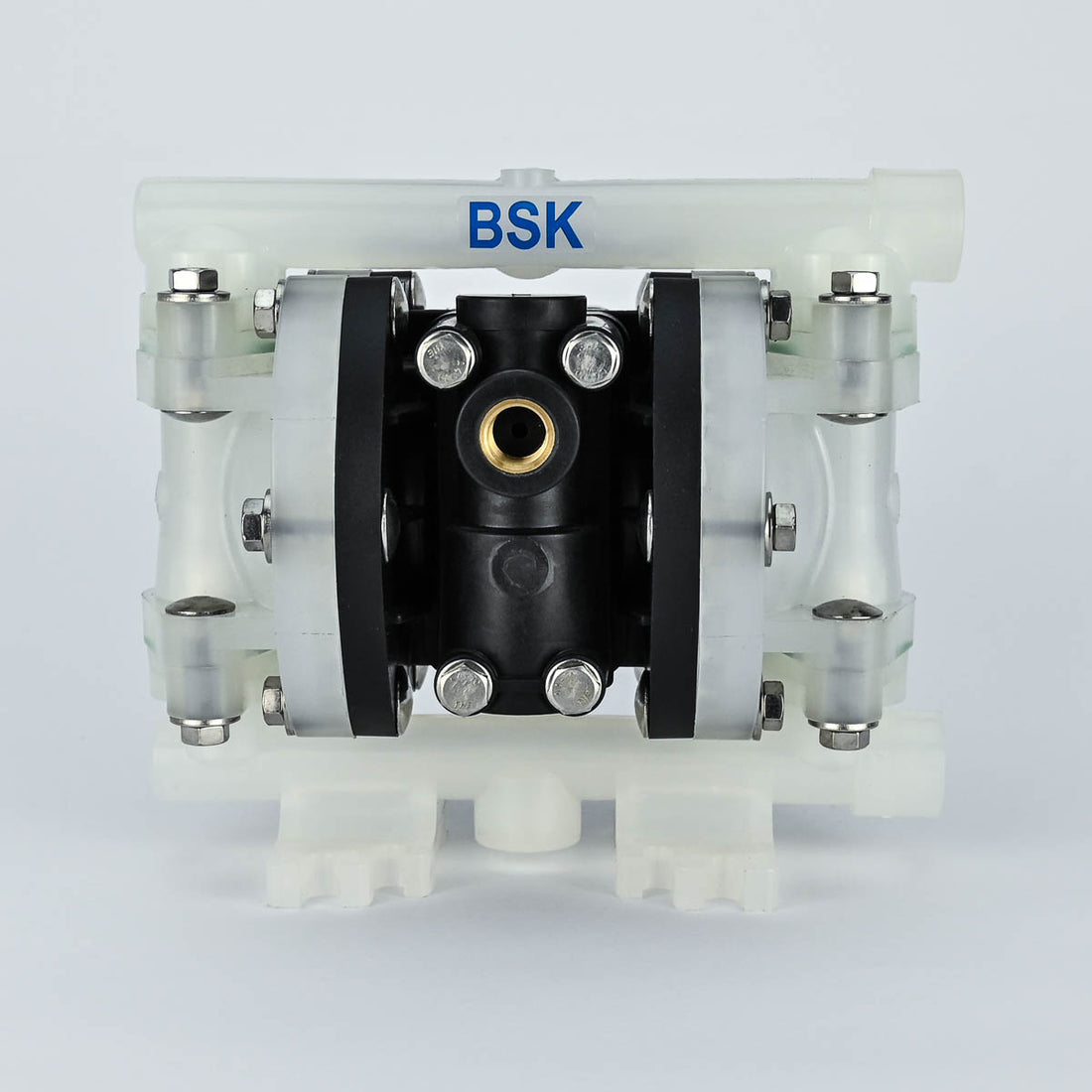

1/4 Inch AODD Pumps BP06PP-PTT4-B - Polypropylene Body PTFE Diaphragm -BSK

1/4 Inch AODD Pumps BP06PP-PTT4-B - Polypropylene Body PTFE Diaphragm -BSK

AED 900.00
AED 900.00
Sale Sold out
Shipping calculated at checkout.

The BP06PP-PTT4-B is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable polypropylene body and a chemically resistant PTFE diaphragm. Designed for micro-scale pure applications, this pump is engineered to reliably transfer high-purity chemicals and pure fluids in demanding laboratory and analytical environments. With a maximum flow rate of 26.1 L/Min and a maximum suction lift of 3.5 m, it provides efficient and safe operation for a wide range of applications
View full details

Specifications

  • Wetted Material: Polypropylene
  • Seat Material: PTFE
  • Ball Material: PTFE
  • Diaphragm Material: PTFE
  • O-ring Materials: NBR
  • Discharge Port: BSP
  • Fluid Outlet: 0.25"
  • Fluid Inlet: 0.25"
  • Max Flow: 28 L/Min
  • Max Suction Lift-Dry: 3.2 m
  • Max Air Pressure: 8.3 bar
  • Weight: 2.8kg
  • Noise: <70dB
  • Temperature Range: -40°C to 149°C
  • Dimensions/Size: 145×215×165mm
  • Color/Finish: Natural Polypropylene
  • Applications/Industry: Micro-Scale Ultra-Pure Processing
Product Features
  • Micro-Scale Polypropylene Body Material: Provides exceptional chemical resistance and ultra-lightweight durability for premium micro-scale ultra-pure processing environments requiring maximum chemical compatibility and contamination prevention.
  • Premium PTFE Wetted Parts: Maximum chemical compatibility with enhanced durability for extended service life in micro-scale ultra-pure environments requiring absolute chemical inertness and purity maintenance.
  • PTFE Diaphragm Material: Superior chemical compatibility and temperature resistance for handling micro-quantities of ultra-pure aggressive chemicals and high-temperature applications with contamination prevention.
  • 28 L/Min Max Flow: Enables ultra-precise processing of micro-scale ultra-pure chemicals, premium micro-precision fluid transfer, and ultra-pure micro-batch handling operations.
  • Self-Priming & Can Run Dry: Reduces downtime and prevents damage, critical for continuous micro-scale ultra-pure processing systems and premium micro-precision applications.
  • Seal-Less, Leak-Proof Design: Essential safety feature preventing costly spills and contamination from ultra-pure chemicals in premium micro-scale applications.
  • Air-Operated (Intrinsically Safe): Mandatory safety requirement for micro-scale ultra-pure environments where electrical equipment may pose contamination risks.
  • Extended Temperature Range (-40°C to 149°C): Handles extreme temperature micro-scale ultra-pure processes and thermal cycling applications in ultra-compact environments.
  • Ultra-High Chemical Resistance: Designed for the most demanding micro-scale ultra-pure applications requiring absolute chemical inertness and contamination prevention.
  • Premium Micro-Scale Construction: Enhanced build quality for extended service life in the most challenging micro-scale ultra-pure environments with maximum precision.
Applications & Industries
  • Micro-Scale Ultra-Pure Chemical Processing: Ultra-precise handling of ultra-pure acids, specialty solvents, and high-purity chemical processing requiring absolute contamination prevention in micro-scale operations.
  • High-Temperature Micro-Scale Processing: Micro-scale processing of heated ultra-pure chemicals, thermal cycling applications, and high-temperature chemical handling with contamination control and ultra-precision.
  • Advanced Pharmaceutical Micro-Manufacturing: Ultra-precise transfer of active pharmaceutical ingredients, ultra-pure solvents, and critical process chemicals in micro-scale GMP environments with maximum purity requirements.
  • Micro-Scale Biotechnology Ultra-Pure Processing: Ultra-precise handling of ultra-pure bioprocess fluids, specialty cleaning solutions, and high-purity process chemicals in micro-biotechnology applications requiring absolute contamination prevention.
  • Specialty Micro-Chemical & Fine Chemical Production: Micro-scale processing of high-value ultra-pure chemicals, reactive intermediates, and specialty products requiring zero contamination tolerance in ultra-precision environments.
  • Note: The BP06PP-PTT4-B represents the ultimate in micro-scale ultra-pure processing capability, combining ultra-compact polypropylene construction with premium PTFE wetted parts. This model provides maximum chemical compatibility with contamination prevention and ultra-precision control, making it ideal for critical micro-scale applications where chemical purity, temperatur
