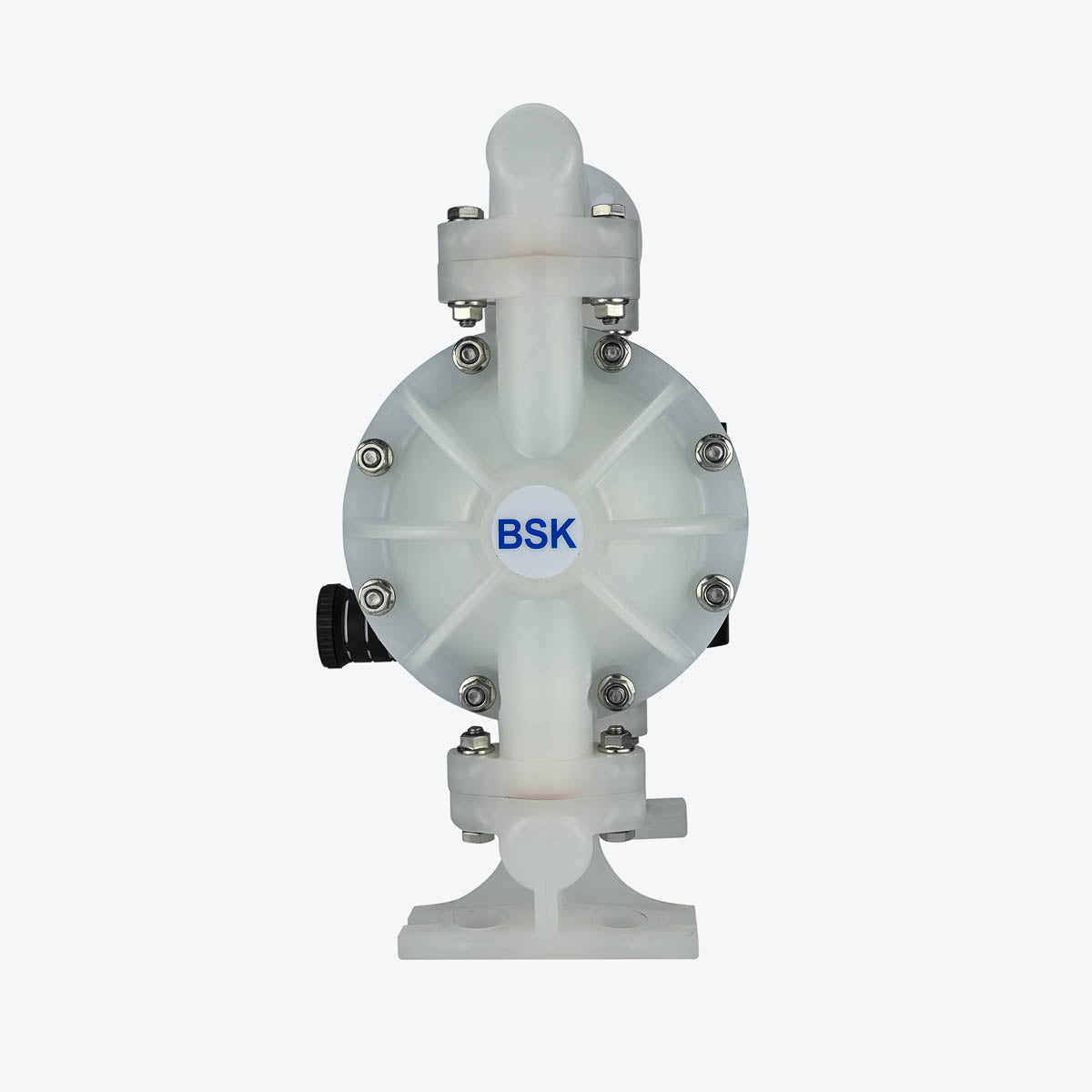

1.5 Inch Side flange AODD Pumps BA40PP-PTT4-C - Polypropylene Body PTFE Diaphragm -BSK
Shipping calculated at checkout.
In stock
Delivery information
- Delivery across the UAE
Same day when ordered before 2 PM UAE time. No delivery on Sundays.
The BA40PP-PTT4-C is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable polypropylene body and a chemically resistant PTFE diaphragm. Designed for high purity medium flow applications, this pump is engineered to reliably transfer high-purity chemicals and pure fluids in demanding chemical processing... Read more
Specification
| Parameter | Value |
|---|---|
| Wetted Material | Polypropylene |
| Seat Material | PTFE |
| Ball Material | PTFE |
| Diaphragm Material | PTFE |
| O-ring Materials | NBR |
| Discharge Port | Tri-Clamp |
| Fluid Outlet | 1.5" |
| Fluid Inlet | 1.5" |
| Max Flow | 380 L/Min |
| Max Suction Lift-Dry | 7.6 m |
| Max Air Pressure | 8.3 bar |
| Weight | 11.5kg |
| Noise | <76dB |
| Temperature Range | -40°C to 149°C |
| Dimensions/Size | 318×432×295mm |
| Color/Finish | Natural Polypropylene |
| Applications/Industry | High-Volume Ultra-Pure Sanitary Processing |
| Polypropylene Body Material | Provides exceptional chemical resistance and lightweight durability for premium high-volume ultra-pure sanitary processing environments requiring maximum chemical compatibility and contamination prevention. |
| Premium PTFE Wetted Parts | Maximum chemical compatibility with enhanced durability for extended service life in high-volume ultra-pure sanitary environments requiring absolute chemical inertness and purity maintenance. |
| PTFE Diaphragm Material | Superior chemical compatibility and temperature resistance for handling large quantities of ultra-pure aggressive chemicals and high-temperature sanitary applications with contamination prevention. |
| 380 L/Min Max Flow | Enables highly efficient processing of large volumes of ultra-pure chemicals, premium high-volume sanitary fluid transfer, and industrial-scale high-purity chemical handling operations. |
| Parameter | Value |
|---|---|
| Self-Priming & Can Run Dry | Reduces downtime and prevents damage, critical for continuous high-volume ultra-pure sanitary processing systems and premium large-scale clean applications. |
| Industrial Tri-Clamp Sanitary Connections | Provides large-scale quick-disconnect sanitary connections for easy cleaning, maintenance, and compliance with high-volume ultra-pure processing standards. |
| Seal-Less, Leak-Proof Design | Essential safety feature preventing costly spills and contamination from large volumes of ultra-pure chemicals in premium high-volume sanitary applications. |
| Air-Operated (Intrinsically Safe) | Mandatory safety requirement for high-volume ultra-pure sanitary environments where electrical equipment may pose contamination risks in large-scale applications. |
| Extended Temperature Range (-40°C to 149°C) | Handles extreme temperature high-volume ultra-pure processes and thermal cycling applications in large-scale sanitary environments. |
| Ultra-High Chemical Resistance | Designed for the most demanding high-volume ultra-pure sanitary applications requiring absolute chemical inertness and contamination prevention with high throughput. |
| High-Volume Ultra-Pure Sanitary Chemical Processing | Large-scale handling of ultra-pure acids, specialty solvents, and high-purity chemical processing requiring absolute contamination prevention in clean facilities with high-flow sanitary connections. |
| Large-Scale High-Temperature Ultra-Pure Processing | High-volume processing of heated ultra-pure chemicals, thermal cycling applications, and high-temperature sanitary chemical handling with contamination control and high throughput. |
| Industrial Advanced Pharmaceutical Manufacturing | High-capacity transfer of active pharmaceutical ingredients, ultra-pure solvents, and critical process chemicals in large-scale GMP sanitary environments with maximum purity requirements. |
| Large-Scale Biotechnology Ultra-Pure Processing | High-volume handling of ultra-pure bioprocess fluids, specialty cleaning solutions, and high-purity process chemicals in biotechnology applications requiring absolute contamination prevention. |
| Industrial Specialty Chemical & Fine Chemical Production | High-capacity processing of high-value ultra-pure chemicals, reactive intermediates, and specialty products requiring zero contamination tolerance in large-scale sanitary environments. |
| Note | The BA40PP-PTT4-C represents the premium tier of high-volume sanitary chemical processing pumps, featuring enhanced PTFE construction with polypropylene body optimized for large-scale ultra-pure applications. This model provides maximum chemical compatibility with contamination prevention and high throughput, making it ideal for critical high-volume sanitary applications where chemical purity, temperature resistance, sanitary compliance, high-volume capacity, and long-term reliability are paramount for operational success and regulatory compliance. |
| Ultimate High-Volume Ultra-Pure Sanitary Construction | Polypropylene body with premium PTFE wetted parts and large tri-clamp connections providing maximum chemical compatibility and contamination prevention with high throughput |
| Ultra-High Temperature High-Volume Performance | Superior operation across -40°C to 149°C for extreme temperature high-volume ultra-pure sanitary processes |
| Maximum Chemical Inertness | Absolute chemical compatibility with the most aggressive and reactive compounds in high-volume ultra-pure sanitary applications |
| High-Volume Ultra-Pure Sanitary Applications | Designed for pharmaceutical, biotechnology, and specialty chemical applications requiring zero contamination and sanitary compliance with high throughput |
| Advanced High-Volume Sanitary AODD Technology | Premium self-priming, seal-less operation optimized for critical high-volume ultra-pure sanitary handling |
| Reliable High-Volume Ultra-Pure Performance Flow | Consistent 380 L/Min flow capacity for demanding large-scale ultra-pure sanitary processing |
| Extended Operating Range | Superior performance in extreme temperature and aggressive chemical environments with high-volume sanitary compliance |
| Critical High-Volume Sanitary Safety Design | Intrinsically safe operation essential for large-scale ultra-pure sanitary environments |
