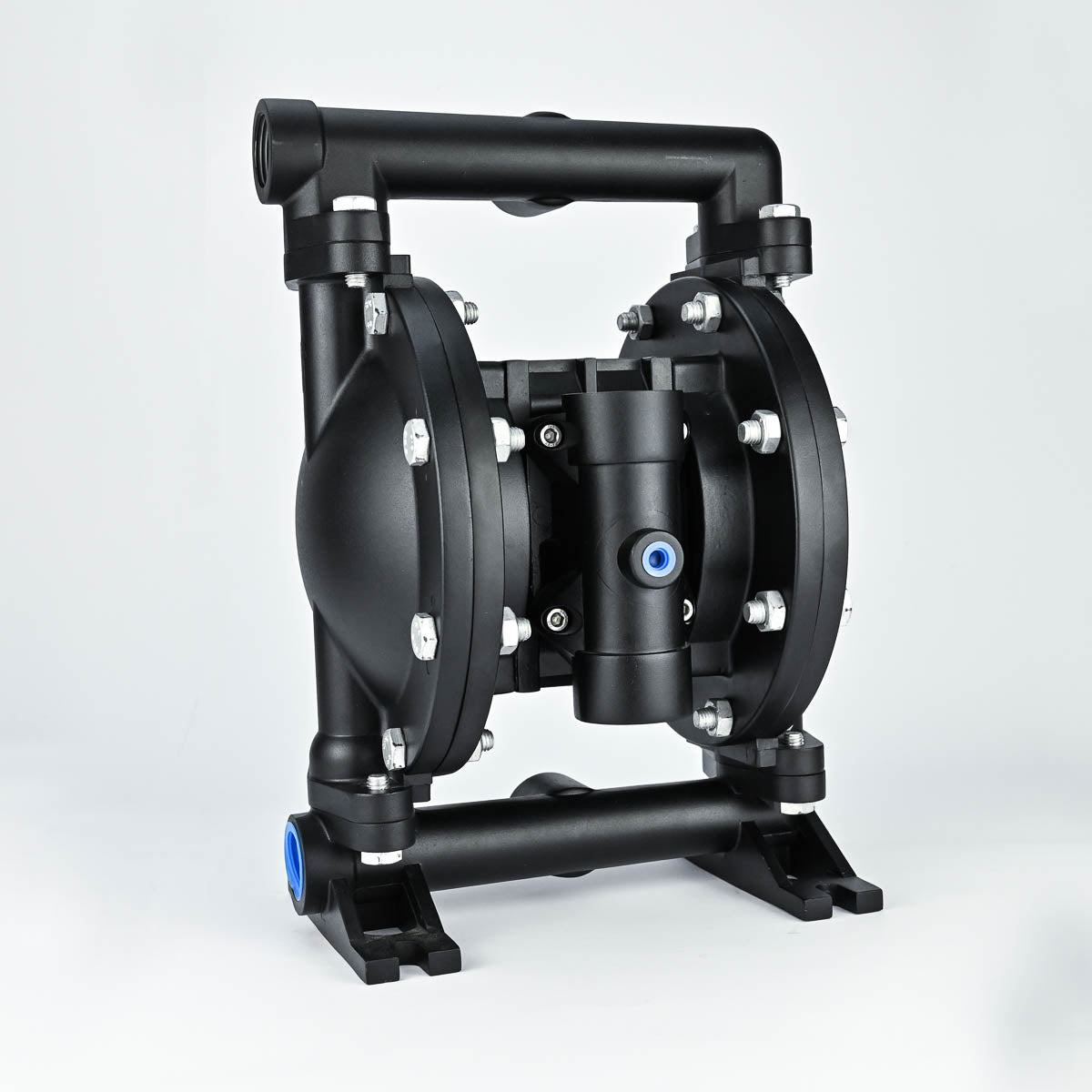

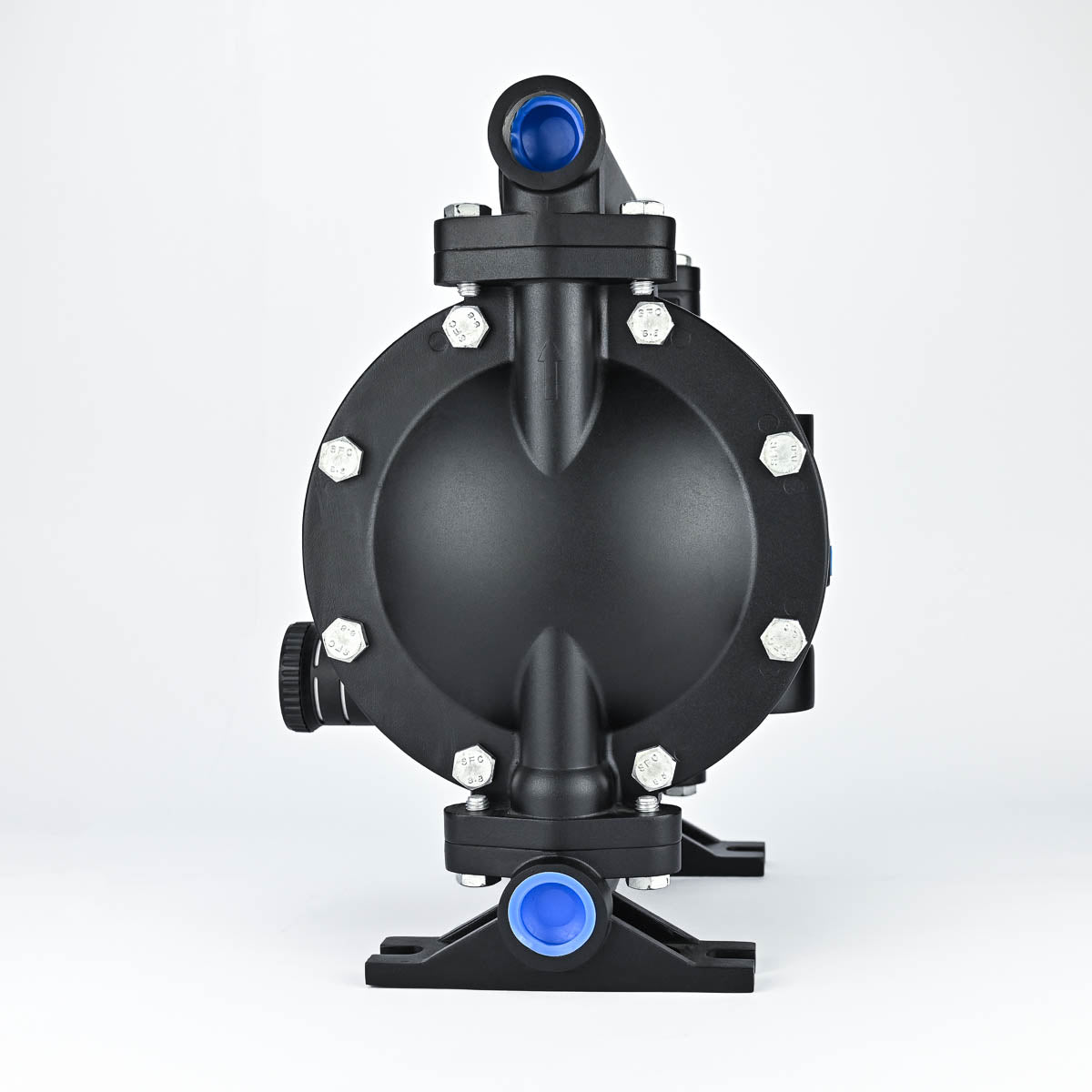

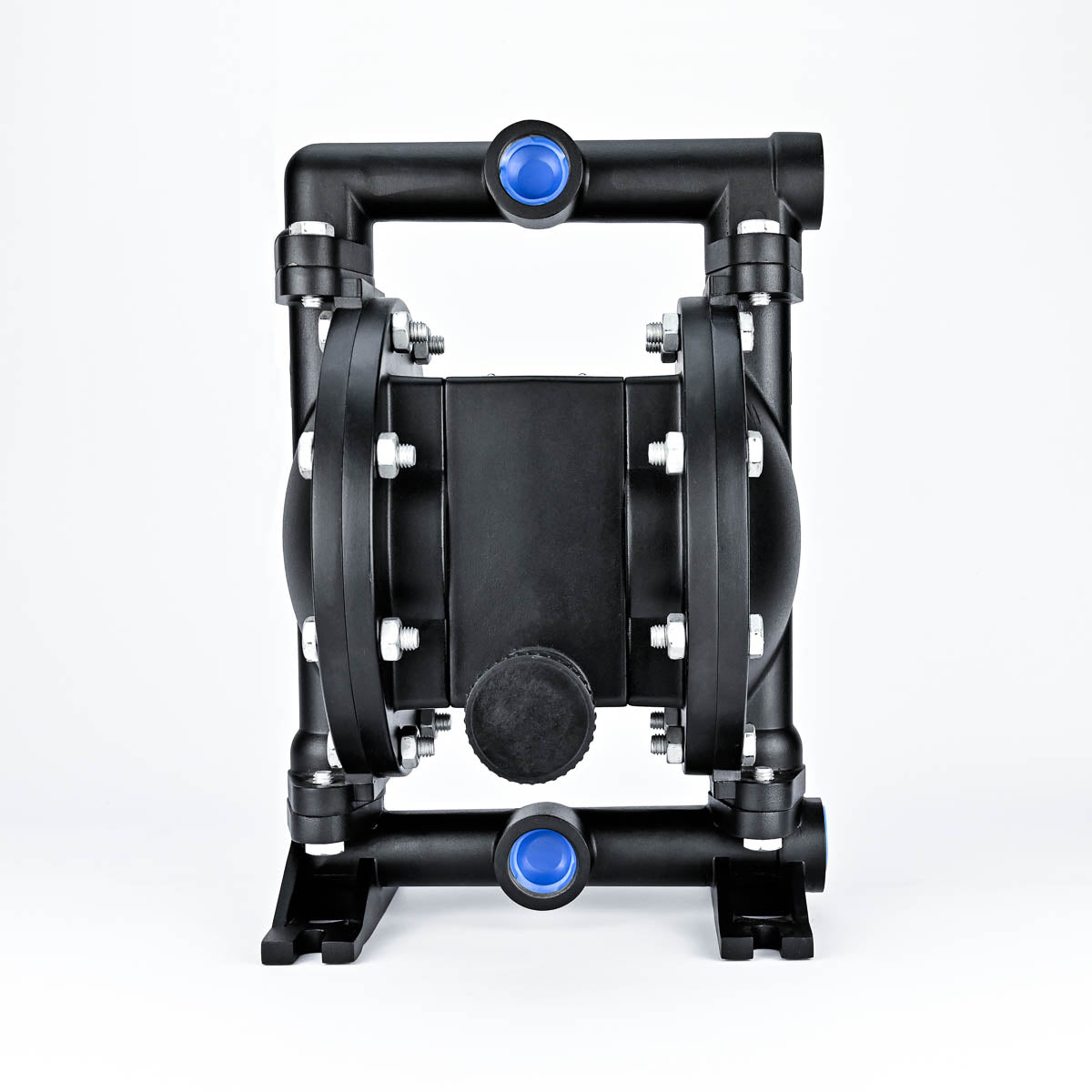

1 Inch AODD Pumps BA25AL-PTT3-A - Aluminium Body PTFE Diaphragm -BSK

SKUBA25AL-PTT3-ABrandBSK

AED 1,950.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The BA25AL-PTT3-A is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable aluminum body and a chemically resistant PTFE diaphragm. Designed for chemical transfer and pure applications, this pump is engineered to reliably transfer chemicals and pure fluids in demanding chemical processing and high-purity environments. With a maximum flow rate of 192 L/Min and a maximum suction lift of 6.7 m, it provides efficient and safe operation for a wide range of applications

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Wetted Material: Aluminium
Seat Material: PTFE
Ball Material: PTFE
Diaphragm Material: PTFE
O-ring Materials: NBR
Discharge Port: BSP
Fluid Outlet: 1"
Fluid Inlet: 1"
Max Flow: 192 L/Min

Max Suction Lift-Dry: 6.7 m
Max Air Pressure: 8.3 bar
Weight: 9.5kg
Noise: <75dB
Temperature Range: -40Â°C to 149Â°C
Dimensions/Size: 249Ã—360Ã—245mm
Color/Finish: Anodized Aluminium
Applications/Industry: Chemical Processing

Product Features

Aluminum Body Material: Provides excellent resistance to corrosion and lightweight durability, ensuring longevity and reliability in aggressive chemical environments.
All-PTFE Wetted Parts Design: Provides maximum chemical compatibility and temperature resistance for the most demanding chemical applications.
PTFE Diaphragm Material: Offers superior chemical compatibility and temperature resistance for handling aggressive chemicals, acids, and high-temperature process fluids.
192 L/Min Max Flow: Enables efficient and rapid chemical processing, aggressive fluid transfer, and high-duty chemical handling operations.
Self-Priming & Can Run Dry: Reduces downtime and prevents damage, ideal for continuous aggressive chemical processing operations.
Seal-Less, Leak-Proof Design: Eliminates the risk of costly leaks and protects the environment from aggressive chemicals.
Air-Operated (Intrinsically Safe): Critical for hazardous chemical environments where electrical sparks could cause dangerous reactions.
High Temperature Range (-40Â°C to 149Â°C): Handles high-temperature chemical processes and extreme operating conditions.
Maximum Chemical Resistance: PTFE construction provides unmatched compatibility with aggressive acids, solvents, and corrosive chemicals.
Anodized Aluminum Finish: Enhanced corrosion resistance for long-term reliability in aggressive chemical environments.

Applications & Industries

Aggressive Chemical Processing: Handling strong acids, caustic solutions, aggressive solvents, and corrosive chemical processing fluids requiring maximum chemical resistance.
High-Temperature Applications: Processing heated chemicals, high-temperature process fluids, and applications requiring operation up to 149Â°C.
Pharmaceutical Manufacturing: Transferring active pharmaceutical ingredients, cleaning solvents, and process chemicals requiring highest purity and chemical compatibility.
Semiconductor Manufacturing: Handling ultra-pure chemicals, aggressive etchants, and specialty processing fluids in clean room environments.
Specialty Chemical Production: Processing aggressive intermediates, specialty solvents, and high-value chemicals requiring zero contamination risk.
Note: The BA25AL-PTT3-A's all-PTFE wetted parts construction provides maximum chemical compatibility and temperature resistance for the most demanding applications. This model is specifically designed for aggressive chemical processing where standard materials would fail, offering unmatched performance in corrosive environments while maintaining the reliability of proven AODD technology.

Why Choose This Pump?

The BA25AL-PTT3-A from BSK Fluid Technology represents the pinnacle of chemical compatibility and temperature resistance, combining all-PTFE construction with proven AODD technology to deliver unmatched performance in the most demanding chemical processing applications.

Key Product Highlights:

All-PTFE Wetted Parts Construction: Maximum chemical compatibility with aggressive acids, caustic solutions, and corrosive chemicals
High Temperature Performance: Operates reliably across -40Â°C to 149Â°C for high-temperature chemical processes
Maximum Chemical Resistance: Unmatched compatibility with aggressive chemicals where other materials fail
Pharmaceutical Grade Performance: Suitable for high-purity applications requiring zero contamination risk
Proven AODD Technology: Self-priming, seal-less operation ideal for aggressive chemical handling
Reliable Flow Capacity: Consistent 192 L/Min flow for demanding chemical processing operations
Extended Temperature Range: Superior performance in high-temperature applications up to 149Â°C
Intrinsically Safe Design: Critical safety feature for aggressive chemical environments

The BA25AL-PTT3-A is the ultimate choice for aggressive chemical processing, pharmaceutical manufacturing, and specialty chemical production where maximum chemical compatibility, temperature resistance, and zero contamination risk are essential for operational success and safety.
