AODD-Pumps - BA25AL-P991-A - Aluminium Body 1 Inch

1 Inch AODD Pumps BA25AL-P991-A - Aluminium Body Santoprene Diaphragm -BSK

SKU BA25AL-P991-ABrand BSK

AED 1,700.00 excl. VAT

Shipping calculated at checkout.

In stock

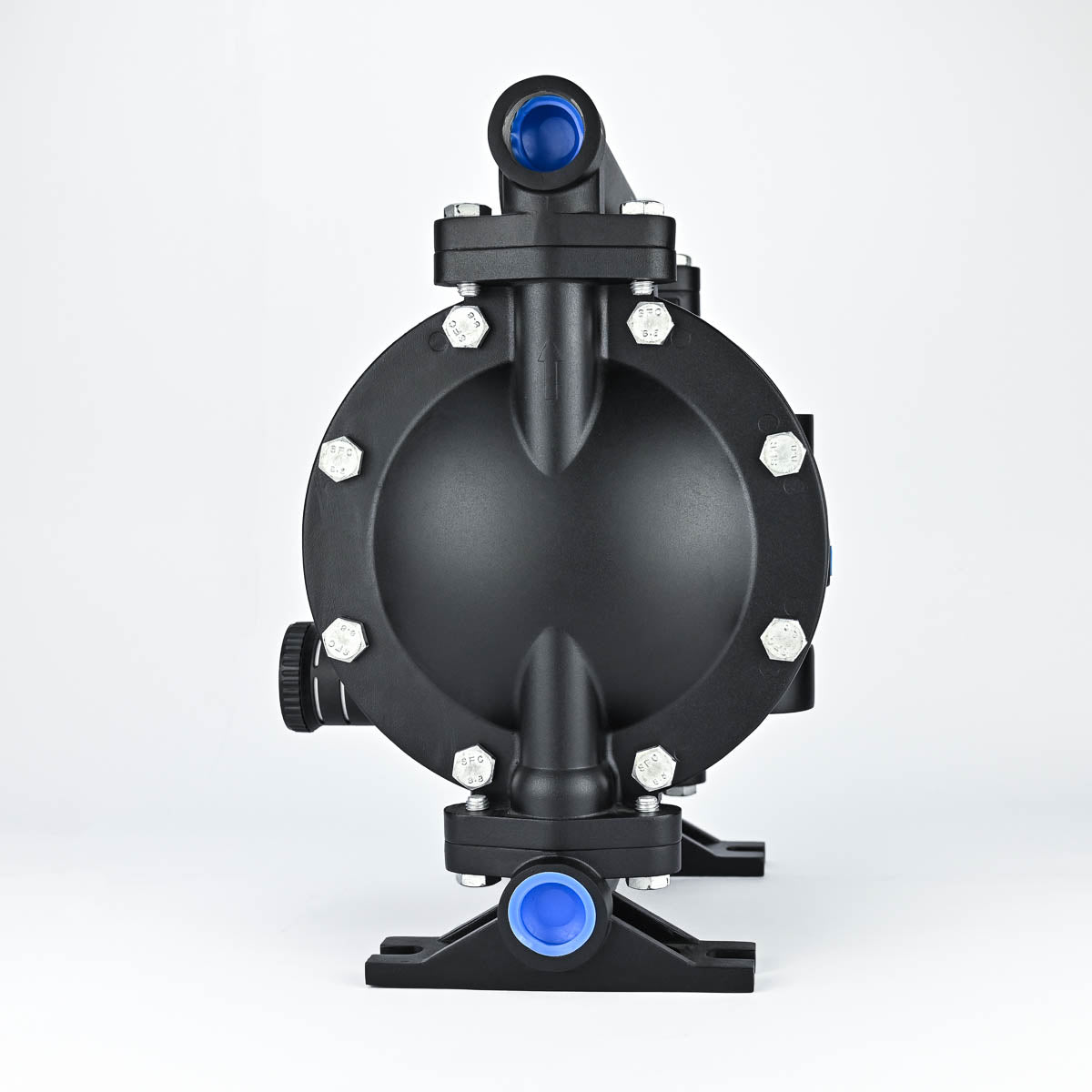

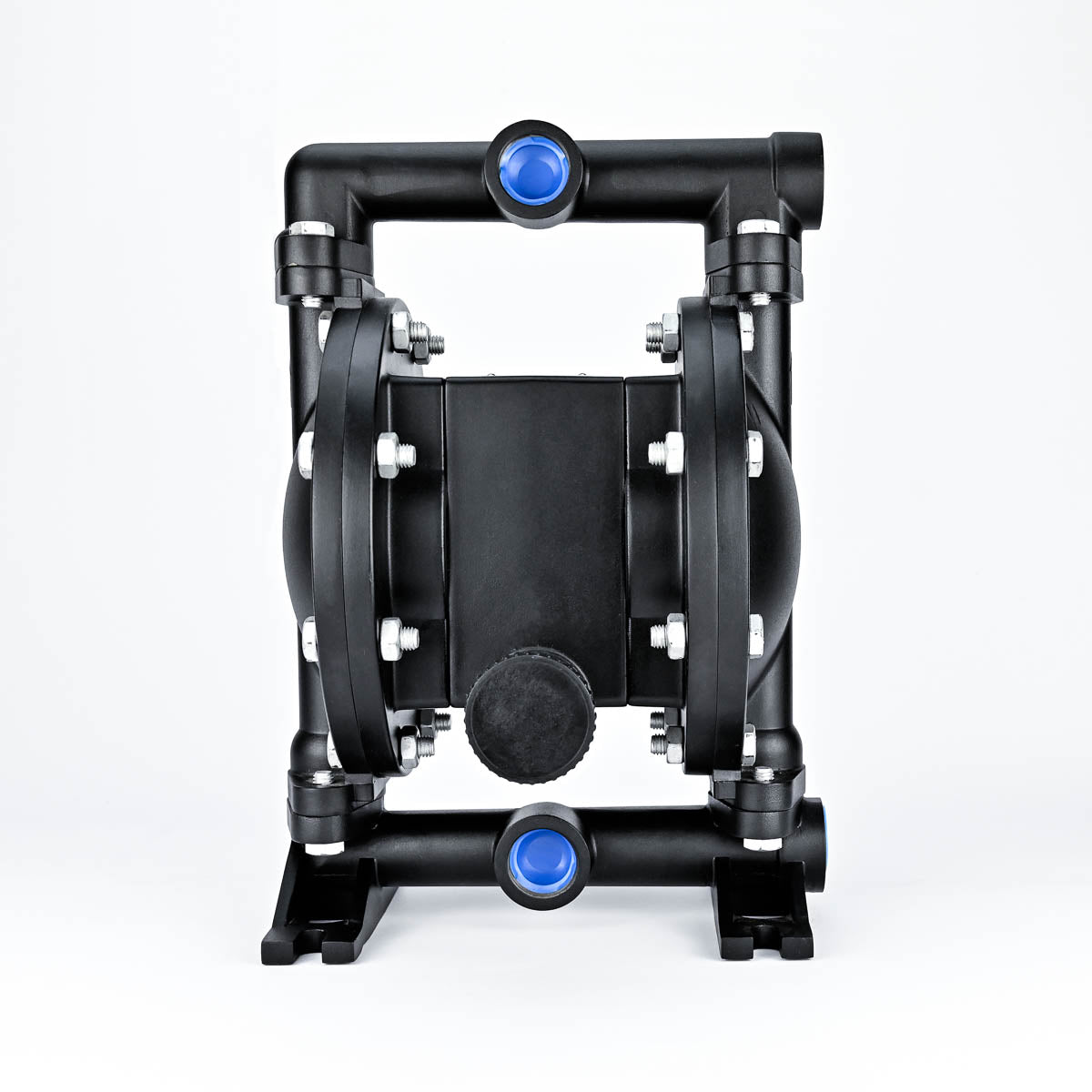

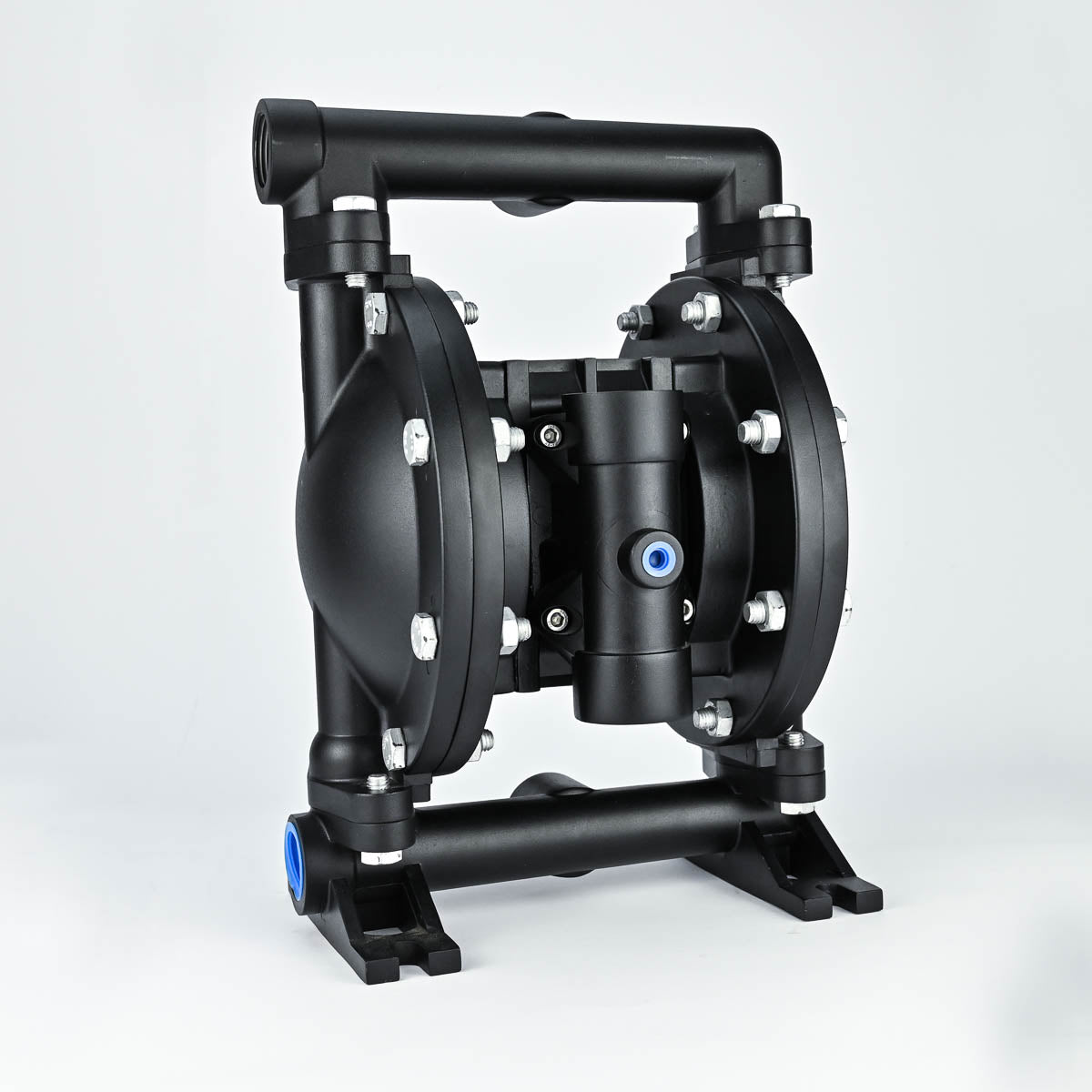

The BA25AL-P991-A is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable aluminum body and a chemically resistant Santoprene diaphragm. Designed for standard duty performance in general chemical applications, this pump is engineered to reliably transfer chemicals and treated water in demanding chemical... Read more

Pickup available
at Creative Ajman Showroom

Usually ready in 24 hours

View store
information

Specification

Parameter	Value
Wetted Material	Aluminium
Seat Material	UPE
Ball Material	Santoprene
Diaphragm Material	Santoprene
O-ring Materials	NBR
Discharge Port	BSP
Fluid Outlet	1"
Fluid Inlet	1"
Max Flow	192 L/Min
Max Suction Lift-Dry	6.7 m
Max Air Pressure	8.3 bar
Weight	9.5kg
Noise	<75dB
Temperature Range	-40°C to 107.2°C
Dimensions/Size	249×360×245mm
Color/Finish	Anodized Aluminium
Applications/Industry	Chemical Processing
Aluminum Body Material	Provides excellent resistance to corrosion and lightweight durability, ensuring longevity and reliability in chemical processing environments.
UPE Seat Design	Provides enhanced chemical compatibility compared to standard seats, offering superior resistance to chemical degradation for extended service life.
Santoprene Diaphragm Material	Offers superior compatibility and lasting performance with fluids like mild acids, general chemicals, water treatment solutions, and industrial process fluids.
192 L/Min Max Flow	Enables efficient and rapid chemical transfer, water treatment processing, and general chemical handling operations.

Parameter	Value
Self-Priming & Can Run Dry	Reduces downtime and prevents damage, simplifying operation in automated chemical processing systems.
Seal-Less, Leak-Proof Design	Eliminates the risk of costly leaks and protects the environment from hazardous fluids.
Air-Operated (Intrinsically Safe)	Can be used in hazardous environments where electrical sparks are a concern, making it ideal for explosive atmospheres.
Chemical Grade Configuration	Specifically designed for general chemical applications with materials selected for broad chemical compatibility.
Wide Temperature Range (-40°C to 107.2°C)	Ensures reliable operation across diverse chemical processing conditions and environmental variations.
Anodized Aluminum Finish	Provides enhanced corrosion resistance and professional appearance for long-term durability in chemical environments.
Chemical Processing	Transferring acids, general chemicals, industrial solvents, and chemical processing fluids with enhanced chemical compatibility.
Water Treatment	Handling chemical additives, acid solutions, treatment chemicals, and process water in municipal and industrial water treatment facilities.
Paint & Coatings	Handling water-based paints, mild solvents, cleaning agents, and general coating materials in manufacturing operations.
General Manufacturing	For chemical transfer, acid handling, drum emptying, and machine supply in applications requiring enhanced chemical resistance.
Pulp & Paper	Transferring process chemicals, bleaching agents, mild acids, and general paper mill chemicals in standard production operations.
Note	The BA25AL-P991-A's UPE seat material provides superior chemical resistance compared to the 9991-A model, making it specifically designed for chemical grade applications. The combination of aluminum body with UPE seats and Santoprene components offers enhanced compatibility with acids and general chemicals while maintaining cost-effectiveness for standard chemical processing operations. This model bridges the gap between basic water handling and more demanding chemical applications.
Aluminum Body Construction	Lightweight yet durable design providing excellent corrosion resistance for chemical processing environments
UPE Seat Technology	Enhanced chemical resistance compared to standard seats, offering superior compatibility with acids and general chemicals
Santoprene Diaphragm	Reliable elastomer providing consistent performance across diverse chemical applications
Chemical Grade Configuration	Specifically designed for general chemical applications with materials selected for broad chemical compatibility
Proven AODD Technology	Self-priming, seal-less operation that can run dry without damage
Medium Flow Capacity	Delivers reliable 192 L/Min flow through 1" BSP ports for efficient chemical transfer operations
Wide Operating Range	Functions reliably across -40°C to 107.2°C temperature range for diverse chemical processing conditions
Intrinsically Safe Operation	Air-powered design eliminates electrical spark risks in hazardous chemical environments
