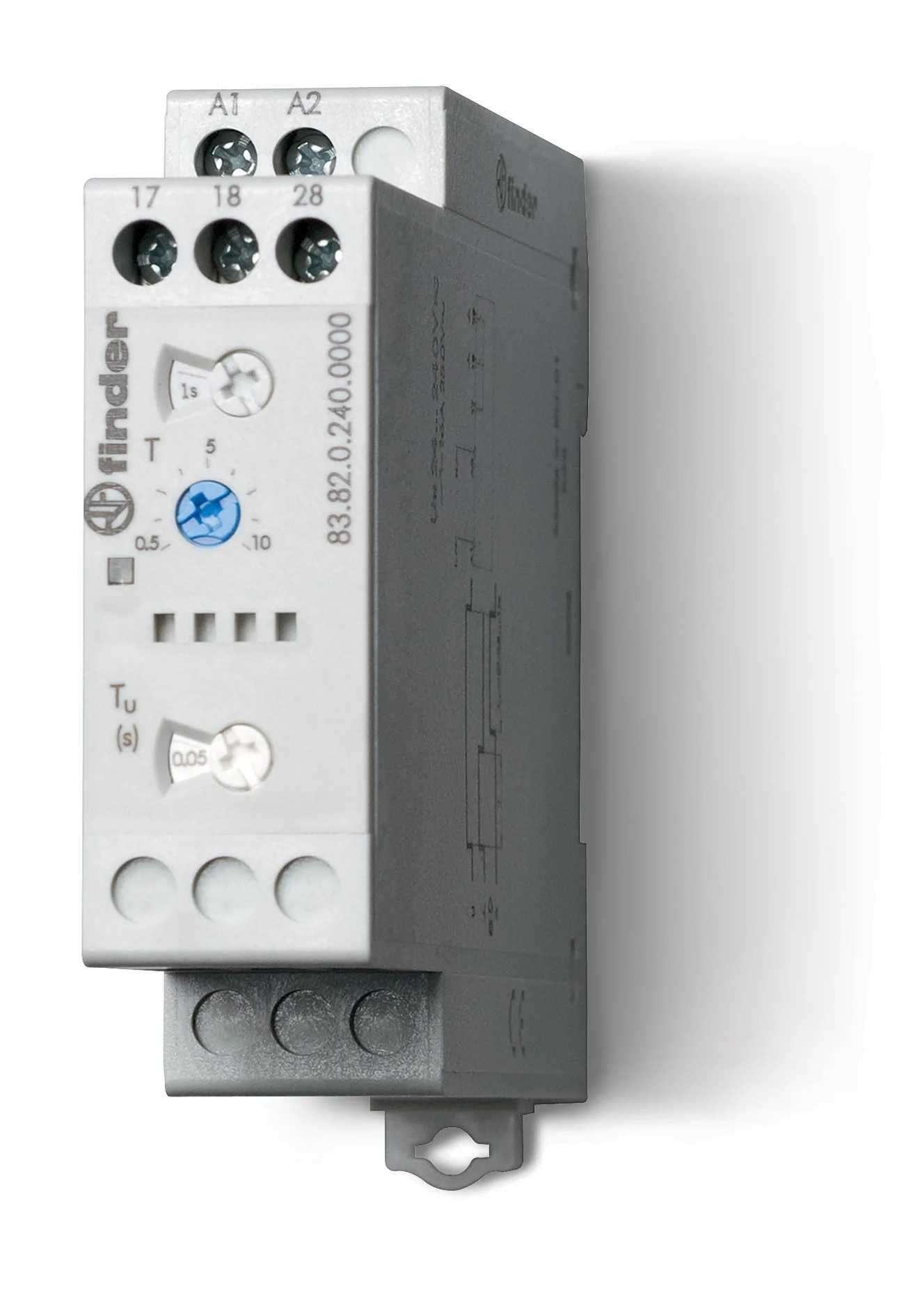

83.82.0.240.0000 - Finder Star Delta Timer Relay, 0.05-10 min, 0.05-10 s, 0.05-10 d, 0.05-10h 24 – 240 V AC/DC (DIN Rail)

83.82.0.240.0000 - Finder Star Delta Timer Relay, 0.05-10 min, 0.05-10 s, 0.05-10 d, 0.05-10h 24 – 240 V AC/DC (DIN Rail)

SKU83.82.0.240.0000BrandFinder
AED 152.00
AED 152.00
Sale Sold out
Shipping calculated at checkout.

The 83.82.0.240.0000 is a versatile timer relay manufactured by Finder, part of the 83 series. Featuring Star Delta timing mode with a configurable time range of 0.05-10 min, 0.05-10 s, 0.05-10 d, 0.05-10h across Days, Hours, Minutes, Seconds increments, this timer relay operates on a 24 – 240 V AC/DC supply voltage. It provides DPST output contacts rated for 16 A at 265 V AC/DC, with Screw termination and DIN Rail installation. With single timer, a External power supply configuration, it delivers precise, repeatable time control for industrial automation sequences, motor starting, lighting control, HVAC scheduling, and process timing applications.

View full details
ParameterValue
Supply Voltage
24 to 240 V AC/DC
Mounting Type
DIN-Rail
Mode of Operation
Star-Delta
Time Range
0.05-10 min, 0.05-10 s, 0.05-10 d, 0.05-10 h
Number of Contacts
2
Number of Timer Functions
Single
Contact Configuration
DPST
Time Increment
days, hours, minutes, seconds
Maximum Current
16 A
Maximum Voltage
265 V AC/DC
Terminal Type
Screw
Switch Configuration
DPDT-NO
ParameterValue
Width
22.5 mm
Minimum Voltage
16.8 V AC/DC
Power Supply
External
Minimum Current
16 A
Series
83 Series
Depth
100.3 mm
Maximum Operating Temperature
60 °C
Length
78.8 mm
Minimum Operating Temperature
-20 °C
Time Delay
200 ms
Contact Material
Silver-Nickel
