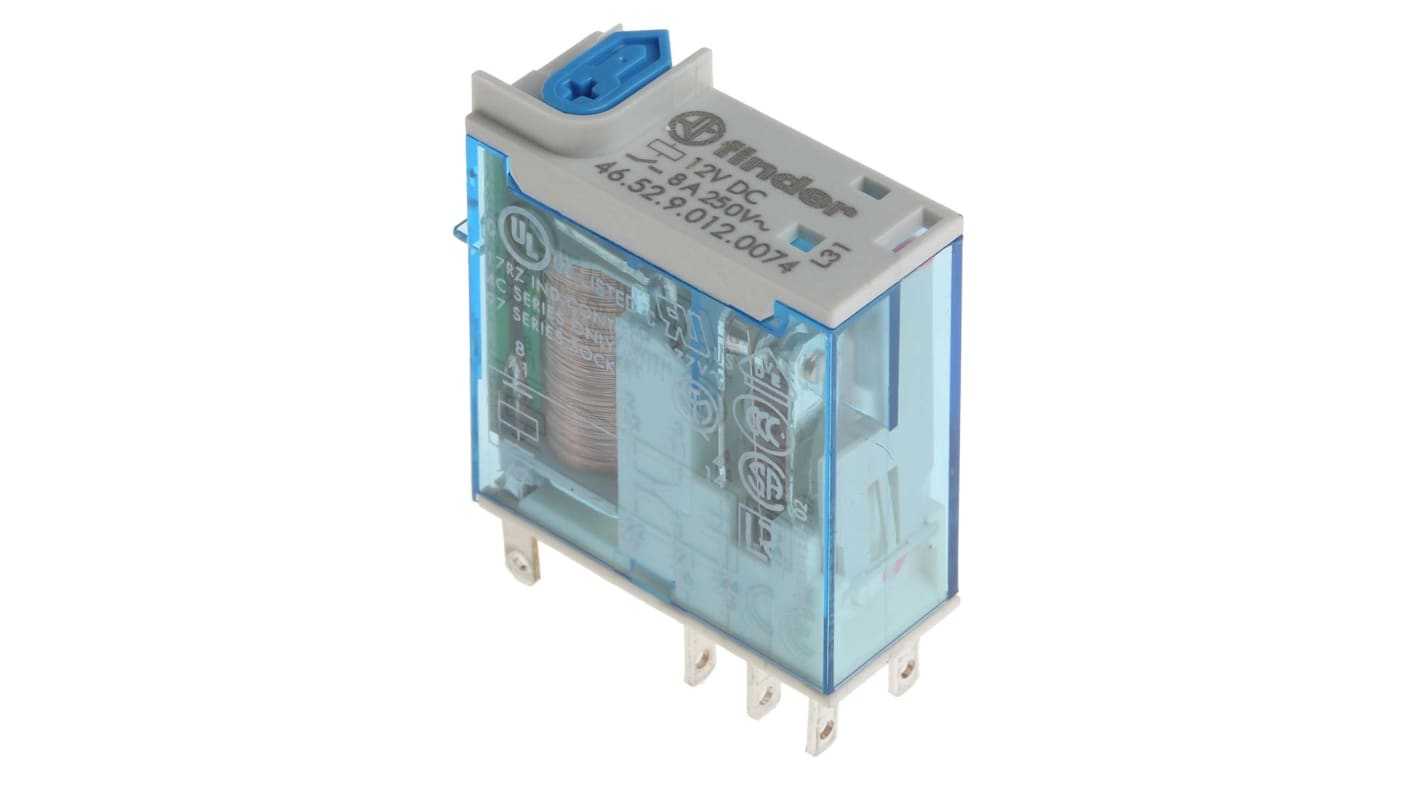

Finder Power Relays 46.52.9.012.0074

Finder Power Relays 46.52.9.012.0074

AED 25.84
AED 25.84
Sale Sold out
Shipping calculated at checkout.

Finder, Series 46 Minirel Industrial Minirel Solder Plug-in Terminals 2.5x0.5 mm, Double LED test button DC non-polarized mechanical indicator, 12 V, 2 contacts, 8 A, AgNi, DC, Exchange
View full details

Specifications

  • Brand: Finder
  • Coil Voltage: 12V dc
  • Contact Configuration: DPDT
  • Mounting Type: PCB Mount
  • Switching Current: 8A
  • Number of Poles: 2
  • Latching: No
  • Terminal Type: PCB Pin
  • Maximum Switching Voltage AC: 250V ac
  • Maximum Switching Voltage (AC): 250V ac
  • Maximum Switching Voltage DC: 15V dc
  • Maximum Switching Voltage (DC): 15V dc
  • Length: 29mm
  • Coil Resistance: 300?
  • Coil Power: 500mW
  • Series: 46 Series
  • Depth: 12.4mm
  • Contact Material: Silver Alloy
  • Height: 32.8mm
  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: +70°C
  • Isolation Coil To Contact: 6kV
  • Maximum Switching Power AC: 2 kVA
  • Application: General Purpose
  • Country of Origin: Italy
