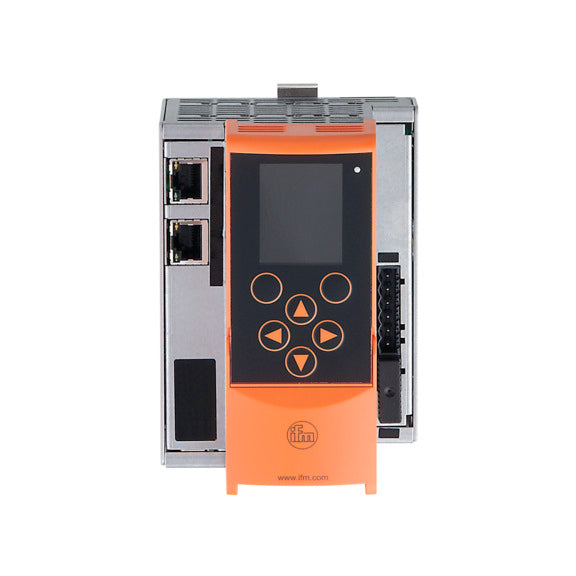

IFM AC1401 - AS-Interface PROFINET Gateway, AS-i to PROFINET, 1 Master

IFM AC1401 - AS-Interface PROFINET Gateway, AS-i to PROFINET, 1 Master

SKUAC1401BrandIFM
AED 4,889.82
AED 5,433.13 AED 4,889.82
Sale Sold out
Shipping calculated at checkout.

IFM AC1401 AS-Interface PROFINET Gateway — single-master AS-i / PROFINET gateway with colour display, CODESYS programmable. AS-Interface PROFINET gateway, 1 AS-i master (M4, v3.0), PROFINET + Modbus TCP/IP RJ45, colour LCD, DIN-rail, 18...32 V DC, IP20.

MPN / SKU: AC1401

Also known as: IFM AC1401 gateway / fieldbus gateway.

AC1401 Applications

The IFM AC1401 is an AS-Interface gateway used to connect the AS-i sensor/actuator level to a PROFINET controller for fast, reliable data exchange. It is suited for machine and line control where distributed I/O is wired on AS-i and reported to a PLC over PROFINET or Modbus TCP. The colour display shows the status of all AS-i slaves for quick diagnosis, a quick-setup menu simplifies configuration and commissioning, and the gateway is freely programmable to IEC 61131-3 with CODESYS 2.3 for on-board logic.

AC1401 Specifications

Brand IFM Product Type AS-Interface PROFINET gateway
IFM Type Code AS-i Gateway 1Master PN Number of AS-i Masters 1 (M4 profile, AS-i v3.0)
Fieldbus PROFINET (100 MBaud, RJ45) Additional Interfaces Modbus TCP, TCP/IP, UDP/IP (RJ45)
Programming IEC 61131-3, CODESYS 2.3 Display Full-graphic colour LCD
Operating Voltage 18...32 V DC (AUX); AS-i 21...31.6 V DC Current Consumption < 500 mA
Mounting DIN rail TH35 (EN 60715) Dimensions 135.5 x 93 x 106.2 mm
Protection Rating IP 20 Ambient Temperature 0...60 °C
Electrical Connection Terminals ...2.5 mm² Weight 700 g

AC1401 -- Frequently Asked Questions (FAQ)

What is the IFM AC1401?

IFM AC1401 is a AS-Interface PROFINET Gateway -- single-master AS-i / PROFINET gateway with colour display, CODESYS programmable.

What is the IFM AC1401 used for?

The IFM AC1401 is an AS-Interface gateway used to connect the AS-i sensor/actuator level to a PROFINET controller for fast, reliable data exchange.

What are the key specifications of the IFM AC1401?

IFM AC1401 -- AS-Interface PROFINET gateway, 1 AS-i master (M4, v3.0), PROFINET + Modbus TCP/IP RJ45, colour LCD, DIN-rail, 18...32 V DC, IP20.

What output or connection does the IFM AC1401 have?

The IFM AC1401 has -- Connection: Terminals ...2.5 mm².

Is the IFM AC1401 available and where does it ship from?

Yes -- the IFM AC1401 is available to order and ships from the UAE with GCC-wide delivery.

View full details

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.
