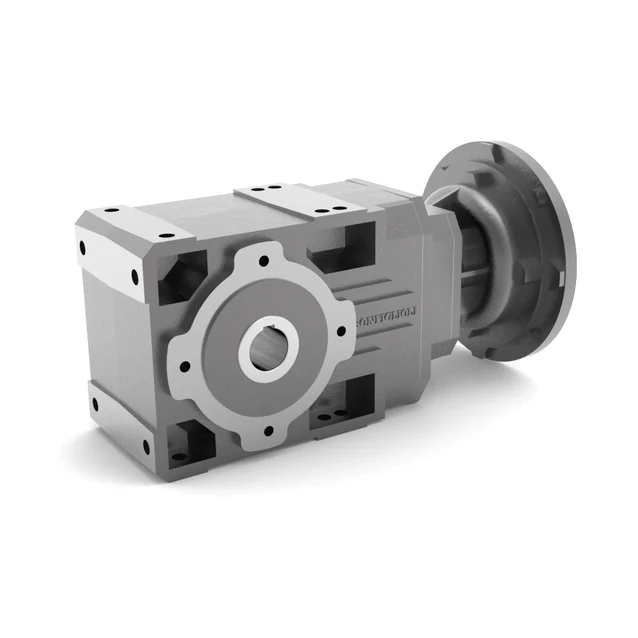

Bonfiglioli A 904 UH 90 1025 P112 B3 - Right Angle Bevel Helical Gearboxes, 1025 Ratio (90 Mm Shaft)

Bonfiglioli A 904 UH 90 1025 P112 B3 - Right Angle Bevel Helical Gearboxes, 1025 Ratio (90 Mm Shaft)

SKUA 904 UH 90 1025 P112 B3BrandBonfiglioli
AED 24,527.00
AED 24,527.00
Sale Sold out
Shipping calculated at checkout.

The A 904 UH 90 1025 P112 B3 is a high-performance Right Angle Bevel Helical Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 1025 gear ratio and a maximum output torque of 14000 Nm, this Bevel Helical configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 90 Mm shaft diameter, supports a maximum speed of 1.37 RPM, and is optimized for a 5 Hp / 3.7 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Bonfiglioli
  • Gear Ratio: 1025
  • Gearbox Type: Bevel Helical
  • Maximum Output Torque: 14000 Nm
  • Shaft Diameter: 90 Mm
  • Power Rating: 5 Hp / 3.7 Kw
  • Maximum Speed: 1.37 RPM
  • Input Speed: 1400
  • Housing Type: Cast Iron
  • Motor Frame Type: Iec Std. Frame 112 B5
  • Motor Coupling: Direct Coupled
  • Lubrication: Without Oil
  • Mounting Version: Universal Foot Mounting
  • Input Shaft Diameter: 28 Mm
  • Output Shaft Type: Hollow Output With Keyway
  • Efficiency: 0.89
  • Service Factor: 1
  • Warranty: 12 Months
