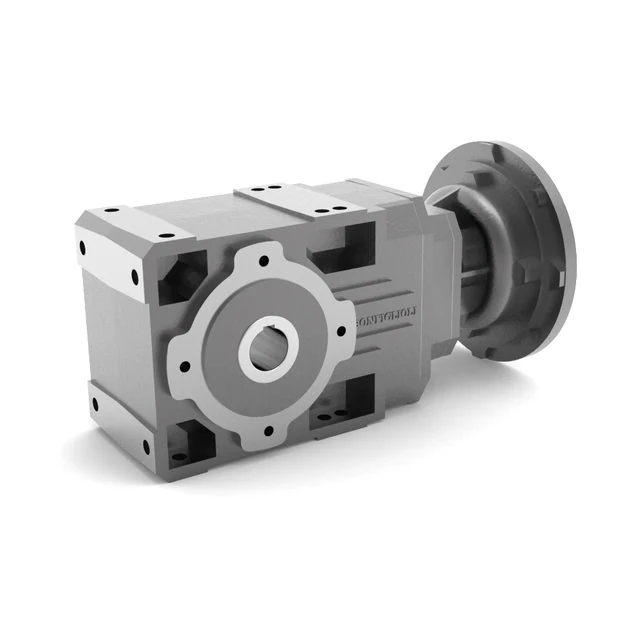

• Bonfiglioli - A 903 UH 100 596 P180 VA
1 1

Bonfiglioli A 903 UH 100 596 P180 VA - Right Angle Bevel Helical Gearboxes, 59.6 Ratio (100 Mm Shaft)

Bonfiglioli A 903 UH 100 596 P180 VA - Right Angle Bevel Helical Gearboxes, 59.6 Ratio (100 Mm Shaft)

SKUA 903 UH 100 596 P180 VABrandBonfiglioli
AED 24,011.00
AED 24,011.00
Sale Sold out
Shipping calculated at checkout.

The A 903 UH 100 596 P180 VA is a high-performance Right Angle Bevel Helical Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 59.6 gear ratio and a maximum output torque of 14000 Nm, this Bevel Helical configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 100 Mm shaft diameter, supports a maximum speed of 23.49 RPM, and is optimized for a 30 Hp / 22 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
59.6
Gearbox Type
Bevel Helical
Maximum Output Torque
14000 Nm
Shaft Diameter
100 Mm
Power Rating
30 Hp / 22 Kw
Maximum Speed
23.49 RPM
Input Speed
1400
Housing Type
Cast Iron
ParameterValue
Motor Frame Type
Iec Std. Frame 180 B5
Motor Coupling
Direct Coupled
Lubrication
Without Oil
Mounting Version
Universal Foot Mounting
Input Shaft Diameter
48 Mm
Output Shaft Type
Hollow Output With Keyway
Efficiency
0.91
Service Factor
1
Warranty
12 Months
