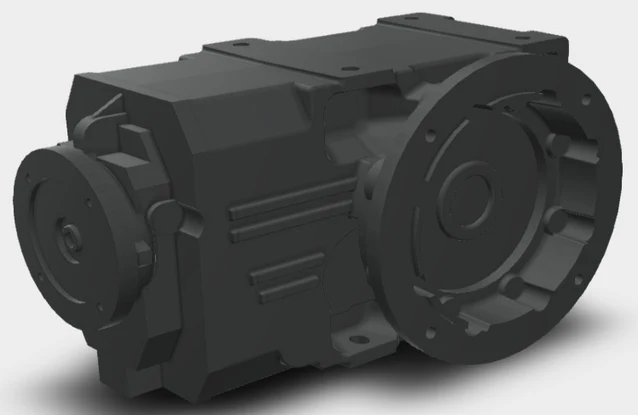

Bonfiglioli A 803 UH 90 F1A 116.0 P160 VA - Right Angle Bevel Helical Gearboxes, 116 Ratio (90 Mm Shaft)

Bonfiglioli A 803 UH 90 F1A 116.0 P160 VA - Right Angle Bevel Helical Gearboxes, 116 Ratio (90 Mm Shaft)

SKUA 803 UH 90 F1A 116.0 P160 VABrandBonfiglioli
AED 18,961.00
AED 18,961.00
Sale Sold out
Shipping calculated at checkout.

The A 803 UH 90 F1A 116.0 P160 VA is a high-performance Right Angle Bevel Helical Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 116 gear ratio and a maximum output torque of 8000 Nm, this Bevel Helical configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 90 Mm shaft diameter, supports a maximum speed of 12.07 RPM, and is optimized for a 20 Hp / 15 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
116
Gearbox Type
Bevel Helical
Maximum Output Torque
8000 Nm
Shaft Diameter
90 Mm
Power Rating
20 Hp / 15 Kw
Maximum Speed
12.07 RPM
Input Speed
1400
Housing Type
Cast Iron
ParameterValue
Motor Frame Type
Iec Std. Frame 160 B5
Motor Coupling
Direct Coupled
Lubrication
Without Oil
Mounting Version
Universal Short Flange Mounted
Input Shaft Diameter
42 Mm
Output Shaft Type
Hollow Output With Keyway
Efficiency
0.91
Service Factor
1
Warranty
12 Months
