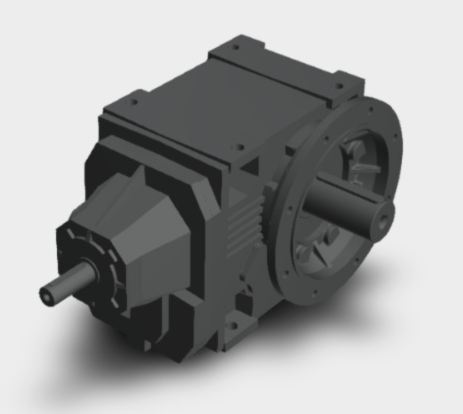

Bonfiglioli A 803 URF 1A 385 HS B7 - Right Angle Bevel Helical Gearboxes, 38.5 Ratio (90 Mm Shaft)

Bonfiglioli A 803 URF 1A 385 HS B7 - Right Angle Bevel Helical Gearboxes, 38.5 Ratio (90 Mm Shaft)

SKUA 803 URF 1A 385 HS B7BrandBonfiglioli
AED 18,186.00
AED 18,186.00
Sale Sold out
Shipping calculated at checkout.

The A 803 URF 1A 385 HS B7 is a high-performance Right Angle Bevel Helical Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 38.5 gear ratio and a maximum output torque of 8000 Nm, this Bevel Helical configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 90 Mm shaft diameter, supports a maximum speed of 36.36 RPM, and is optimized for a 25 Hp / 18.5 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
38.5
Gearbox Type
Bevel Helical
Maximum Output Torque
8000 Nm
Shaft Diameter
90 Mm
Power Rating
25 Hp / 18.5 Kw
Maximum Speed
36.36 RPM
Input Speed
1400
Housing Type
Cast Iron
ParameterValue
Motor Frame Type
Hs Solid Input Shaft
Motor Coupling
Via Chain Sprocket/Coupling/Belt Pulley
Lubrication
Without Oil
Mounting Version
Universal Short Flange Mounted
Input Shaft Diameter
42 Mm
Output Shaft Type
Single Solid Output With Keyway
Efficiency
0.91
Service Factor
1
Warranty
12 Months
