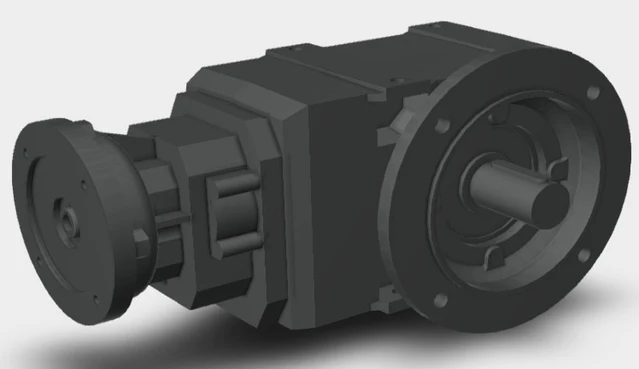

Bonfiglioli A 603 URF 1A 1858 P90 B6 - Right Angle Bevel Helical Gearboxes, 185.8 Ratio (60 Mm Shaft)

Bonfiglioli A 603 URF 1A 1858 P90 B6 - Right Angle Bevel Helical Gearboxes, 185.8 Ratio (60 Mm Shaft)

SKUA 603 URF 1A 1858 P90 B6BrandBonfiglioli
AED 7,559.00
AED 7,559.00
Sale Sold out
Shipping calculated at checkout.

The A 603 URF 1A 1858 P90 B6 is a high-performance Right Angle Bevel Helical Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 185.8 gear ratio and a maximum output torque of 2800 Nm, this Bevel Helical configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 60 Mm shaft diameter, supports a maximum speed of 7.53 RPM, and is optimized for a 2 Hp / 1.5 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Bonfiglioli
  • Gear Ratio: 185.8
  • Gearbox Type: Bevel Helical
  • Maximum Output Torque: 2800 Nm
  • Shaft Diameter: 60 Mm
  • Power Rating: 2 Hp / 1.5 Kw
  • Maximum Speed: 7.53 RPM
  • Input Speed: 1400
  • Housing Type: Cast Iron
  • Motor Frame Type: Iec Std. Frame 90 B5
  • Motor Coupling: Direct Coupled
  • Lubrication: Without Oil
  • Mounting Version: Universal Short Flange Mounted
  • Input Shaft Diameter: 24 Mm
  • Output Shaft Type: Single Solid Output With Keyway
  • Efficiency: 0.91
  • Service Factor: 1
  • Warranty: 12 Months
