• Bonfiglioli - A 502 UH 50 F1B 97 P132 VB
1 1

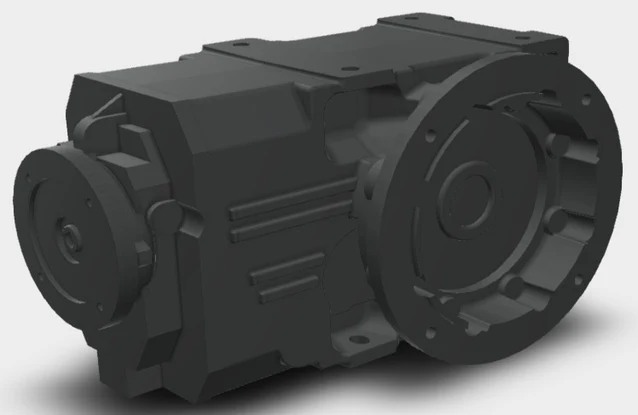

Bonfiglioli A 502 UH 50 F1B 97 P132 VB - Right Angle Bevel Helical Gearboxes, 9.7 Ratio (50 Mm Shaft)

Bonfiglioli A 502 UH 50 F1B 97 P132 VB - Right Angle Bevel Helical Gearboxes, 9.7 Ratio (50 Mm Shaft)

SKUA 502 UH 50 F1B 97 P132 VBBrandBonfiglioli
AED 5,666.00
AED 5,666.00
Sale Sold out
Shipping calculated at checkout.

The A 502 UH 50 F1B 97 P132 VB is a high-performance Right Angle Bevel Helical Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 9.7 gear ratio and a maximum output torque of 1500 Nm, this Bevel Helical configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 50 Mm shaft diameter, supports a maximum speed of 144.33 RPM, and is optimized for a 10 Hp / 7.5 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Bonfiglioli
  • Gear Ratio: 9.7
  • Gearbox Type: Bevel Helical
  • Maximum Output Torque: 1500 Nm
  • Shaft Diameter: 50 Mm
  • Power Rating: 10 Hp / 7.5 Kw
  • Maximum Speed: 144.33 RPM
  • Input Speed: 1400
  • Housing Type: Cast Iron
  • Motor Frame Type: Iec Std. Frame 132 B5
  • Motor Coupling: Direct Coupled
  • Lubrication: Without Oil
  • Mounting Version: Universal Medium Flange Mounted
  • Input Shaft Diameter: 38 Mm
  • Output Shaft Type: Hollow Output With Keyway
  • Efficiency: 0.94
  • Service Factor: 1
  • Warranty: 12 Months
