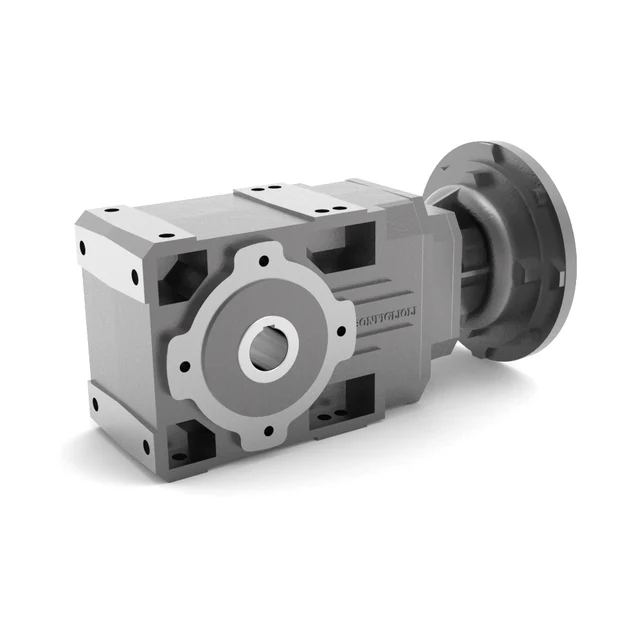

Bonfiglioli A 412 UH 40 792 P90 B3 - Right Angle Bevel Helical Gearboxes, 79.2 Ratio (40 Mm Shaft)

Bonfiglioli A 412 UH 40 792 P90 B3 - Right Angle Bevel Helical Gearboxes, 79.2 Ratio (40 Mm Shaft)

SKUA 412 UH 40 792 P90 B3BrandBonfiglioli
AED 4,060.00
AED 4,060.00
Sale Sold out
Shipping calculated at checkout.

The A 412 UH 40 792 P90 B3 is a high-performance Right Angle Bevel Helical Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 79.2 gear ratio and a maximum output torque of 850 Nm, this Bevel Helical configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 40 Mm shaft diameter, supports a maximum speed of 17.68 RPM, and is optimized for a 2 Hp / 1.5 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
79.2
Gearbox Type
Bevel Helical
Maximum Output Torque
850 Nm
Shaft Diameter
40 Mm
Power Rating
2 Hp / 1.5 Kw
Maximum Speed
17.68 RPM
Input Speed
1400
Housing Type
Cast Iron
ParameterValue
Motor Frame Type
Iec Std. Frame 90 B5
Motor Coupling
Direct Coupled
Lubrication
Oil Filled
Mounting Version
Universal Foot Mounting
Input Shaft Diameter
24 Mm
Output Shaft Type
Hollow Output With Keyway
Efficiency
0.94
Service Factor
1
Warranty
12 Months
