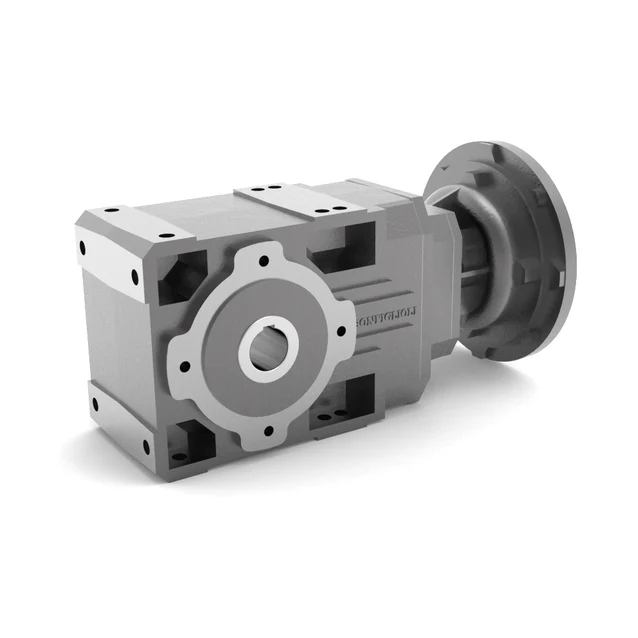

Bonfiglioli A 353 UH 40 3054 P71 B3 - Right Angle Bevel Helical Gearboxes, 305.4 Ratio (40 Mm Shaft)

Bonfiglioli A 353 UH 40 3054 P71 B3 - Right Angle Bevel Helical Gearboxes, 305.4 Ratio (40 Mm Shaft)

SKUA 353 UH 40 3054 P71 B3BrandBonfiglioli
AED 3,367.00
AED 3,367.00
Sale Sold out
Shipping calculated at checkout.

The A 353 UH 40 3054 P71 B3 is a high-performance Right Angle Bevel Helical Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 305.4 gear ratio and a maximum output torque of 600 Nm, this Bevel Helical configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 40 Mm shaft diameter, supports a maximum speed of 4.58 RPM, and is optimized for a 0.5 Hp / 0.37 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
305.4
Gearbox Type
Bevel Helical
Maximum Output Torque
600 Nm
Shaft Diameter
40 Mm
Power Rating
0.5 Hp / 0.37 Kw
Maximum Speed
4.58 RPM
Input Speed
1400
Housing Type
Cast Iron
ParameterValue
Motor Frame Type
Iec Std. Frame 71 B5
Motor Coupling
Direct Coupled
Lubrication
Oil Filled
Mounting Version
Universal Foot Mounting
Input Shaft Diameter
14 Mm
Output Shaft Type
Hollow Output With Keyway
Efficiency
0.91
Service Factor
1
Warranty
12 Months
