• Bonfiglioli - A 303 UH 40 4008 P80 VA
1 1

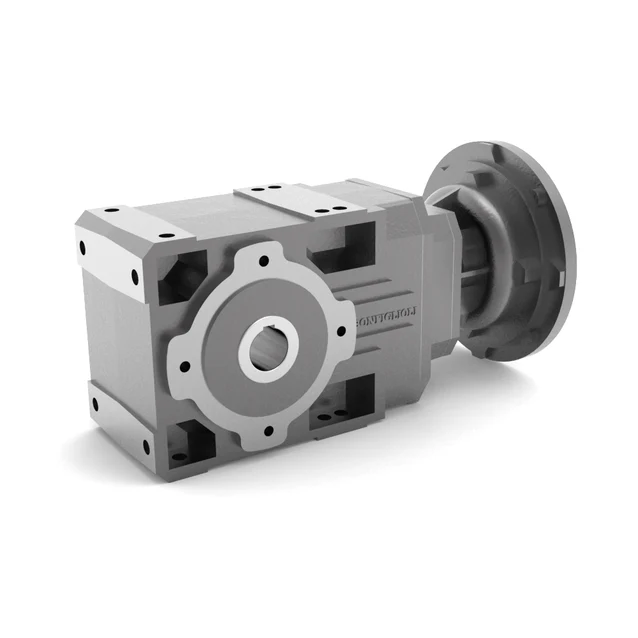

Bonfiglioli A 303 UH 40 4008 P80 VA - Right Angle Bevel Helical Gearboxes, 400.8 Ratio (40 Mm Shaft)

Bonfiglioli A 303 UH 40 4008 P80 VA - Right Angle Bevel Helical Gearboxes, 400.8 Ratio (40 Mm Shaft)

SKUA 303 UH 40 4008 P80 VABrandBonfiglioli
AED 3,065.00
AED 3,065.00
Sale Sold out
Shipping calculated at checkout.

The A 303 UH 40 4008 P80 VA is a high-performance Right Angle Bevel Helical Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 400.8 gear ratio and a maximum output torque of 410 Nm, this Bevel Helical configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 40 Mm shaft diameter, supports a maximum speed of 3.49 RPM, and is optimized for a 1 Hp / 0.75 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
400.8
Gearbox Type
Bevel Helical
Maximum Output Torque
410 Nm
Shaft Diameter
40 Mm
Power Rating
1 Hp / 0.75 Kw
Maximum Speed
3.49 RPM
Input Speed
1400
Housing Type
Aluminium
ParameterValue
Motor Frame Type
Iec Std. Frame 80 B5
Motor Coupling
Direct Coupled
Lubrication
Oil Filled
Mounting Version
Universal Foot Mounting
Input Shaft Diameter
19 Mm
Output Shaft Type
Hollow Output With Keyway
Efficiency
0.91
Service Factor
1
Warranty
12 Months
