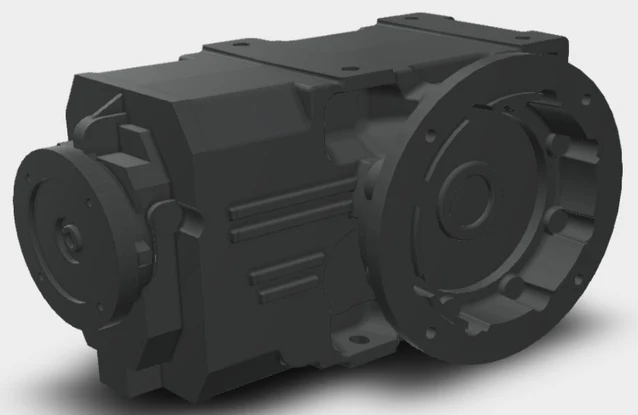

Bonfiglioli A 303 UH 35 F1B 1507 P71 B5 B3 - Right Angle Bevel Helical Gearboxes, 150.7 Ratio (35 Mm Shaft)

Bonfiglioli A 303 UH 35 F1B 1507 P71 B5 B3 - Right Angle Bevel Helical Gearboxes, 150.7 Ratio (35 Mm Shaft)

SKUA 303 UH 35 F1B 1507 P71 B5 B3BrandBonfiglioli
AED 3,229.00
AED 3,229.00
Sale Sold out
Shipping calculated at checkout.

The A 303 UH 35 F1B 1507 P71 B5 B3 is a high-performance Right Angle Bevel Helical Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 150.7 gear ratio and a maximum output torque of 410 Nm, this Bevel Helical configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 35 Mm shaft diameter, supports a maximum speed of 9.29 RPM, and is optimized for a 0.5 Hp / 0.37 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Bonfiglioli
  • Gear Ratio: 150.7
  • Gearbox Type: Bevel Helical
  • Maximum Output Torque: 410 Nm
  • Shaft Diameter: 35 Mm
  • Power Rating: 0.5 Hp / 0.37 Kw
  • Maximum Speed: 9.29 RPM
  • Input Speed: 1400
  • Housing Type: Aluminium
  • Motor Frame Type: Iec Std. Frame 71 B5
  • Motor Coupling: Direct Coupled
  • Lubrication: Oil Filled
  • Mounting Version: Universal Medium Flange Mounted
  • Input Shaft Diameter: 14 Mm
  • Output Shaft Type: Hollow Output With Keyway
  • Efficiency: 0.91
  • Service Factor: 1
  • Warranty: 12 Months
