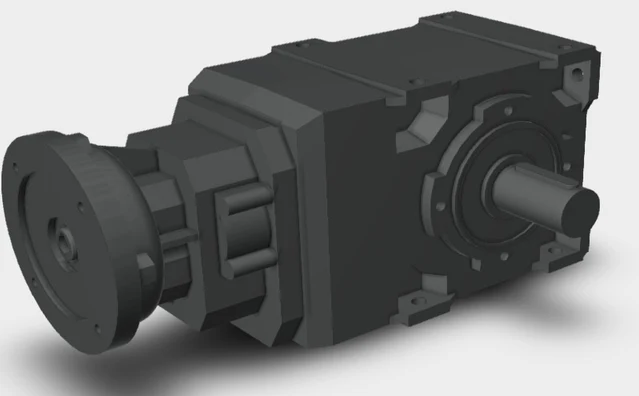

Bonfiglioli A 203 UR 1092 P63 B3 - Right Angle Bevel Helical Gearboxes, 109.2 Ratio (30 Mm Shaft)

Bonfiglioli A 203 UR 1092 P63 B3 - Right Angle Bevel Helical Gearboxes, 109.2 Ratio (30 Mm Shaft)

SKUA 203 UR 1092 P63 B3BrandBonfiglioli
AED 2,436.00
AED 2,436.00
Sale Sold out
Shipping calculated at checkout.

The A 203 UR 1092 P63 B3 is a high-performance Right Angle Bevel Helical Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 109.2 gear ratio and a maximum output torque of 250 Nm, this Bevel Helical configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 30 Mm shaft diameter, supports a maximum speed of 12.82 RPM, and is optimized for a 0.25 Hp / 0.18 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
109.2
Gearbox Type
Bevel Helical
Maximum Output Torque
250 Nm
Shaft Diameter
30 Mm
Power Rating
0.25 Hp / 0.18 Kw
Maximum Speed
12.82 RPM
Input Speed
1400
Housing Type
Aluminium
ParameterValue
Motor Frame Type
Iec Std. Frame 63 B5
Motor Coupling
Direct Coupled
Lubrication
Oil Filled
Mounting Version
Universal Foot Mounting
Input Shaft Diameter
11 Mm
Output Shaft Type
Single Solid Output With Keyway
Efficiency
0.91
Service Factor
1
Warranty
12 Months
