• Bonfiglioli - A 202 UH 30 313 SC80 AB3
1 1

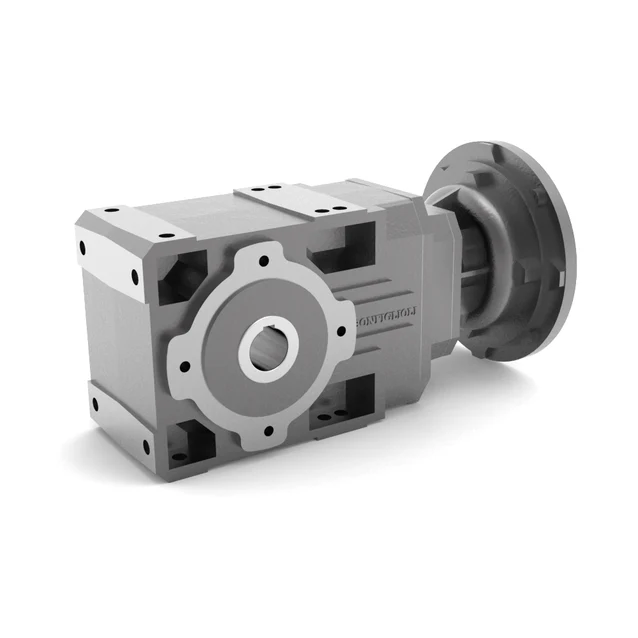

Bonfiglioli A 202 UH 30 313 SC80 AB3 - Right Angle Bevel Helical Gearboxes, 31.3 Ratio (30 Mm Shaft)

Bonfiglioli A 202 UH 30 313 SC80 AB3 - Right Angle Bevel Helical Gearboxes, 31.3 Ratio (30 Mm Shaft)

SKUA 202 UH 30 313 SC80 AB3BrandBonfiglioli
AED 3,200.00
AED 3,200.00
Sale Sold out
Shipping calculated at checkout.

The A 202 UH 30 313 SC80 AB3 is a high-performance Right Angle Bevel Helical Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 31.3 gear ratio and a maximum output torque of 250 Nm, this Bevel Helical configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 30 Mm shaft diameter, supports a maximum speed of 44.73 RPM, and is optimized for a 30 Mm power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
31.3
Gearbox Type
Bevel Helical
Maximum Output Torque
250 Nm
Shaft Diameter
30 Mm
Maximum Speed
44.73 RPM
Input Speed
1400
Housing Type
Aluminium
Motor Frame Type
Servo Adaptor
ParameterValue
Motor Coupling
Direct Coupled
Lubrication
Oil Filled
Mounting Version
Universal Foot Mounting
Input Shaft Diameter
14 Mm
Output Shaft Type
Hollow Output With Keyway
Efficiency
0.94
Service Factor
1
Warranty
12 Months
