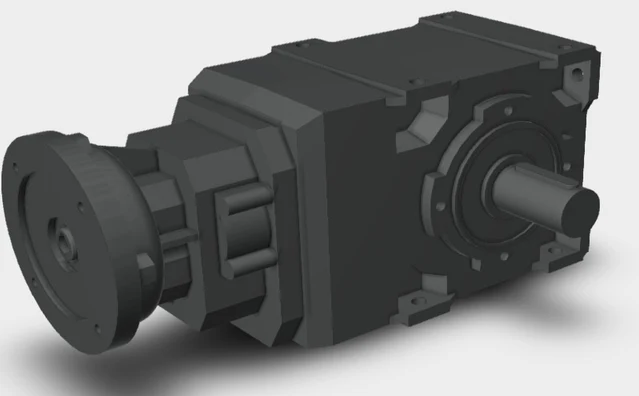

Bonfiglioli A 102 UR 55 P100 B3 - Right Angle Bevel Helical Gearboxes, 5.5 Ratio (25 Mm Shaft)

Bonfiglioli A 102 UR 55 P100 B3 - Right Angle Bevel Helical Gearboxes, 5.5 Ratio (25 Mm Shaft)

SKUA 102 UR 55 P100 B3BrandBonfiglioli
AED 1,821.00
AED 1,821.00
Sale Sold out
Shipping calculated at checkout.

The A 102 UR 55 P100 B3 is a high-performance Right Angle Bevel Helical Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 5.5 gear ratio and a maximum output torque of 150 Nm, this Bevel Helical configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 25 Mm shaft diameter, supports a maximum speed of 254.55 RPM, and is optimized for a 3 Hp / 2.2 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Bonfiglioli
  • Gear Ratio: 5.5
  • Gearbox Type: Bevel Helical
  • Maximum Output Torque: 150 Nm
  • Shaft Diameter: 25 Mm
  • Power Rating: 3 Hp / 2.2 Kw
  • Maximum Speed: 254.55 RPM
  • Input Speed: 1400
  • Housing Type: Aluminium
  • Motor Frame Type: Iec Std. Frame 100 B5
  • Motor Coupling: Direct Coupled
  • Lubrication: Oil Filled
  • Mounting Version: Universal Foot Mounting
  • Input Shaft Diameter: 28 Mm
  • Output Shaft Type: Single Solid Output With Keyway
  • Efficiency: 0.94
  • Service Factor: 1
  • Warranty: 12 Months
