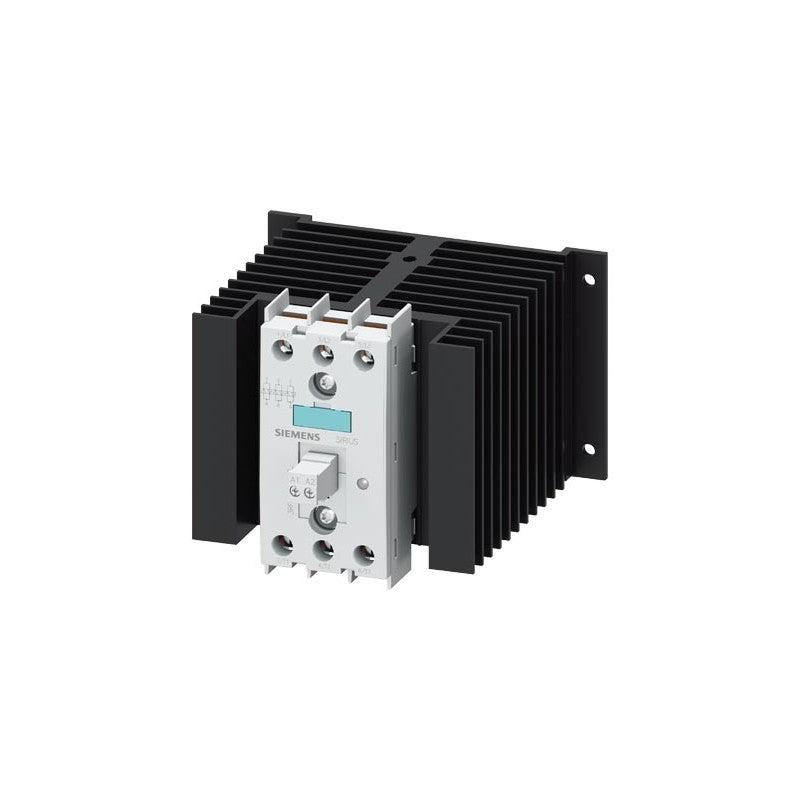

3RF2440-1AC45 - Siemens Solid-State Relay, 40000 mA 600 V (Panel-Mount)

3RF2440-1AC45 - Siemens Solid-State Relay, 40000 mA 600 V (Panel-Mount)

SKU3RF2440-1AC45BrandSiemens
AED 756.00
AED 756.00
Sale Sold out
Shipping calculated at checkout.

The 3RF2440-1AC45 is a dependable solid state relay from Siemens, part of the 3RF2 series. Rated for a maximum load of 40000 mA at 600 V with Zero-Cross switching, controlled by 4 VDC to 30 VDC input. This Panel-Mount relay uses Thyristor output, providing millions of silent, maintenance-free switching cycles for heaters, motors, and process control loads.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Siemens
  • Maximum Load Current: 40000 mA
  • Mounting Type: Panel-Mount
  • Maximum Load Voltage: 600 V
  • Minimum Load Voltage: 48 V
  • Maximum Control Voltage: 30 VDC
  • Minimum Control Voltage: 4 VDC
  • Switching Type: Zero-Cross
  • Control Voltage Range: 4–30 VDC
  • Minimum Load Current: 500 mA
  • Range: SIRIUS 3RF
  • Number of Poles: 3
  • Terminal Type: Screw
  • Contact Configuration: 3P-NO
  • Output Device: Thyristor
  • Load Voltage Range: 48–600 V
  • Series: 3RF2
  • Maximum Turn On Time: 1/2 cycle + 1 ms
  • Dimensions: 157.5 x 121 x 100 mm
  • Maximum Operating Temperature: 60 °C
  • Depth: 121 mm
  • Standards Met: CE, CSA, UL
  • Minimum Operating Temperature: -25 °C
  • Height: 100 mm
  • Off State Leakage Current: 10 mA
  • Length: 157.5 mm
  • Operating Temperature Range: -25–60 °C
