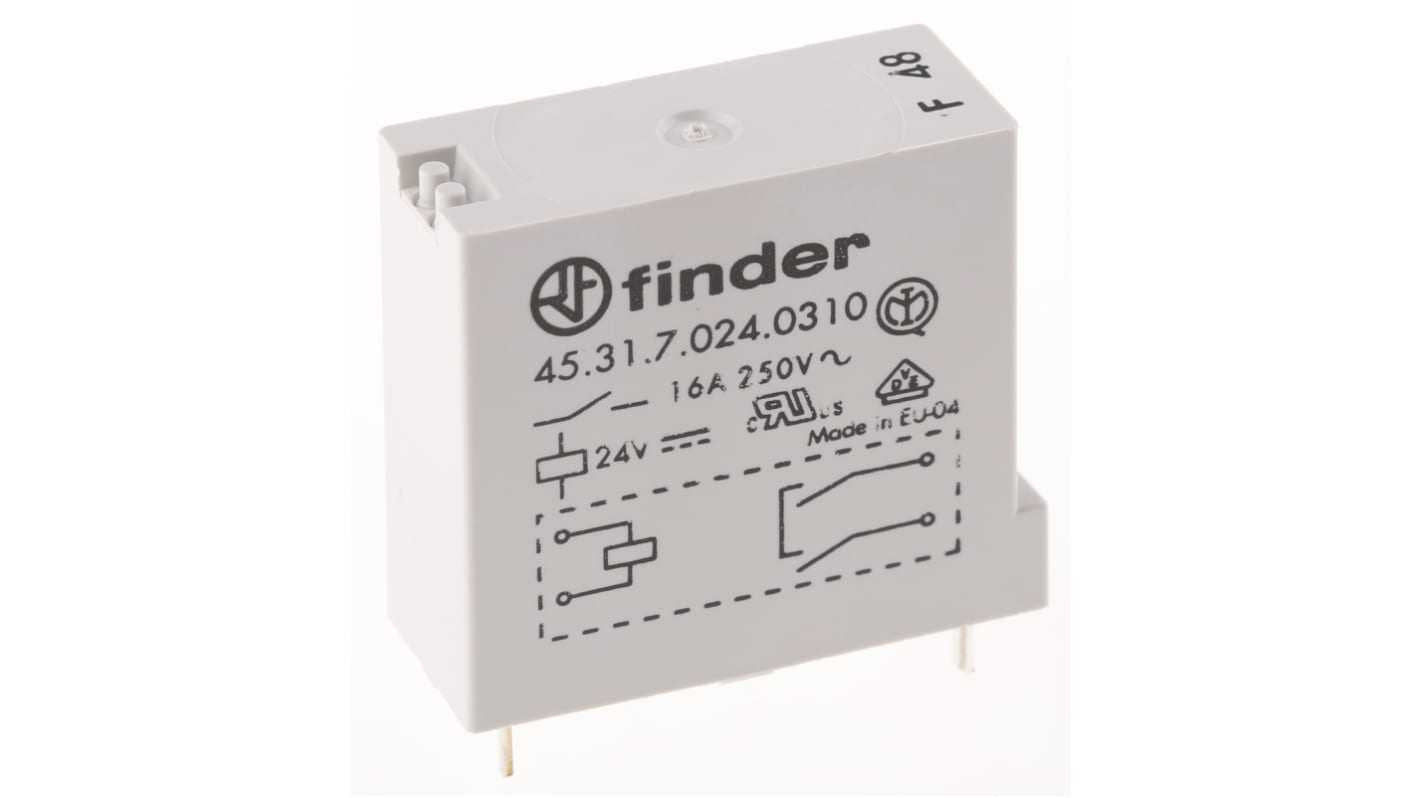

45.31.7.024.0310 - Finder SPST Power Relay, 30000 mA (24 VDC)

45.31.7.024.0310 - Finder SPST Power Relay, 30000 mA (24 VDC)

SKU45.31.7.024.0310BrandFinder
AED 20.00
AED 20.00
Sale Sold out
Shipping calculated at checkout.

The 45.31.7.024.0310 is a precision-engineered power relay from Finder, part of the 45 Series. Featuring a SPST contact configuration rated at 30000 mA switching current, operating on a 24 VDC coil. Its Silver Alloy contacts minimize resistance and arcing, with PCB-Mount installation and Quick-Connect terminals, designed for reliable load switching of motors, heaters, and lighting in industrial control panels.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Finder
  • Application: General Purpose
  • Coil Power: 360 mW
  • Coil Resistance: 1600 Ω
  • Coil Voltage: 24 VDC
  • Contact Configuration: SPST
  • Contact Material: Silver Alloy
  • Depth: 12.5 mm
  • Height: 28.5 mm
  • Isolation Coil To Contact: 2.5 kV AC
  • Latching: No
  • Length: 31.4 mm
  • Maximum Operating Temperature: 105 °C
  • Maximum Switching Voltage: 400 V
  • Maximum Switching Voltage AC: 400 V
  • Minimum Operating Temperature: -40 °C
  • Mounting Type: PCB-Mount
  • Number of Poles: 1
  • Series: 45 Series
  • Switching Current: 30000 mA
  • Terminal Type: Quick-Connect
