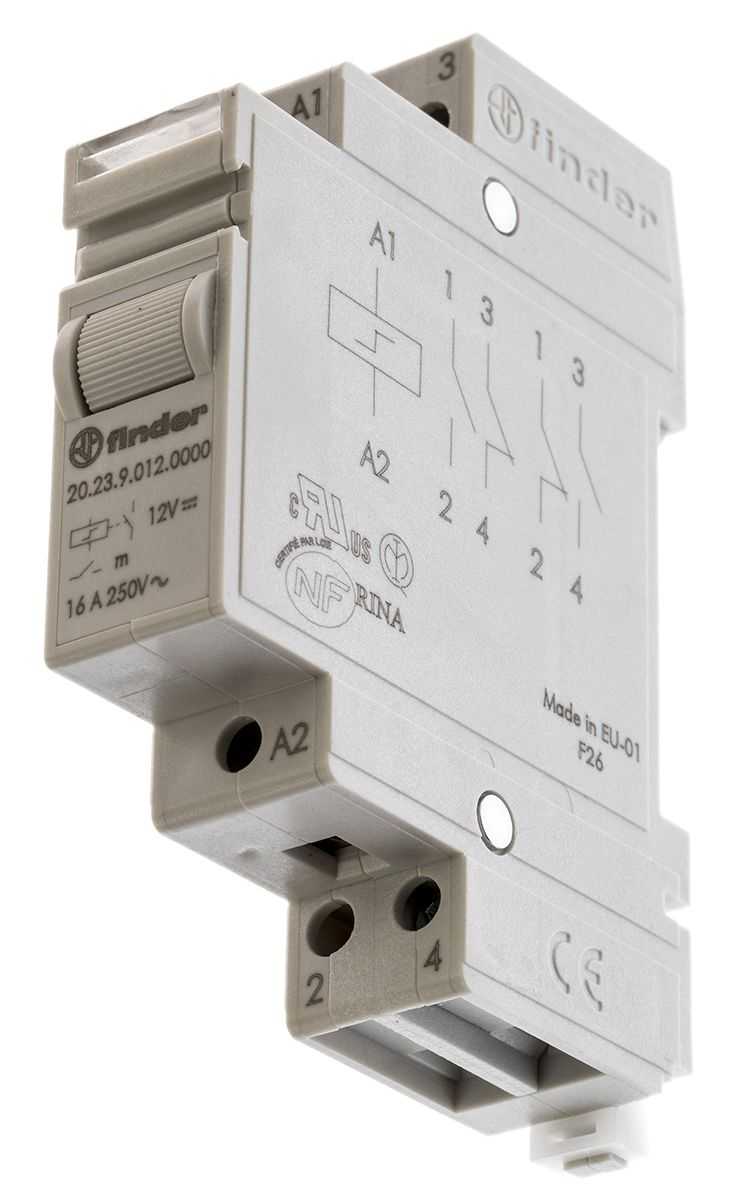

20.23.9.012.0000 - Finder SP-NC, SP-NO Power Relay, 16000 mA (12 VDC)

20.23.9.012.0000 - Finder SP-NC, SP-NO Power Relay, 16000 mA (12 VDC)

SKU20.23.9.012.0000BrandFinder
AED 112.00
AED 112.00
Sale Sold out
Shipping calculated at checkout.

The 20.23.9.012.0000 is a precision-engineered power relay from Finder, part of the 20 Series. Featuring a SP-NC, SP-NO contact configuration rated at 16000 mA switching current, operating on a 12 VDC coil. Its Silver Alloy contacts minimize resistance and arcing, with DIN-Rail installation and Screw terminals, designed for reliable load switching of motors, heaters, and lighting in industrial control panels.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Finder
  • Coil Power: 5 W
  • Coil Resistance: 27 Ω
  • Coil Voltage: 12 VDC
  • Contact Configuration: SP-NC, SP-NO
  • Contact Material: Silver Alloy
  • Depth: 58.4 mm
  • Height: 84 mm
  • Isolation Coil To Contact: 4 kV
  • Latching: Yes
  • Maximum Operating Temperature: 40 °C
  • Maximum Switching Power AC: 4 kVA
  • Maximum Switching Voltage: 250 VAC
  • Maximum Switching Voltage AC: 250 VAC
  • Minimum Operating Temperature: -40 °C
  • Mounting Type: DIN-Rail
  • Series: 20 Series
  • Switching Current: 16000 mA
  • Terminal Type: Screw
