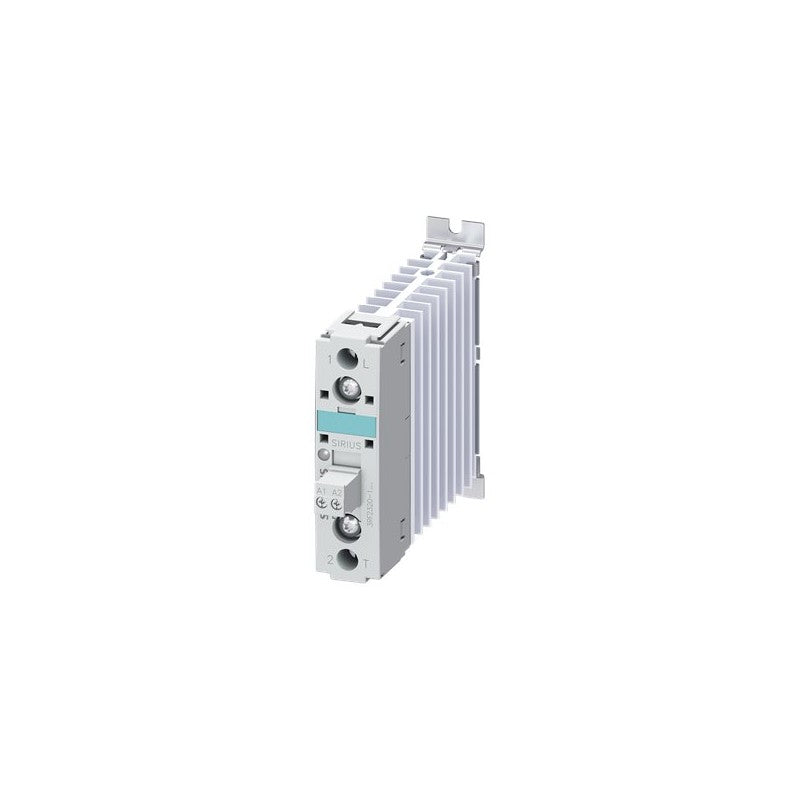

3RF2320-1BA06 - Siemens Solid-State Relay, 20000 mA 600 VAC (DIN-Rail)

3RF2320-1BA06 - Siemens Solid-State Relay, 20000 mA 600 VAC (DIN-Rail)

SKU3RF2320-1BA06BrandSiemens
AED 179.00
AED 179.00
Sale Sold out
Shipping calculated at checkout.

The 3RF2320-1BA06 is a dependable solid state relay from Siemens, part of the 3RF2 series. Rated for a maximum load of 20000 mA at 600 VAC with Instantaneous switching, controlled by 15 VDC to 24 VDC input. This DIN-Rail relay uses Thyristor output, providing millions of silent, maintenance-free switching cycles for heaters, motors, and process control loads.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Siemens
  • Maximum Load Current: 20000 mA
  • Mounting Type: DIN-Rail
  • Maximum Load Voltage: 600 VAC
  • Minimum Load Voltage: 48 VAC
  • Minimum Control Voltage: 15 VDC
  • Maximum Control Voltage: 24 VDC
  • Switching Type: Instantaneous
  • Control Voltage Range: 15–24 VDC
  • Range: SIRIUS 3RF
  • Minimum Load Current: 500 mA
  • Contact Configuration: SPST
  • Terminal Type: Screw
  • Output Device: Thyristor
  • Maximum Turn On Time: 1/2 cycle + 1 ms
  • Series: 3RF2
  • Load Voltage Range: 48–600 V
  • Dimensions: 22.5 x 140.5 x 100 mm
  • Depth: 140.5 mm
  • Height: 100 mm
  • Off State Leakage Current: 10 mA
  • Length: 22.5 mm
  • Operating Temperature Range: -25–60 °C
  • Minimum Operating Temperature: -25 °C
  • Maximum Operating Temperature: 60 °C
