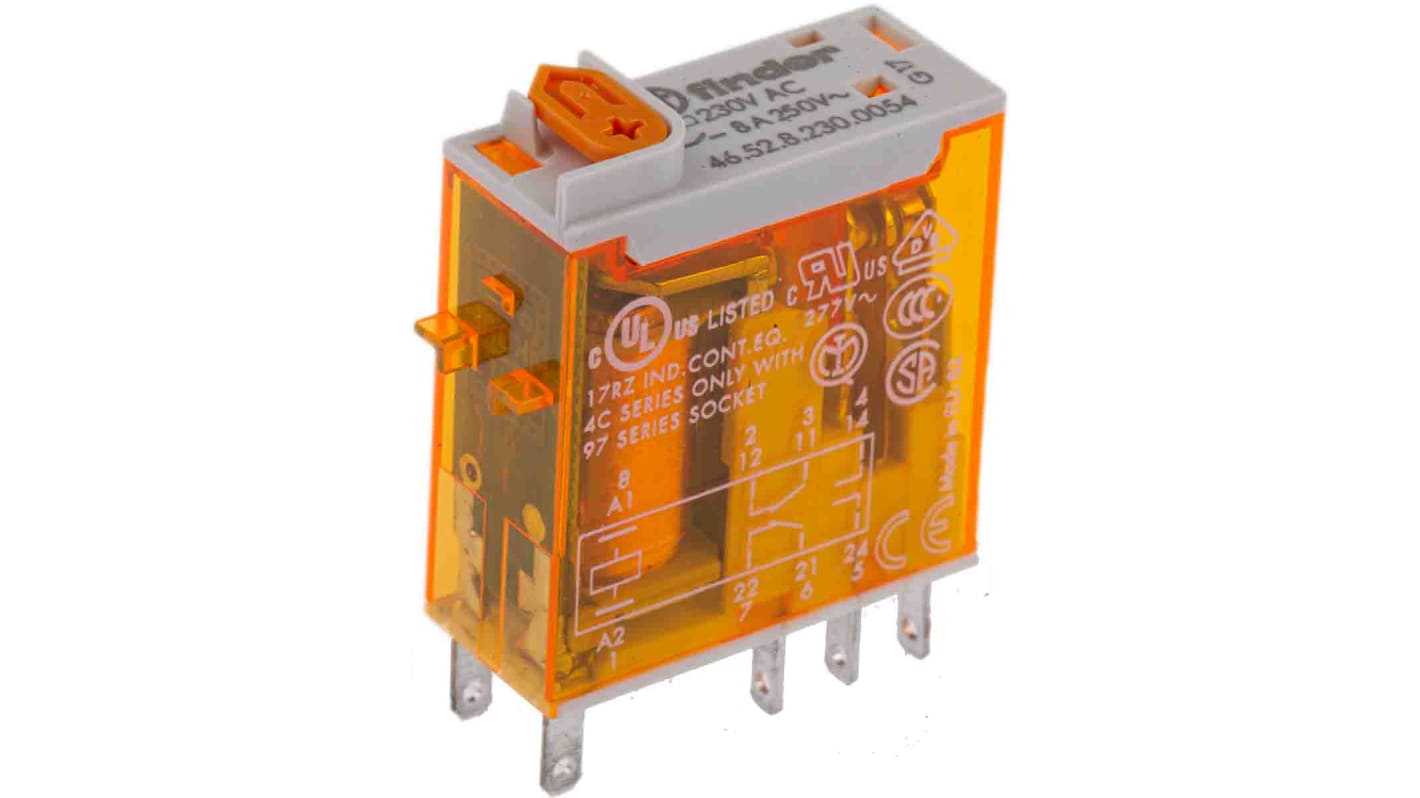

46.52.8.230.0054 - Finder DPDT Power Relay, 8000 mA (230 VAC)

46.52.8.230.0054 - Finder DPDT Power Relay, 8000 mA (230 VAC)

SKU46.52.8.230.0054BrandFinder
AED 37.00
AED 37.00
Sale Sold out
Shipping calculated at checkout.

The 46.52.8.230.0054 is a precision-engineered power relay from Finder, part of the 46 Series. Featuring a DPDT contact configuration rated at 8000 mA switching current, operating on a 230 VAC coil. Its Silver Alloy contacts minimize resistance and arcing, with Plug-In installation and PCB-Pin terminals, designed for reliable load switching of motors, heaters, and lighting in industrial control panels.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Finder
  • Application: General Purpose
  • Coil Power: 1.2 W
  • Coil Resistance: 28000 Ω
  • Coil Voltage: 230 VAC
  • Contact Configuration: DPDT
  • Contact Material: Silver Alloy
  • Depth: 12.4 mm
  • Dimensions: 12.4x32.8x29 mm
  • Height: 32.8 mm
  • Isolation Coil To Contact: 6 kV
  • Latching: No
  • Length: 29 mm
  • Life: 100000 cycles
  • Maximum Operating Temperature: 70 °C
  • Maximum Switching Power AC: 2 kVA
  • Maximum Switching Voltage: 250 VAC
  • Maximum Switching Voltage: 15 VDC
  • Maximum Switching Voltage AC: 250 VAC
  • Maximum Switching Voltage DC: 15 VDC
  • Minimum Operating Temperature: -40 °C
  • Mounting Type: Plug-In
  • Number of Poles: 2
  • Series: 46 Series
  • Switching Current: 8000 mA
  • Terminal Type: PCB-Pin
