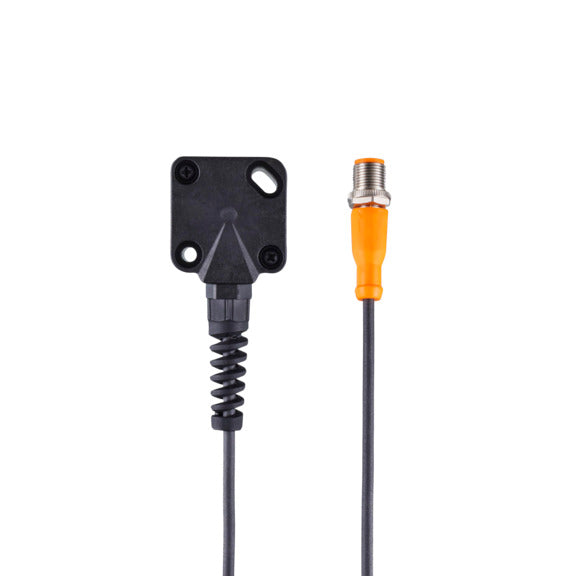

IFM EC2082 - Inclination Sensor, Single-Axis ±90°, 4-20 mA

IFM EC2082 - Inclination Sensor, Single-Axis ±90°, 4-20 mA

SKUEC2082BrandIFM
AED 928.59
AED 1,031.75 AED 928.59
Sale Sold out
Shipping calculated at checkout.

Only 10 left

IFM EC2082 Inclination Sensor — single-axis static inclinometer, ±90°, 4-20 mA, 0.1° repeatability, mobile-rated. Static inclination sensor, 1 axis, ±90° range, 4-20 mA analogue, repeatability 0.1°, 20...30 V DC, IP67, -30...85 °C.

MPN / SKU: EC2082

EC2082 Applications

The IFM EC2082 is a static inclination sensor (inclinometer) used for precise detection of angles of inclination. It is suited for platform levelling, boom and outrigger position, and tilt monitoring on mobile machines and industrial equipment. It measures a single axis over a ±90° range with 0.1° repeatability and provides a precise 4-20 mA analogue output. The rugged IP67 housing and wide -30...85 °C temperature range with high shock and vibration resistance make it well suited to demanding mobile and outdoor applications.

EC2082 Specifications

Brand IFM Product Type Inclination sensor (static inclinometer)
IFM Type Code R360/INCLINOMETER/4-20mA/II Measurement Axes 1
Angular Range ± 90° Function Principle Static
Output 4...20 mA analogue Repeatability 0.1°
Operating Voltage 20...30 V DC Current Consumption < 35 mA
Protection Rating IP 67 Ambient Temperature -30...85 °C
Housing Material PPO Installation Position Vertical
Electrical Connection 0.2 m cable + M12 connector, A-coded Weight 191.8 g

EC2082 Datasheet & Manual

Download Datasheet & ManualIFM EC2082 · PDF · Official IFM document

EC2082 -- Frequently Asked Questions (FAQ)

What is the IFM EC2082?

IFM EC2082 is a Inclination Sensor -- single-axis static inclinometer, ±90°, 4-20 mA, 0.1° repeatability, mobile-rated.

What is the IFM EC2082 used for?

The IFM EC2082 is a static inclination sensor (inclinometer) used for precise detection of angles of inclination.

What are the key specifications of the IFM EC2082?

IFM EC2082 -- Static inclination sensor, 1 axis, ±90° range, 4-20 mA analogue, repeatability 0.1°, 20...30 V DC, IP67, -30...85 °C.

What output or connection does the IFM EC2082 have?

The IFM EC2082 has -- Output: 4...20 mA analogue.

Where can I get the IFM EC2082 datasheet?

The official IFM EC2082 datasheet (PDF) is linked in the Datasheet & Manual section on this page.
