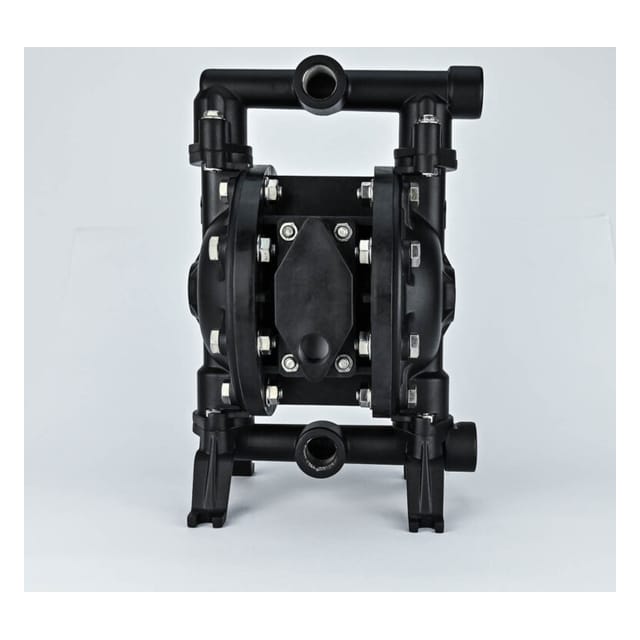

AODD-Pumps - BP15AL-PTT3-B - Aluminium Alloy Body 1/2 Inch

1/2 Inch AODD Pumps BP15AL-PTT3-B - Aluminium Alloy Body PTFE Diaphragm -BSK

SKU BP15AL-PTT3-BBrand BSK

AED 1,300.00 excl. VAT

Shipping calculated at checkout.

In stock

The BP15AL-PTT3-B is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable aluminum alloy body and a chemically resistant PTFE diaphragm. Designed for chemical sampling and pure applications, this pump is engineered to reliably transfer chemicals and pure fluids in demanding laboratory and... Read more

Pickup available
at Creative Ajman Showroom

Usually ready in 24 hours

View store
information

Specification

Parameter	Value
Wetted Material	Aluminium
Seat Material	PTFE
Ball Material	PTFE
Diaphragm Material	PTFE
O-ring Materials	NBR
Discharge Port	BSP
Fluid Outlet	0.5"
Fluid Inlet	0.5"
Max Flow	57 L/Min
Max Suction Lift-Dry	4.5 m
Max Air Pressure	8.3 bar
Weight	4.8kg
Noise	<72dB
Temperature Range	-40°C to 149°C
Dimensions/Size	178×285×195mm
Color/Finish	Anodized Aluminium
Applications/Industry	Chemical Processing
Compact Aluminum Body Material	Provides excellent resistance to corrosion and lightweight durability, ensuring longevity and reliability in precision aggressive chemical environments.
All-PTFE Wetted Parts Design	Provides maximum chemical compatibility and temperature resistance for the most demanding precision chemical applications.
PTFE Diaphragm Material	Offers superior chemical compatibility and temperature resistance for handling precision quantities of aggressive chemicals, acids, and high-temperature process fluids.
57 L/Min Max Flow	Enables precise and controlled aggressive chemical transfer, precision dosing of corrosive fluids, and small-scale aggressive chemical handling operations.

Parameter	Value
Self-Priming & Can Run Dry	Reduces downtime and prevents damage, critical for precision aggressive chemical processing systems and automated corrosive fluid dosing.
Seal-Less, Leak-Proof Design	Eliminates the risk of costly leaks and protects the environment from aggressive chemicals in precision applications.
Air-Operated (Intrinsically Safe)	Critical for precision hazardous chemical environments where electrical sparks could cause dangerous reactions in small-scale operations.
High Temperature Range (-40°C to 149°C)	Handles high-temperature chemical processes and extreme operating conditions in precision applications.
Maximum Chemical Resistance	PTFE construction provides unmatched compatibility with precision quantities of aggressive acids, solvents, and corrosive chemicals.
Compact 0.5" Port Design	Optimized for precision aggressive chemical flow control and space-limited installations requiring maximum chemical compatibility.
Precision Aggressive Chemical Processing	Controlled handling of strong acids, caustic solutions, and aggressive solvents requiring maximum chemical resistance in laboratory and pilot-scale operations.
High-Purity Laboratory Applications	Precision transfer of ultra-pure chemicals, aggressive reagents, and high-purity analytical solutions requiring zero contamination risk.
Pharmaceutical Research & Development	Precision handling of aggressive pharmaceutical intermediates, research chemicals, and corrosive process development fluids.
Semiconductor Research Applications	Controlled transfer of ultra-pure aggressive chemicals, precision etchants, and specialty cleaning solutions in R&D clean room environments.
Specialty Chemical R&D	Precision processing of aggressive intermediates, corrosive solvents, and high-value research chemicals requiring zero contamination tolerance.
Note	The BP15AL-PTT3-B's all-PTFE wetted parts construction in a compact 0.5" port design provides maximum chemical compatibility and temperature resistance for the most demanding precision applications. This model is specifically designed for laboratory and pilot-scale aggressive chemical processing where standard materials would fail, offering unmatched performance in corrosive environments while maintaining precision control and space efficiency.
Compact All-PTFE Construction	Maximum chemical compatibility with aggressive acids, caustic solutions, and corrosive chemicals in precision applications
Precision High-Temperature Performance	Operates reliably across -40°C to 149°C for high-temperature precision chemical processes
Maximum Chemical Resistance	Unmatched compatibility with aggressive chemicals where other materials fail in precision applications
Laboratory-Grade Performance	Suitable for high-purity precision applications requiring zero contamination risk
Proven Precision AODD Technology	Self-priming, seal-less operation ideal for precision aggressive chemical handling
Compact Precision Flow Capacity	Consistent 57 L/Min flow for demanding precision chemical processing operations
Extended Temperature Range	Superior performance in precision high-temperature applications up to 149°C
Intrinsically Safe Precision Design	Critical safety feature for precision aggressive chemical environments
