• Schmersal - Z4V10H 335-02Z-M20
1 1

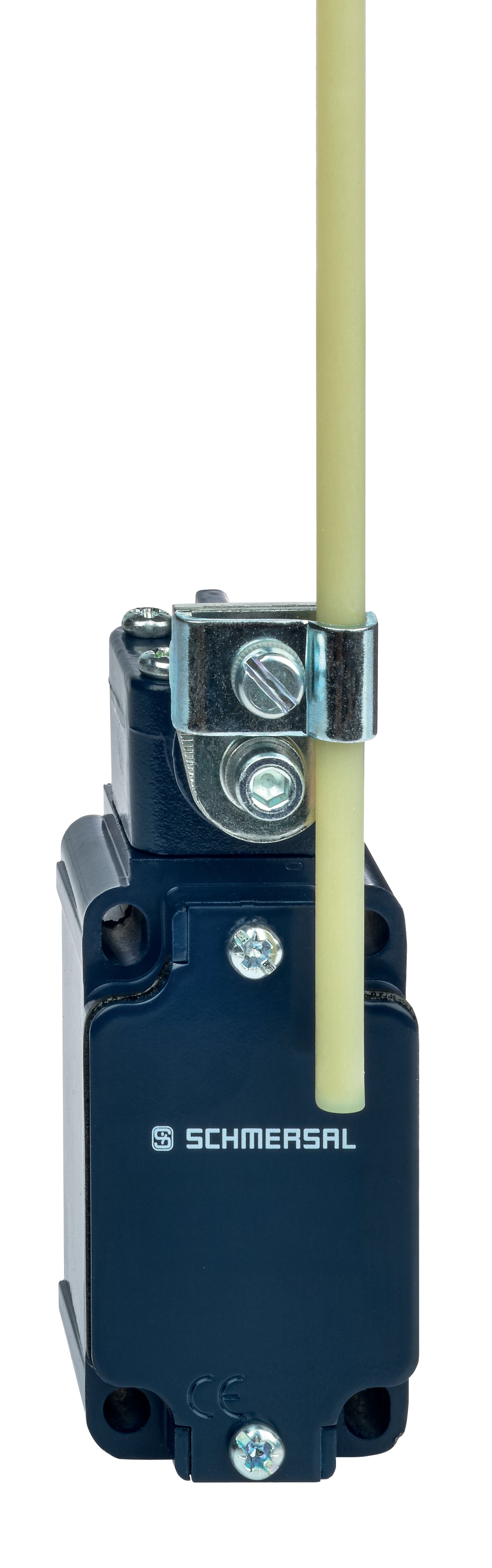

Z4V10H 335-02Z-M20 Schmersal Rod lever Metal M20 x 1.5 Limit Switch 76 mm*40.5 mm

Z4V10H 335-02Z-M20 Schmersal Rod lever Metal M20 x 1.5 Limit Switch 76 mm*40.5 mm

SKUZ4V10H 335-02Z-M20BrandSchmersal
AED 237.00
AED 237.00
Sale Sold out
Shipping calculated at checkout.

The Schmersal Z4V10H 335-02Z-M20 is a reliable industrial limit switch designed with a rod lever actuator. Engineered for durability, it features a metal housing to withstand demanding environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Schmersal
  • Actuator Type: Rod lever
  • IP Rating: IP65, IP67
  • Maximum Current: 10 A
  • Housing Material: Metal
  • Maximum AC Voltage: 500 V
  • Connection Type: M20x1.5
  • Series: Z4V10H 335-02Z-M20
  • Contact Type: 2 NC contact
  • Length: 76 mm
  • Maximum Operating Temperature: +80 °C
  • Width: 40.5 mm
  • Standards Met: EN 50041
  • Depth: 38 mm
  • Mechanical Life: 30,000,000 Operations
