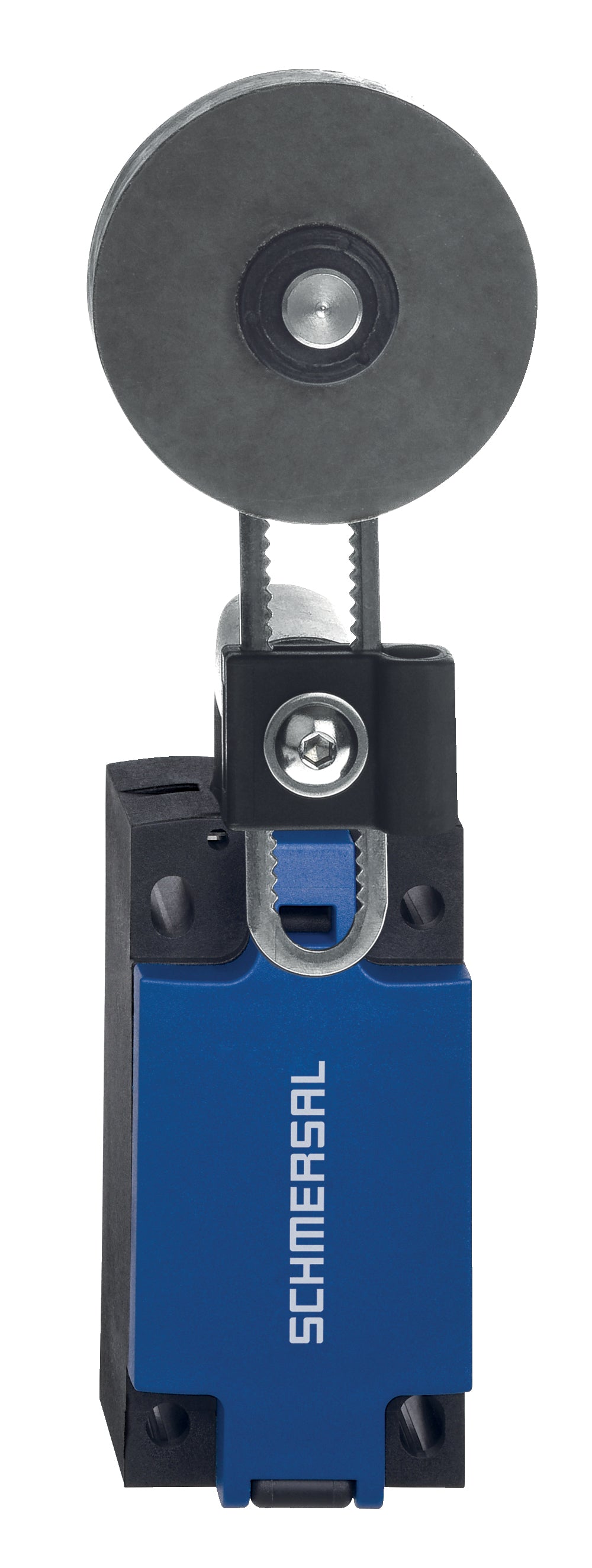

PS316-Z11-N306 Schmersal Adjustable Roller Lever Limit Switch, 1 NO + 1 NC, IP66/IP67

Name: PS316-Z11-N306 Schmersal Adjustable Roller Lever Limit Switch, 1 NO + 1 NC, IP66/IP67
Brand: Schmersal
SKU: PS316-Z11-N306
Price: 219.00 AED
Availability: InStock

AED 219.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The PS316-Z11-N306 is a Schmersal limit switch engineered for reliable position sensing in industrial automation. The adjustable rubber roller lever (50 mm diameter, adjustable in 15° angle and 2 mm length steps) provides flexible actuation, while the thermoplastic enclosure with foldable latching cover offers IP66/IP67 ingress protection. Quick-connect terminals rotated 45° simplify wiring. The unit carries 1 NO + 1 NC contacts rated 10 A at 300 V AC, with a maximum operating temperature of +80 °C and a mechanical life of 10,000,000 operations to EN 50041.

View full details

SKU PS316-Z11-N306 Brand Schmersal

Same-day dispatch

Order before 2 PM UAE
Authorised distributor

100% genuine parts
Volume pricing

Bulk quotes within 24h
7-day returns

Sealed, unused items

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist

Brand: Schmersal
Actuator Type: Rubber Roller Lever, Adjustable (50 mm diameter, 15° angle / 2 mm length steps)
IP Rating: IP66, IP67
Maximum Current: 10 A
Housing Material: Thermoplastic Enclosure with Foldable Latching Cover
Maximum AC Voltage: 300 V
Connection Type: Quick-Connect Terminals (Rotated 45°)
Series: PS316
