• Schmersal - Z1K-335-02Z-RMS
1 1

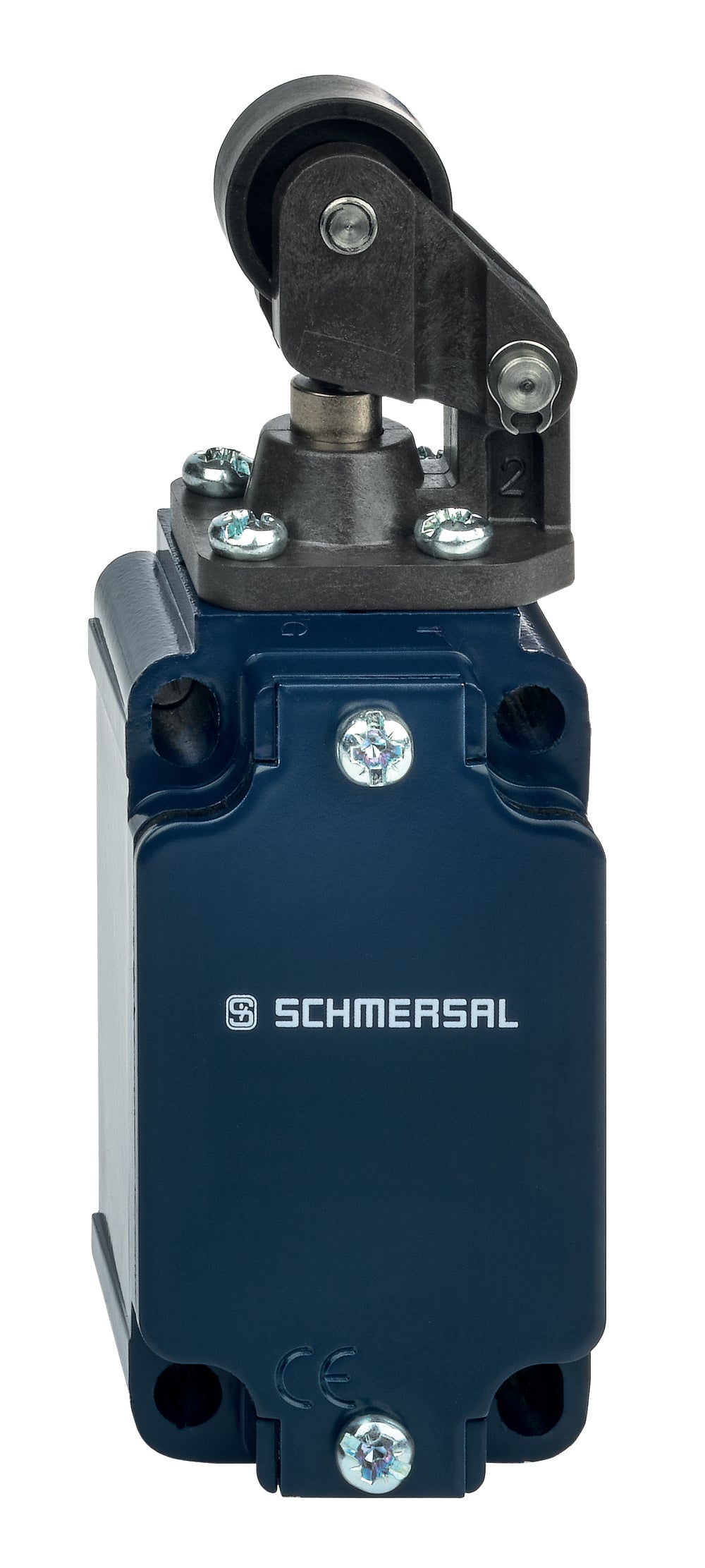

Z1K-335-02Z-RMS Schmersal Offset roller lever Metal enclosure 1 Cable entry M 20 x 1.5 Limit Switch 38 mm*40.5 mm

Z1K-335-02Z-RMS Schmersal Offset roller lever Metal enclosure 1 Cable entry M 20 x 1.5 Limit Switch 38 mm*40.5 mm

SKUZ1K-335-02Z-RMSBrandSchmersal
AED 217.00
AED 217.00
Sale Sold out
Shipping calculated at checkout.

The Schmersal Z1K-335-02Z-RMS is a reliable industrial limit switch designed with an offset roller lever actuator. Engineered for durability, it features a metal enclosure housing to withstand demanding environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Schmersal
  • Actuator Type: Offset roller lever
  • IP Rating: IP65, IP67
  • Maximum Current: 10 A
  • Housing Material: Metal enclosure
  • Maximum AC Voltage: 500 V
  • Connection Type: 1 Cable Entry M20x1.5
  • Series: Z1K
  • Contact Type: 2 NC contact
  • Length: 38 mm
  • Maximum Operating Temperature: +80 °C
  • Width: 40.5 mm
  • Standards Met: EN IEC 60947-5-1
  • Depth: 118.5 mm
  • Mechanical Life: 30,000,000 Operations
  • Operating Force: 12 N
