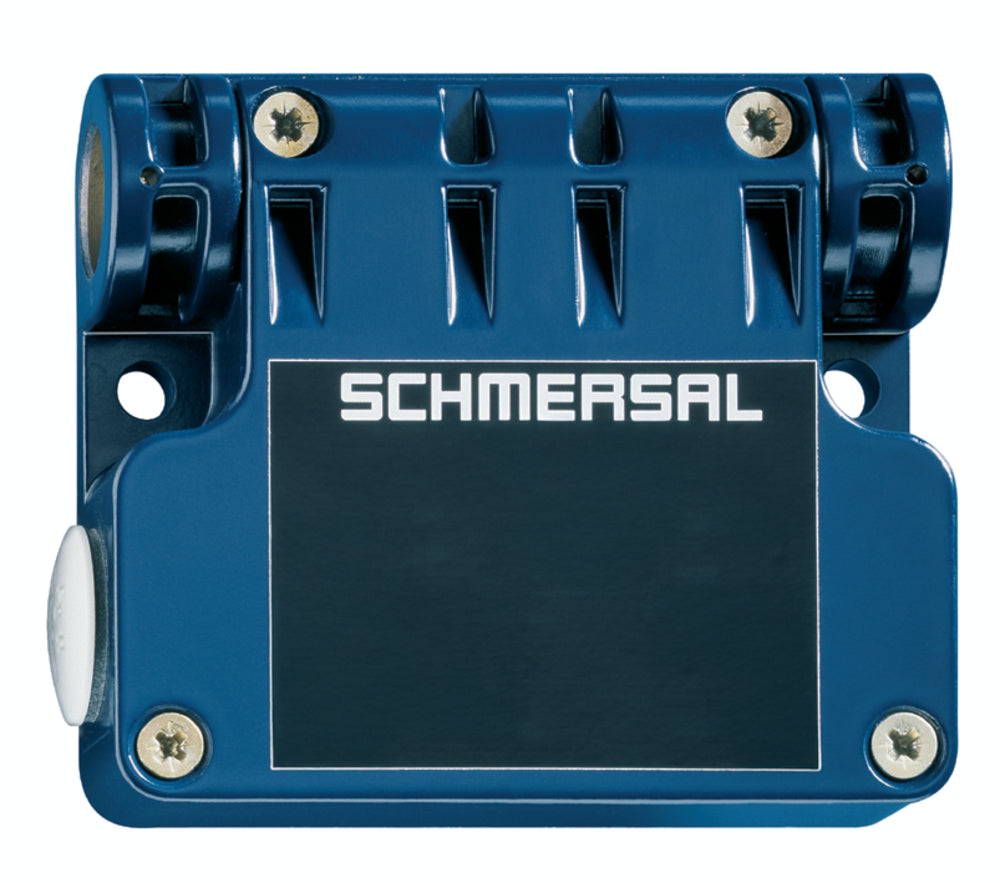

• Schmersal - TV8S 521-02/20Z
1 1

TV8S 521-02/20Z Schmersal NO contact, NC contact Metal 1 x 1.5 mm² Limit Switch 27 mm*92 mm

TV8S 521-02/20Z Schmersal NO contact, NC contact Metal 1 x 1.5 mm² Limit Switch 27 mm*92 mm

SKUTV8S 521-02/20ZBrandSchmersal
AED 361.00
AED 361.00
Sale Sold out
Shipping calculated at checkout.

The Schmersal TV8S 521-02/20Z is a reliable industrial limit switch designed with a no contact, nc contact. Engineered for durability, it features a metal housing to withstand demanding environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Schmersal
  • IP Rating: IP67
  • Maximum Current: 10 A
  • Housing Material: Metal
  • Maximum AC Voltage: 250 VAC
  • Connection Type: 1 x 1.5 mm²
  • Series: TV8S
  • Contact Type: NO contact, NC contact
  • Length: 27 mm
  • Maximum Operating Temperature: +70 °C
  • Width: 92 mm
  • Standards Met: BG-GS-ET-15, EN ISO 13849-1, EN IEC 60947-5-1
  • Depth: 81.5 mm
  • Mechanical Life: 1,000,000 Operations
