• Schmersal - T1R 236-02z-U90
1 1

T1R 236-02z-U90 Schmersal Offset roller lever Thermoplastic 1 Cable entry M 20 x 1.5 Limit Switch 58.5 mm*30 mm

T1R 236-02z-U90 Schmersal Offset roller lever Thermoplastic 1 Cable entry M 20 x 1.5 Limit Switch 58.5 mm*30 mm

SKUT1R 236-02z-U90BrandSchmersal
AED 72.00
AED 72.00
Sale Sold out
Shipping calculated at checkout.

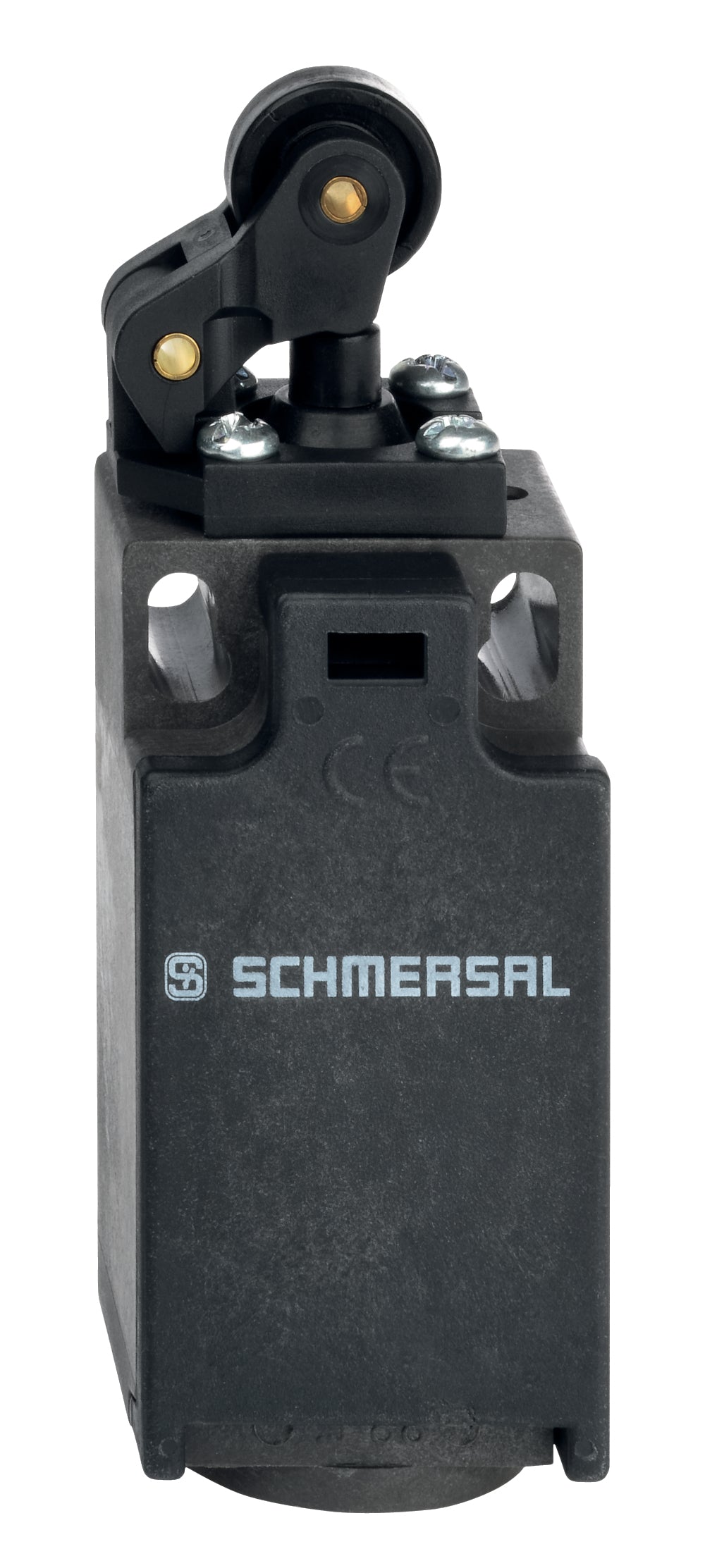

The Schmersal T1R 236-02z-U90 is a reliable industrial limit switch designed with an offset roller lever actuator. Engineered for durability, it features a thermoplastic housing to withstand demanding environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Schmersal
  • Actuator Type: Offset roller lever
  • IP Rating: IP65, IP67
  • Maximum Current: 10 A
  • Housing Material: Thermoplastic
  • Maximum AC Voltage: 500 V
  • Connection Type: 1 Cable Entry M20x1.5
  • Series: T1R 236
  • Contact Type: 2 NC contact
  • Length: 58.5 mm
  • Maximum Operating Temperature: +80 °C
  • Width: 30 mm
  • Standards Met: EN IEC 60947-5-1
  • Depth: 30 mm
  • Mechanical Life: 20,000,000 Operations
  • Operating Force: 9 N
