• Schmersal - PS216-Z11-H230
1 1

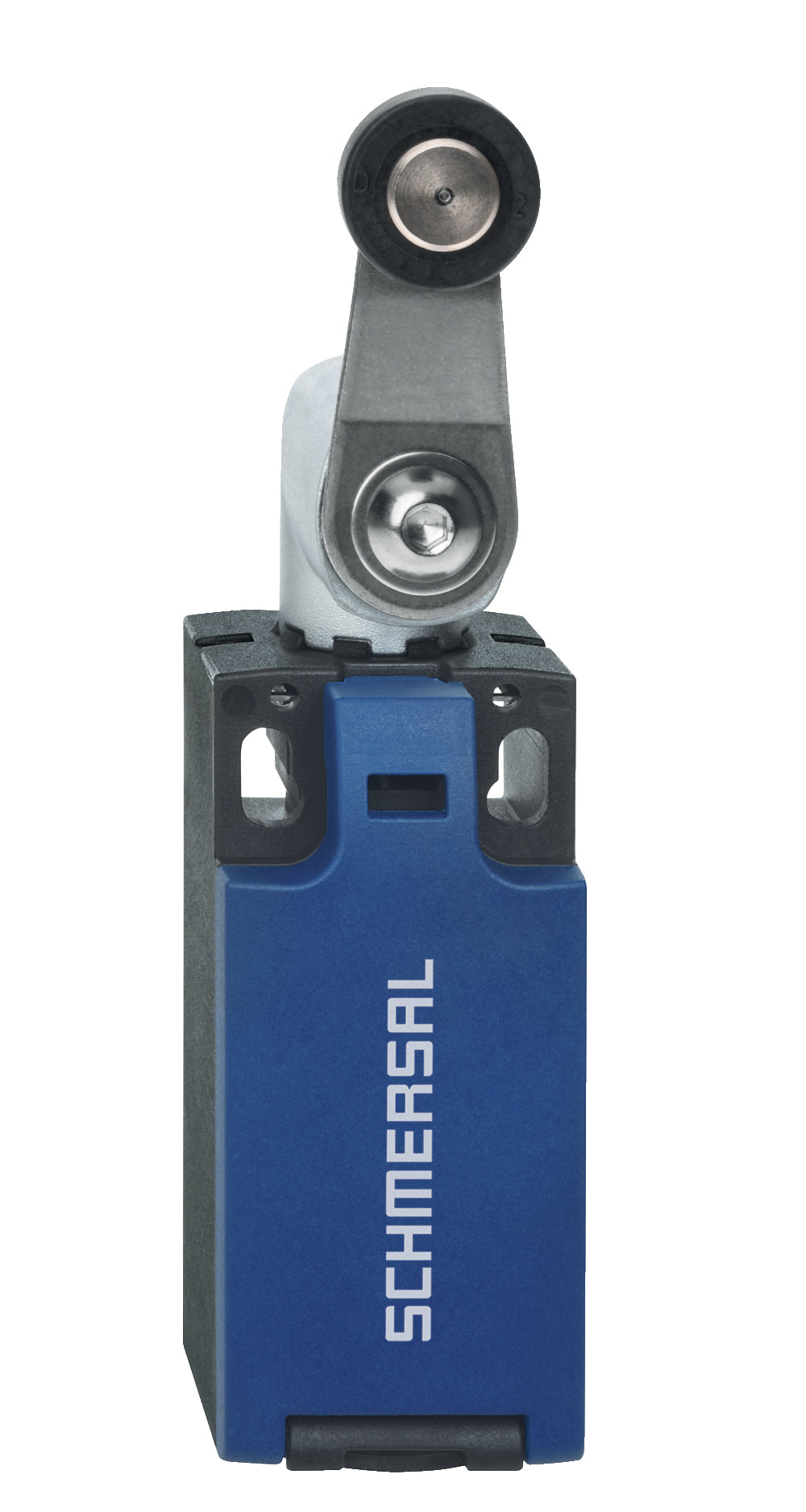

PS216-Z11-H230 Schmersal Lever length 28 mm Thermoplastic with foldable latching cover Screw terminals M20 x 1.5 Limit Switch 32.5 mm*31 mm

PS216-Z11-H230 Schmersal Lever length 28 mm Thermoplastic with foldable latching cover Screw terminals M20 x 1.5 Limit Switch 32.5 mm*31 mm

SKUPS216-Z11-H230BrandSchmersal
AED 230.00
AED 230.00
Sale Sold out
Shipping calculated at checkout.

The Schmersal PS216-Z11-H230 is a reliable industrial limit switch designed with a lever length 28 mm actuator. Engineered for durability, it features a thermoplastic with foldable latching cover housing to withstand demanding environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Schmersal
  • Actuator Type: Lever length 28 mm
  • IP Rating: IP66, IP67
  • Maximum Current: 10 A
  • Housing Material: Thermoplastic with foldable latching cover
  • Maximum AC Voltage: 250 VAC
  • Connection Type: Screw Terminals M20x1.5
  • Series: PS216-Z11-H230
  • Contact Type: 1 NO contact, 1 NC contacts
  • Length: 32.5 mm
  • Maximum Operating Temperature: +80 °C
  • Width: 31 mm
  • Standards Met: EN 50047
  • Mechanical Life: 10,000,000 Operations
