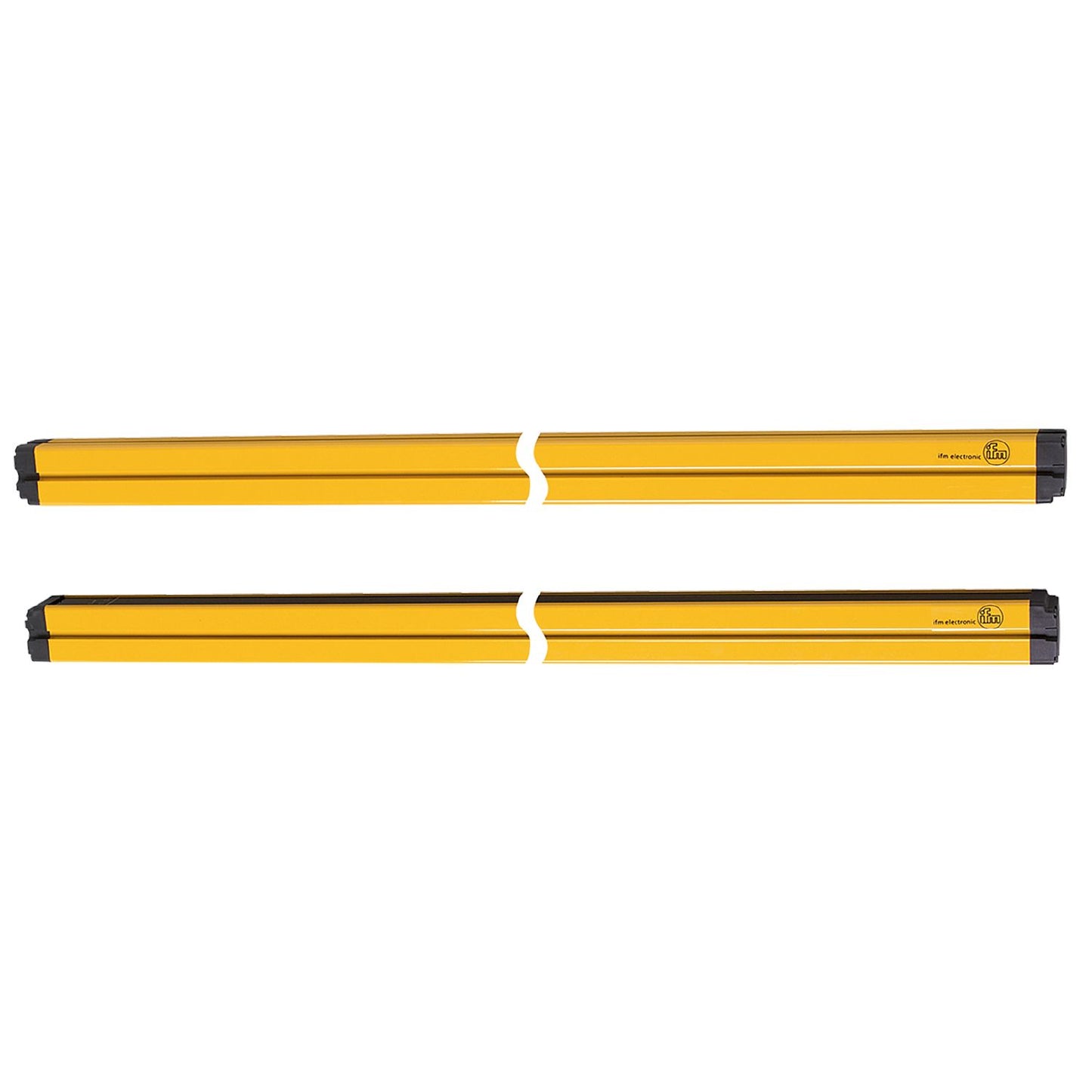

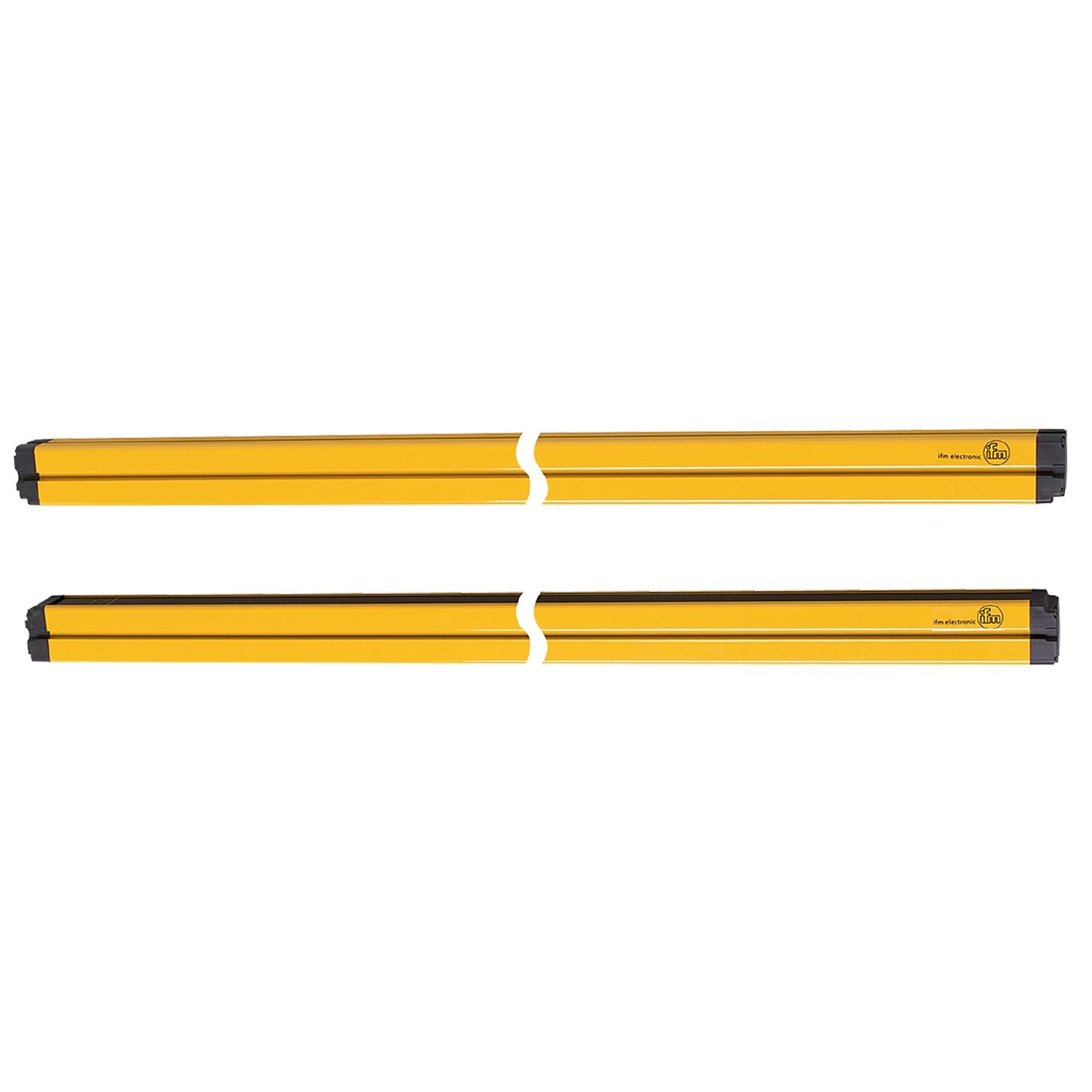

OY953S - Safety Light Curtain, 910 mm Protective Height (4 Beams)

Name: OY953S - Safety Light Curtain, 910 mm Protective Height (4 Beams)
Brand: ifm
SKU: OY953S
Price: 9686.00 AED
Availability: InStock

SKUOY953SBrandifm

AED 9,686.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The OY953S is a highly reliable light curtain engineered to safeguard personnel and machinery in automated industrial environments. Delivering a generous 910 mm protective height paired with 4 beams, this sensor is specifically designed for high-accuracy protection. Featuring a 18...60 maximum scanning distance and a standard 1 x M12; coding: A; Maximum cable length: 100 m; for wire cross-section 1 mm¬≤ terminal, it ensures critical safety compliance.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Accessory Type: mounting bracket: 6; slot nuts: 6
Brand: ifm
Dimensions: 1136 x 50 x 60
Length: 1136 mm
Material: housing: aluminium; front pane: PC
Series: OY953S
Supply Voltage: 24 DC
Maximum Response Time: 7.0 ms

Number of Beams: 4
Safety Type: Type 4
SIL IEC 61508: SIL 3
PL EN ISO 13849-1: PL e
Protective Height: 910 mm
Maximum Scanning Distance: 18...60
Terminal Type: 1 x M12; Coding: A; Maximum Cable Length: 100 m; For Wire Cross-Section 1 mm²
