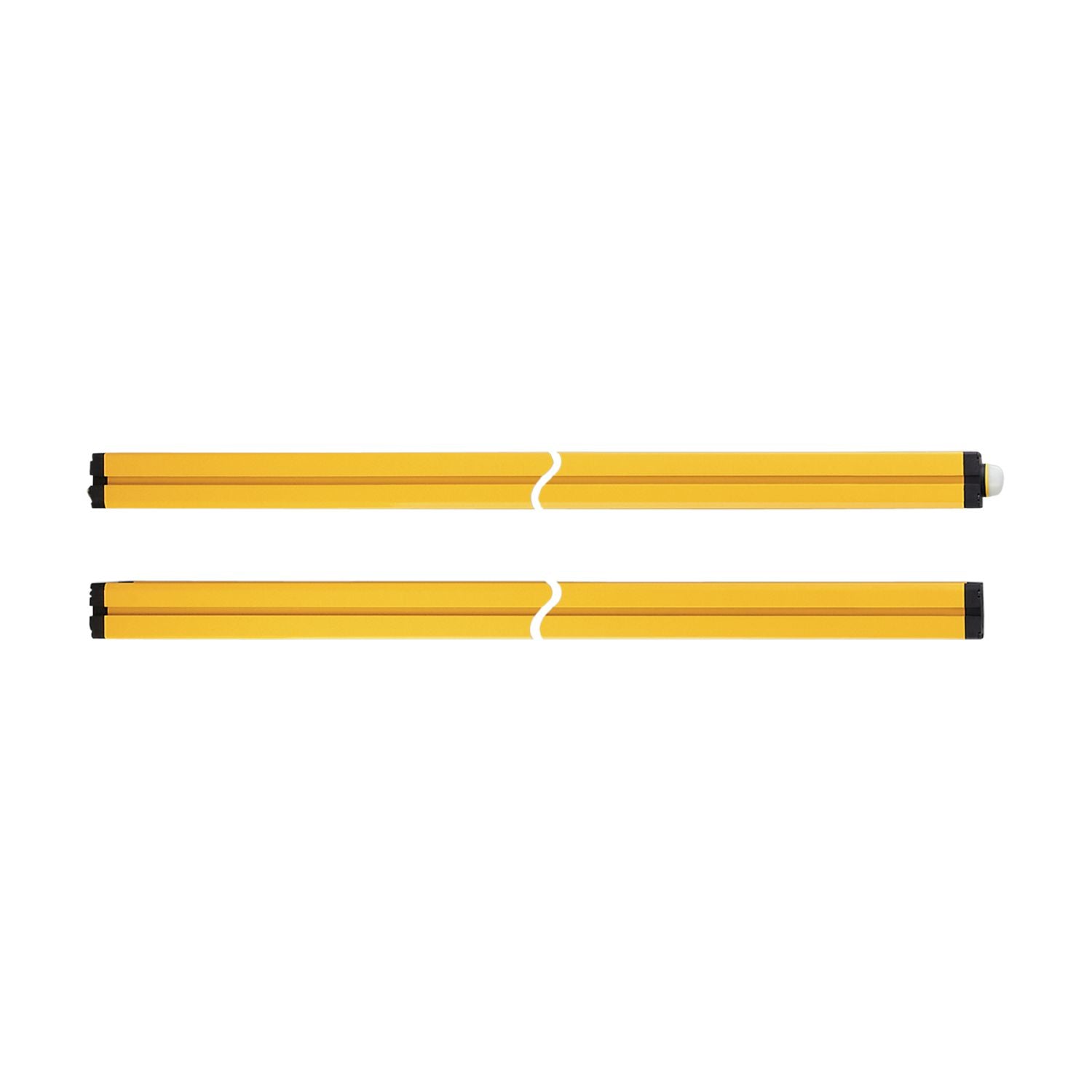

OY512S - Safety Light Curtain, 810 mm Protective Height (3 Beams)

Name: OY512S - Safety Light Curtain, 810 mm Protective Height (3 Beams)
Brand: ifm
SKU: OY512S
Price: 9920.00 AED
Availability: InStock

SKUOY512SBrandifm

AED 9,920.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The OY512S is a highly reliable light curtain engineered to safeguard personnel and machinery in automated industrial environments. Delivering a generous 810 mm protective height paired with 3 beams, this sensor is specifically designed for high-accuracy protection. Featuring a 3...12 maximum scanning distance and a standard 1 x M12; Maximum cable length: 100 m; for wire cross-section 1 mm¬≤ terminal, it ensures critical safety compliance.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Accessory Type: mounting bracket: 4; slot nuts: 4
Brand: ifm
Dimensions: 985 x 50 x 55
Length: 985 mm
Material: housing: aluminium; front pane: PC
Series: OY512S
Supply Voltage: 24 DC
Maximum Response Time: 5.5 ms

Number of Beams: 3
Safety Type: Type 4
SIL IEC 61508: SIL 3
PL EN ISO 13849-1: PL e
Protective Height: 810 mm
Maximum Scanning Distance: 3...12
Terminal Type: 1 x M12; Maximum Cable Length: 100 m; For Wire Cross-Section 1 mm²
