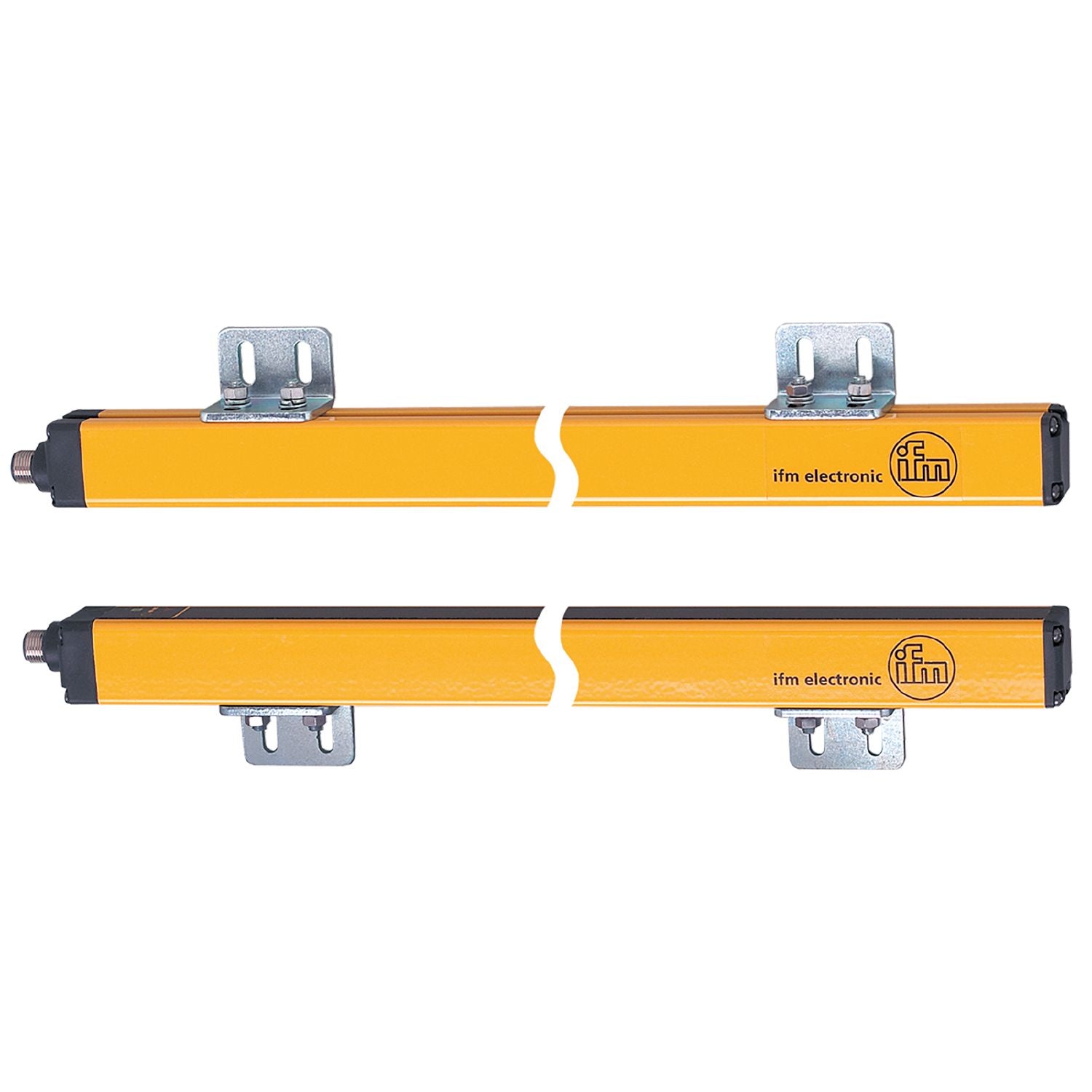

OY266S - Safety Light Curtain, 910 mm Protective Height (40 mm Resolution)

Name: OY266S - Safety Light Curtain, 910 mm Protective Height (40 mm Resolution)
Brand: ifm
SKU: OY266S
Price: 11500.00 AED
Availability: InStock

SKUOY266SBrandifm

AED 11,500.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The OY266S is a highly reliable light curtain engineered to safeguard personnel and machinery in automated industrial environments. Delivering a generous 910 mm protective height paired with 40 mm resolution, this sensor is specifically designed for high-accuracy protection. Featuring a 3...20 maximum scanning distance and a standard 1 x M12; coding: A; Maximum cable length: 100 m; for wire cross-section 0.34 mm¬≤ terminal, it ensures critical safety compliance.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Accessory Type: mounting bracket: 4; slot nuts: 4; Nuts
Brand: ifm
Dimensions: 963 x 28 x 30
Length: 963 mm
Material: housing: aluminium; front pane: PC
Series: OY266S
Supply Voltage: 24 DC
Maximum Response Time: 6.0 ms

Beam Resolution: 40 mm
Safety Type: Type 4
SIL IEC 61508: SIL 3
PL EN ISO 13849-1: PL e
Protective Height: 910 mm
Maximum Scanning Distance: 3...20
Terminal Type: 1 x M12; Coding: A; Maximum Cable Length: 100 m; For Wire Cross-Section 0.34 mm²
