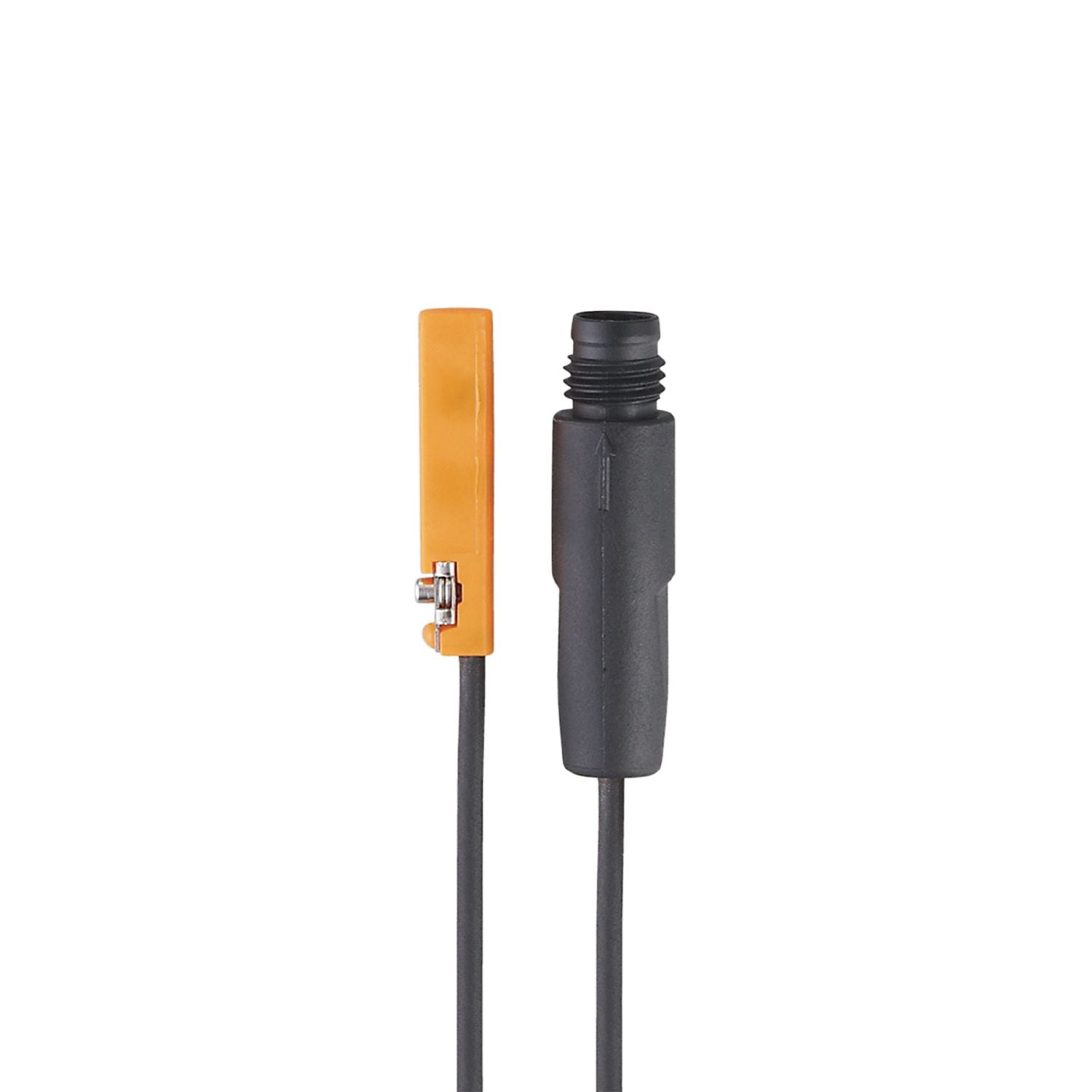

MK5310 - ifm threaded type Proximity Sensor

Name: MK5310 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: MK5310
Price: 261.00 AED
Availability: InStock

SKUMK5310Brandifm

AED 261.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The MK5310 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a rugged PA housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...30 DC; ("supply class 2" to cULus) supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M8 x 1
Body Style: threaded type
Output Type: PNP
Output Function: normally open
Connection Type: 1 x M8; coding: A; Locking: snap-fit
Cable Length: 0.3 m
Supply Voltage: 10...30 DC; ("supply class 2" to cULus)
IP Rating: IP65; IP67
Mounting Type: Flush

Housing Material: housing: PA; fastening clamp: stainless steel
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 10000 Hz
Maximum Operating Temperature: 85°C
Standards Met: EN 61000-4-2 ESD | - CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: MK5310
Short Circuit Overload Protection: yes
