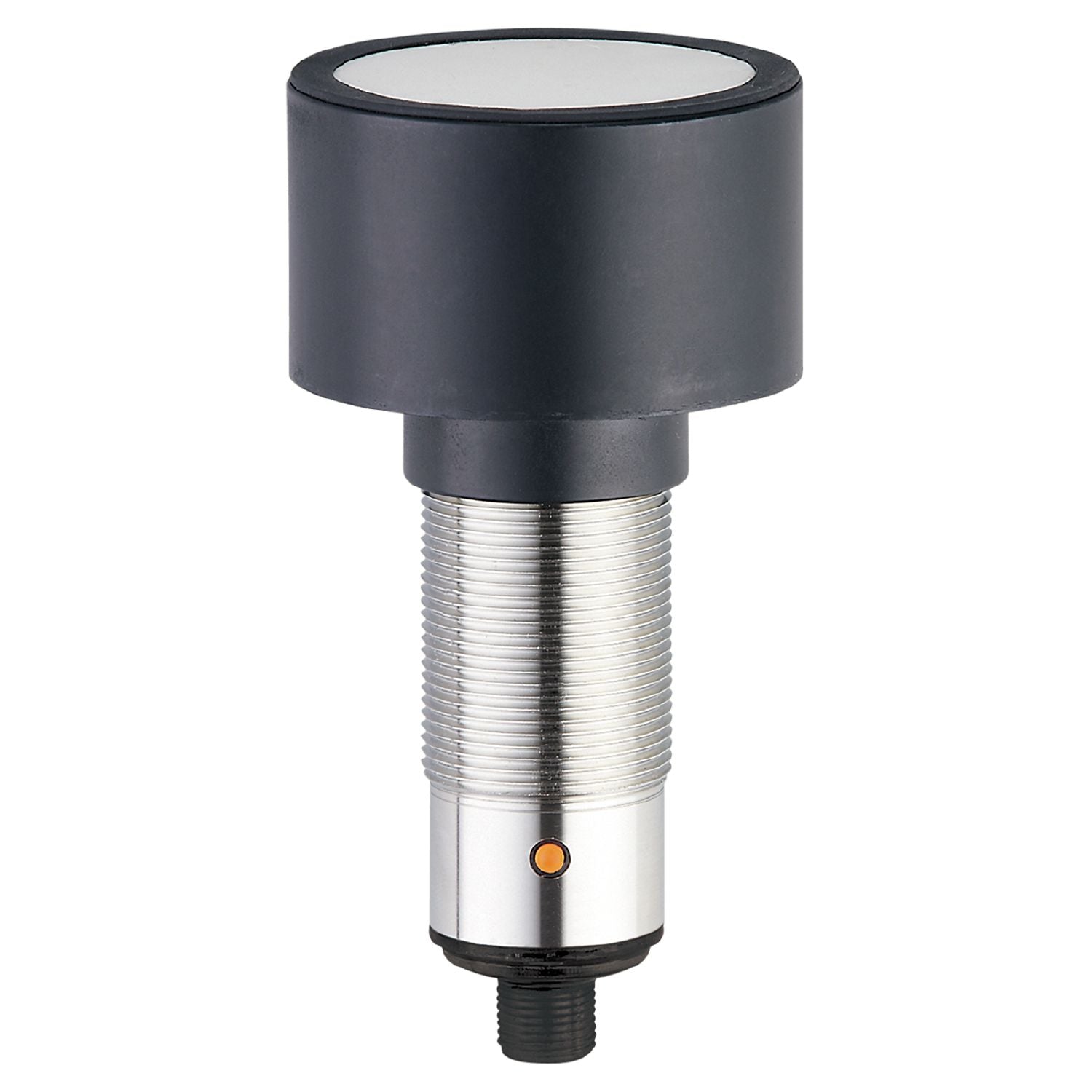

UIT508 - ifm threaded type Proximity Sensor

Name: UIT508 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: UIT508
Price: 2607.00 AED
Availability: InStock

SKUUIT508Brandifm

AED 2,607.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The UIT508 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 600...8000; (Target: 1000 x 1000 mm)mm sensing range and a rugged stainless steel (316L/1.4404) housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output with normally open / normally closed; (parameterisable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Brand: ifm
Thread Size: M30 x 1.5
Body Style: threaded type
Output Type: PNP
Detection Range: 600...8000 (Target: 1000 x 1000 mm)
Output Function: normally open / normally closed; (parameterisable)
Connection Type: 1 x M12; coding: A
Supply Voltage: 10...30 DC
IP Rating: IP67

Housing Material: stainless steel (316L/1.4404); PA; epoxy glass ceramics
Maximum DC Voltage: 2.2
Minimum Operating Temperature: -20°C
Switching Current: 100
Switching Frequency: 1 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 | Class A
Series: UIT508
Short Circuit Overload Protection: yes
