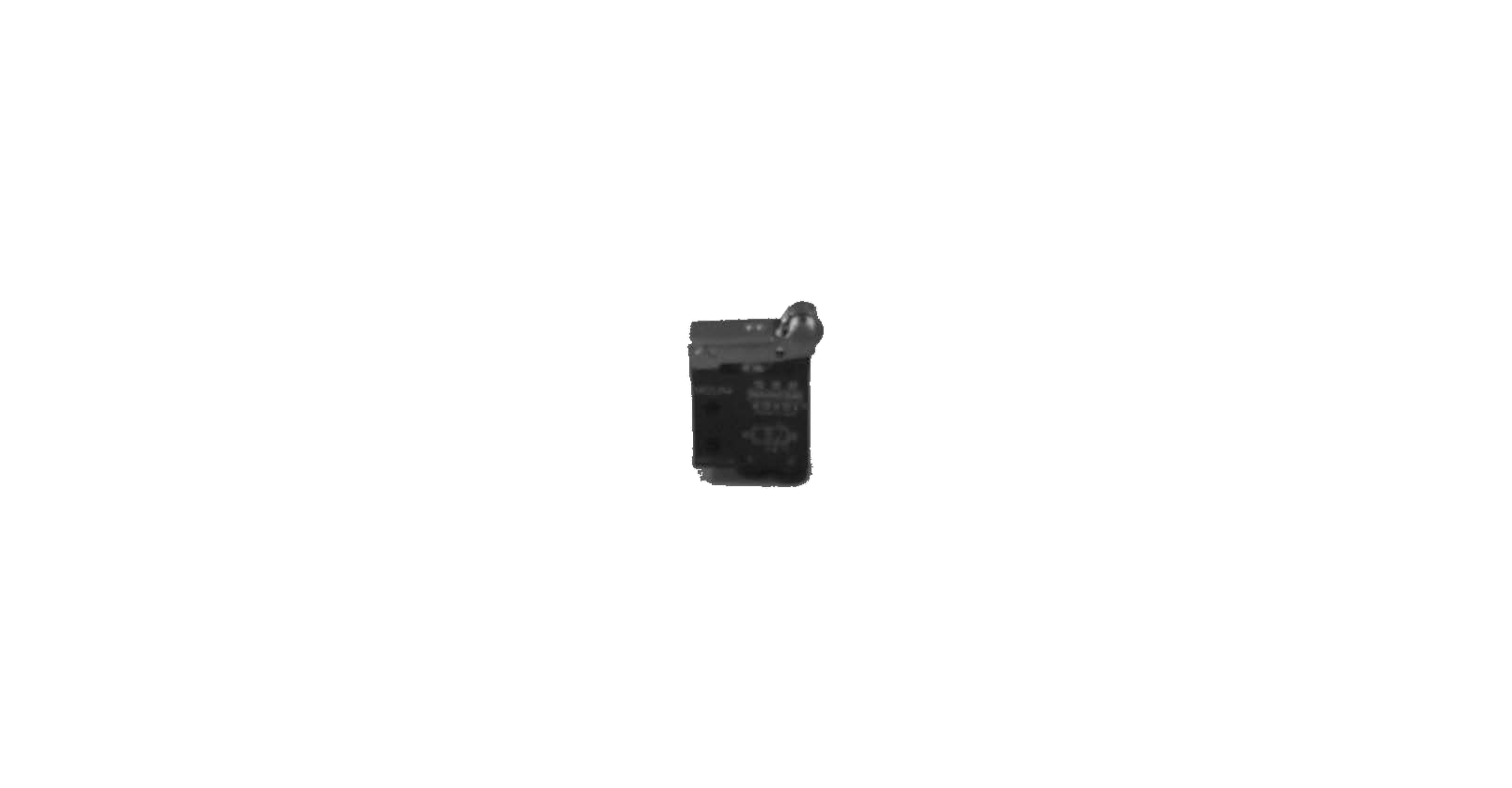

Waircom MCLR4 - Series M 3/2 N.C. Roller lever Mechanical Valve (Ø4 bottom ported)

The Waircom MCLR4 is a high-performance 3/2 N.C. mechanical valve from the rugged Series M range. Engineered for reliable micro-pneumatic control via a mechanical Roller actuator, this compact valve requires a 7 N actuation force to deliver an efficient flow rate of 83 Nl/min. The structural assembly consists of an anodized aluminium alloy body paired with durable nbr seals. Standard fluid connections are optimized via Ø4 bottom ported configurations, supporting stable system pressure ranges between 2 – 10 bar.
