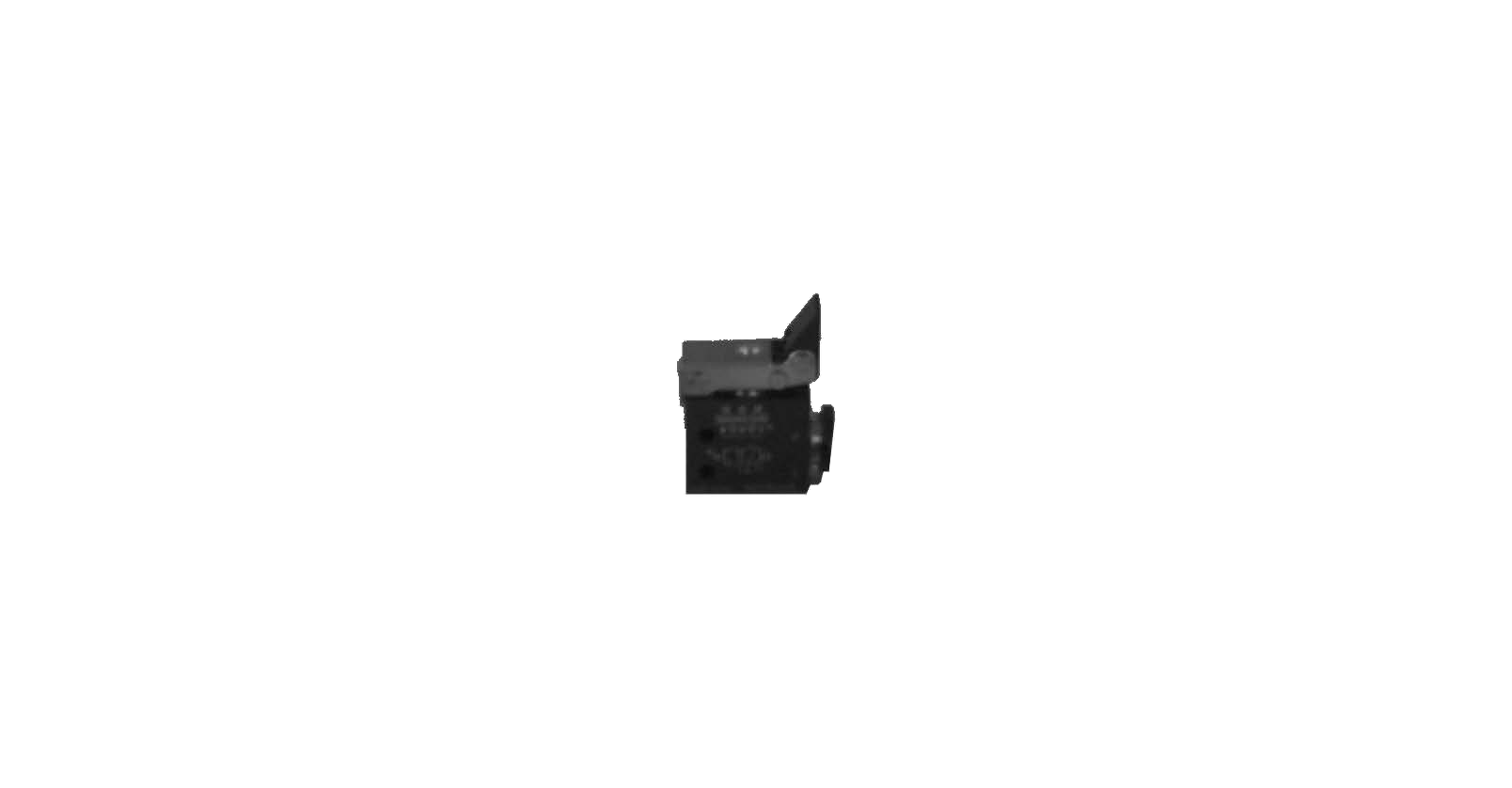

Waircom MAT4 - Series M 3/2 N.O. Tapper Mechanical Valve (Ø4 bottom ported)

Waircom MAT4 - Series M 3/2 N.O. Tapper Mechanical Valve (Ø4 bottom ported)

SKUMAT4BrandWaircom
AED 65.00
AED 65.00
Sale Sold out
Shipping calculated at checkout.

In stock

The Waircom MAT4 is a high-performance 3/2 N.O. mechanical valve from the rugged Series M range. Engineered for reliable micro-pneumatic control via a mechanical Swivel Lever actuator, this compact valve requires a 7 N actuation force to deliver an efficient flow rate of 83 Nl/min. The structural assembly consists of an anodized aluminium alloy body paired with durable nbr seals. Standard fluid connections are optimized via Ø4 bottom ported configurations, supporting stable system pressure ranges between 2 – 10 bar.

View full details
  • Brand: Waircom
  • Series: Series M
  • Function: 3/2 N.O.
  • Control Type: Tapper
  • Actuator Type: Swivel Lever
  • Port Size: Ø4 bottom ported
  • Nominal Bore: Ø2.5 mm
  • Actuation Force: 7 N at 6 bar
  • Flow Rate: 83 Nl/min at 6 bar
  • Body Material: Anodized aluminium alloy
  • Seals: NBR
  • Operating Pressure: 2 – 10 bar
  • Operating Temperature: 0 – +60 (–20 with dry air) °C
  • ATEX Available: Yes
