• Schmersal - M 687-11-3-8R
1 1

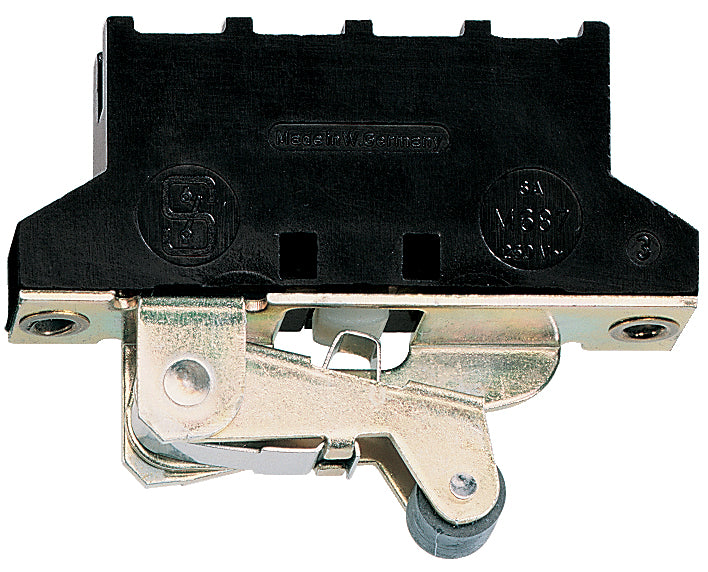

M 687-11-3-8R Schmersal Roller plunger 8R Thermoplastic Screw or spade terminals Limit Switch Change-over contact with double break with two separated contact bridges

M 687-11-3-8R Schmersal Roller plunger 8R Thermoplastic Screw or spade terminals Limit Switch Change-over contact with double break with two separated contact bridges

SKUM 687-11-3-8RBrandSchmersal
AED 222.00
AED 222.00
Sale Sold out
Shipping calculated at checkout.

The Schmersal M 687-11-3-8R is a reliable industrial limit switch designed with a roller plunger 8r actuator. Engineered for durability, it features a thermoplastic housing to withstand demanding environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Schmersal
  • Actuator Type: Roller plunger 8R
  • IP Rating: IP00
  • Maximum Current: 6 A
  • Housing Material: Thermoplastic
  • Maximum AC Voltage: 250 V
  • Connection Type: Screw Or Spade Terminals
  • Series: M 687
  • Contact Type: Change-over contact with double break with two separated contact bridges
  • Maximum Operating Temperature: +120 °C
  • Standards Met: EN IEC 60947-5-1
  • Mechanical Life: 30,000,000 Operations
  • Operating Force: 4 N
